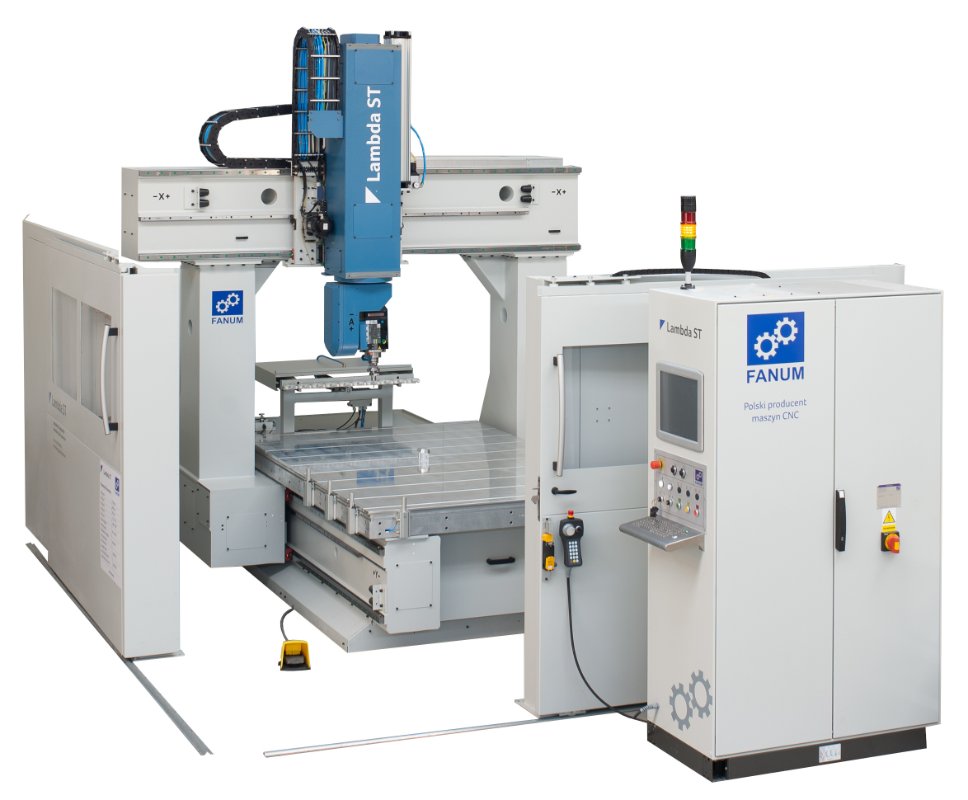

FANUM Lambda ST

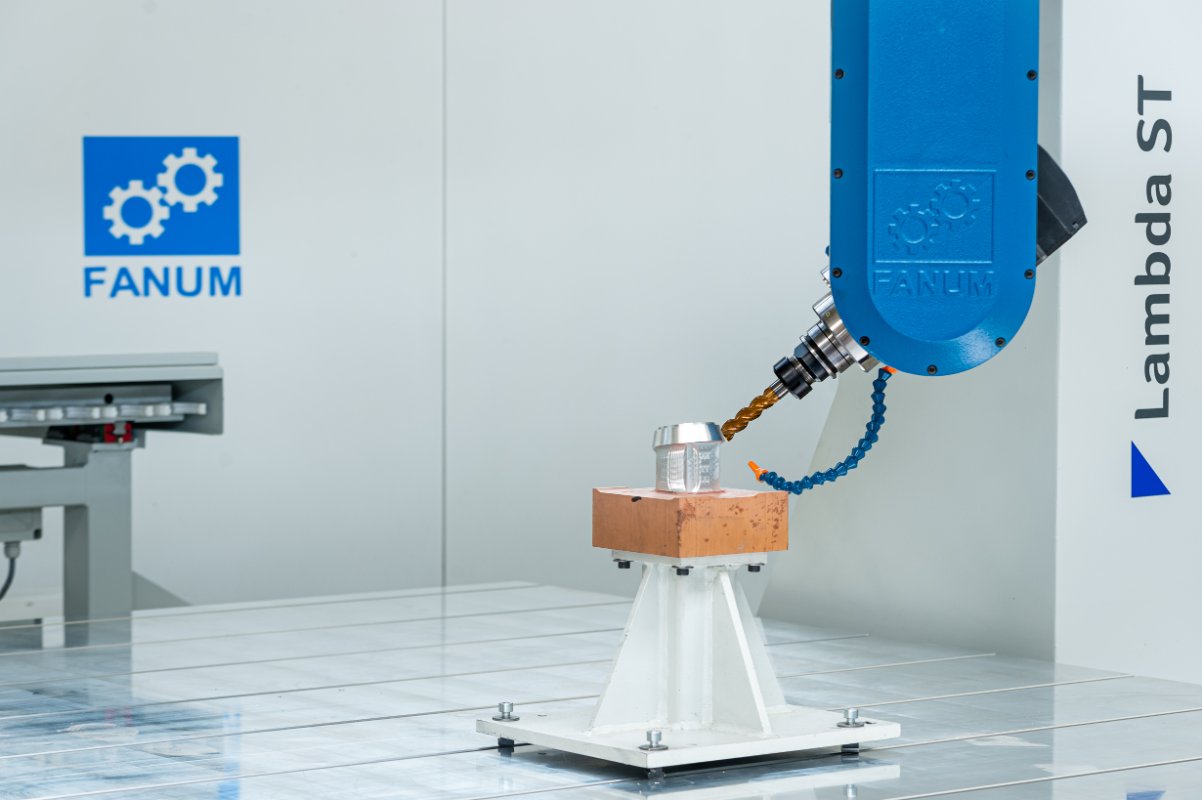

Lambda ST is a 6-axis interpolated machining centre designed for machining three-dimensional parts. This makes it an optimal solution for moulds and models made from composite materials, epoxy resins and aluminium.

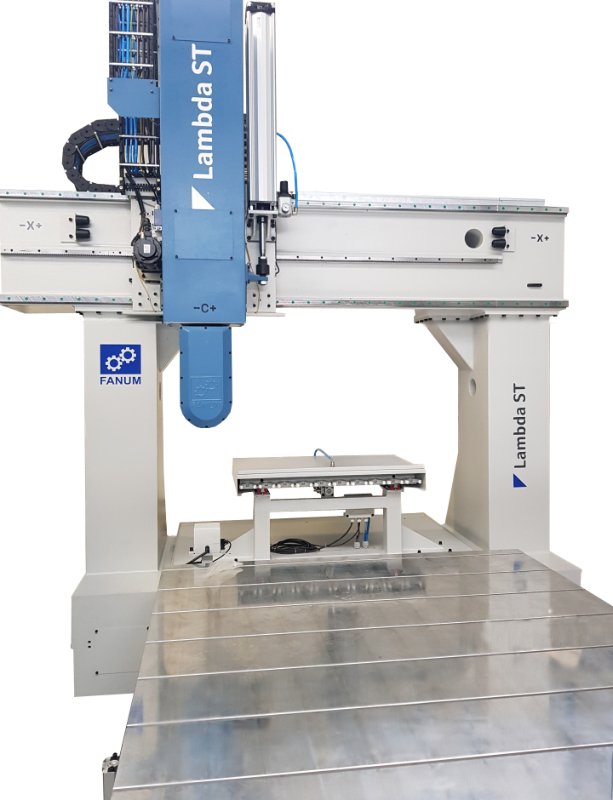

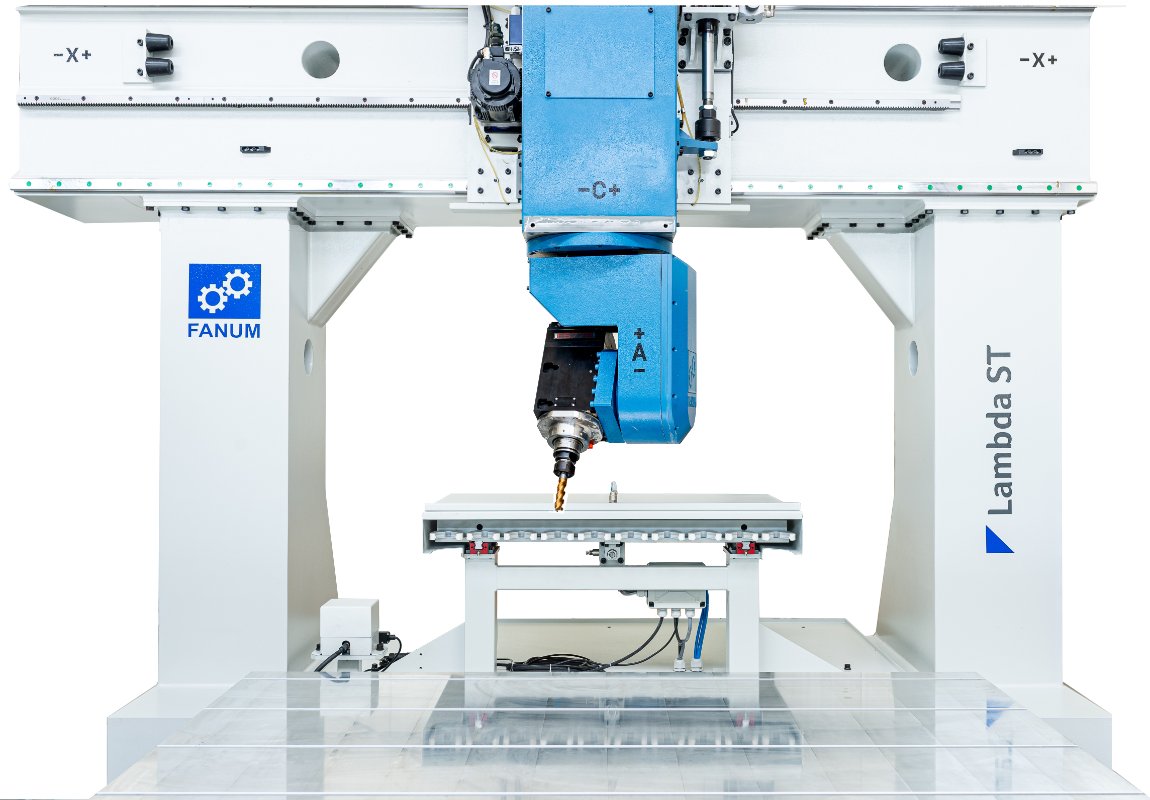

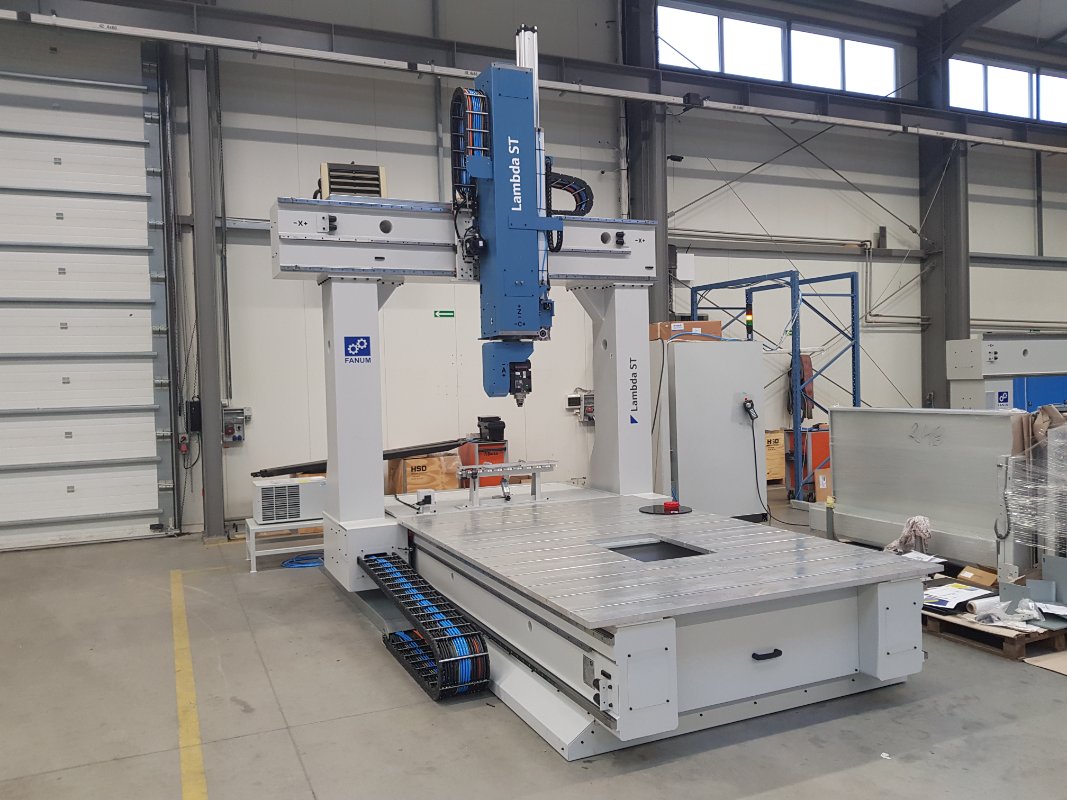

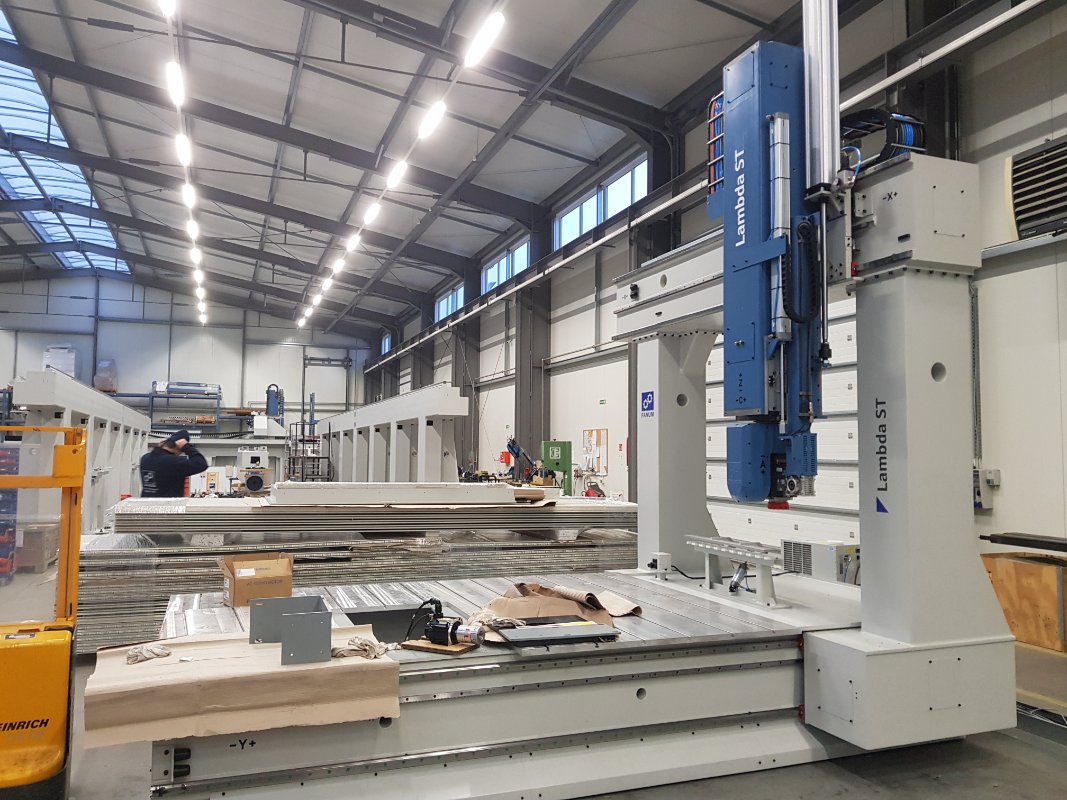

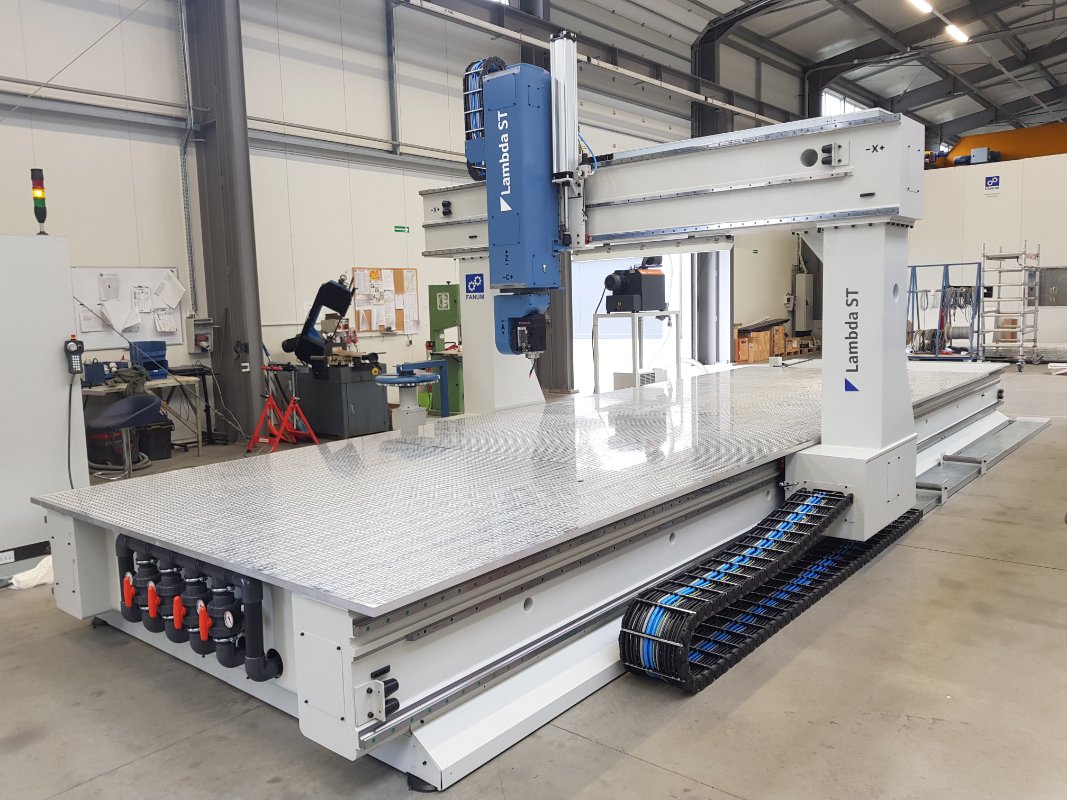

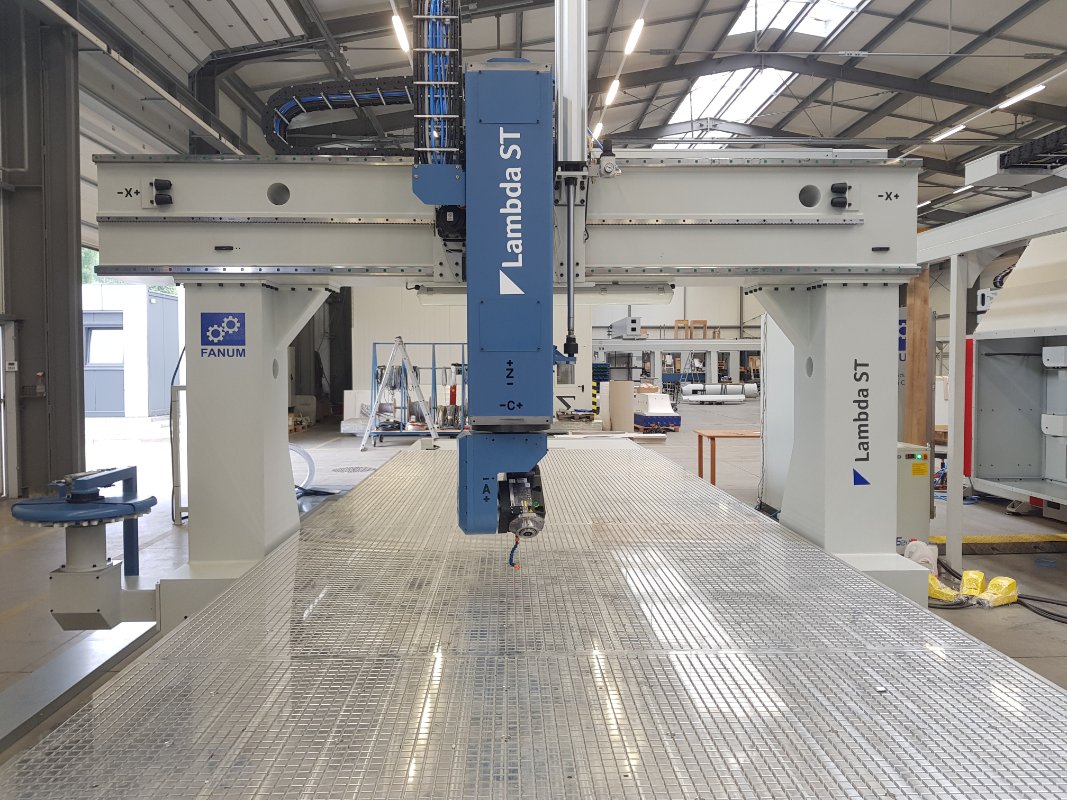

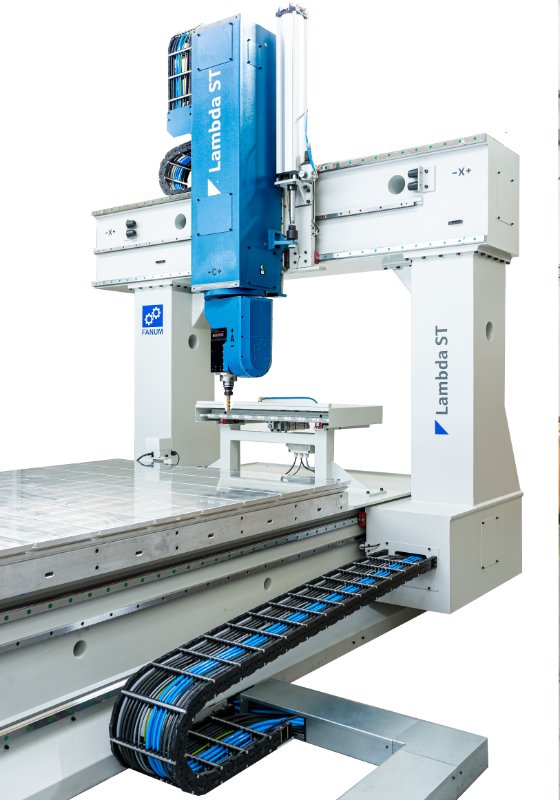

The machine tool uses a fixed table with a solid work surface, and a gantry for processing complex parts at speed and repeatable accuracy.
Contact the team
Configured to your specification
Lambda ST allows you to choose the necessary machining area, head type and mobile portal depending on your requirements.

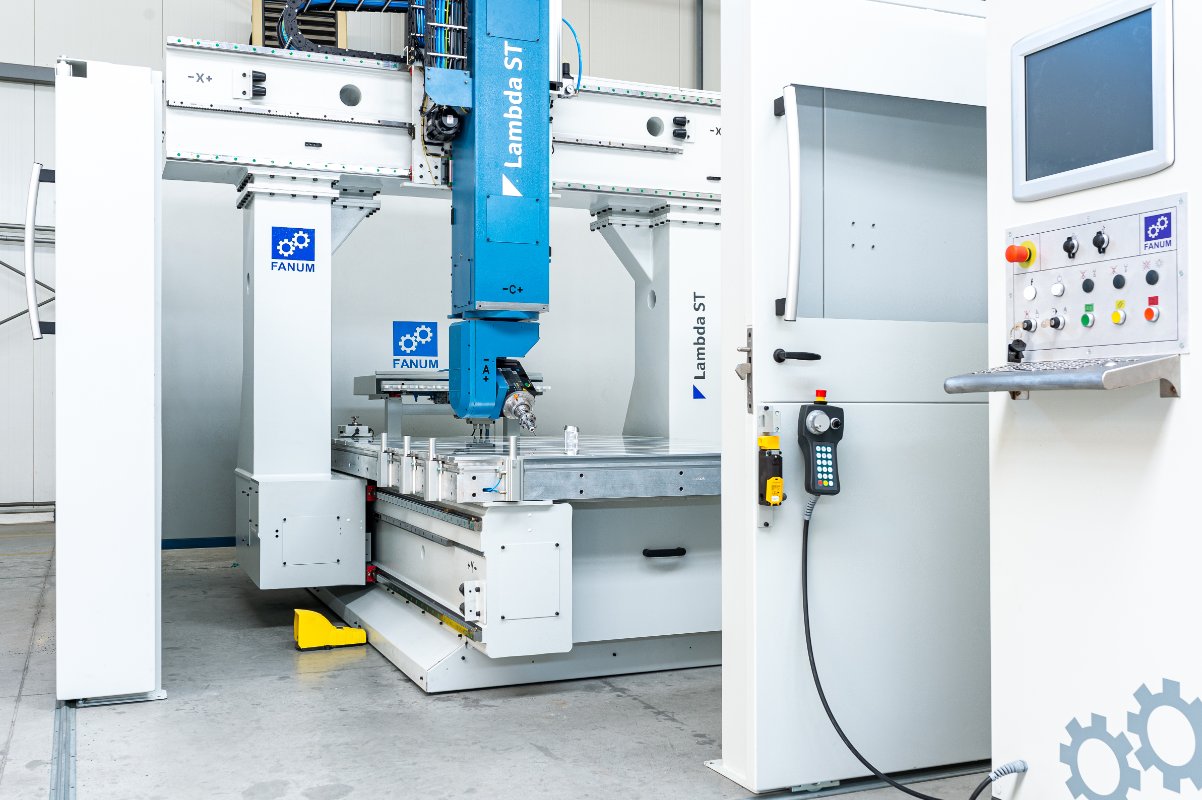

Improved safety
Protect your CNC machine operator with a safer, quieter and more comfortable operation.
Multiple accessories
The freedom to attach innovative workpiece clamps, measuring probes, vacuum pumps and tool cooling systems.
| Machining ranges | Axis Х* | 2100 (1700-3300) [mm] |
| Axis Y* | 3100 (2400-25000) [mm] | |
| Axis Z* | 1000 (700, 1000, 1300) [mm] | |

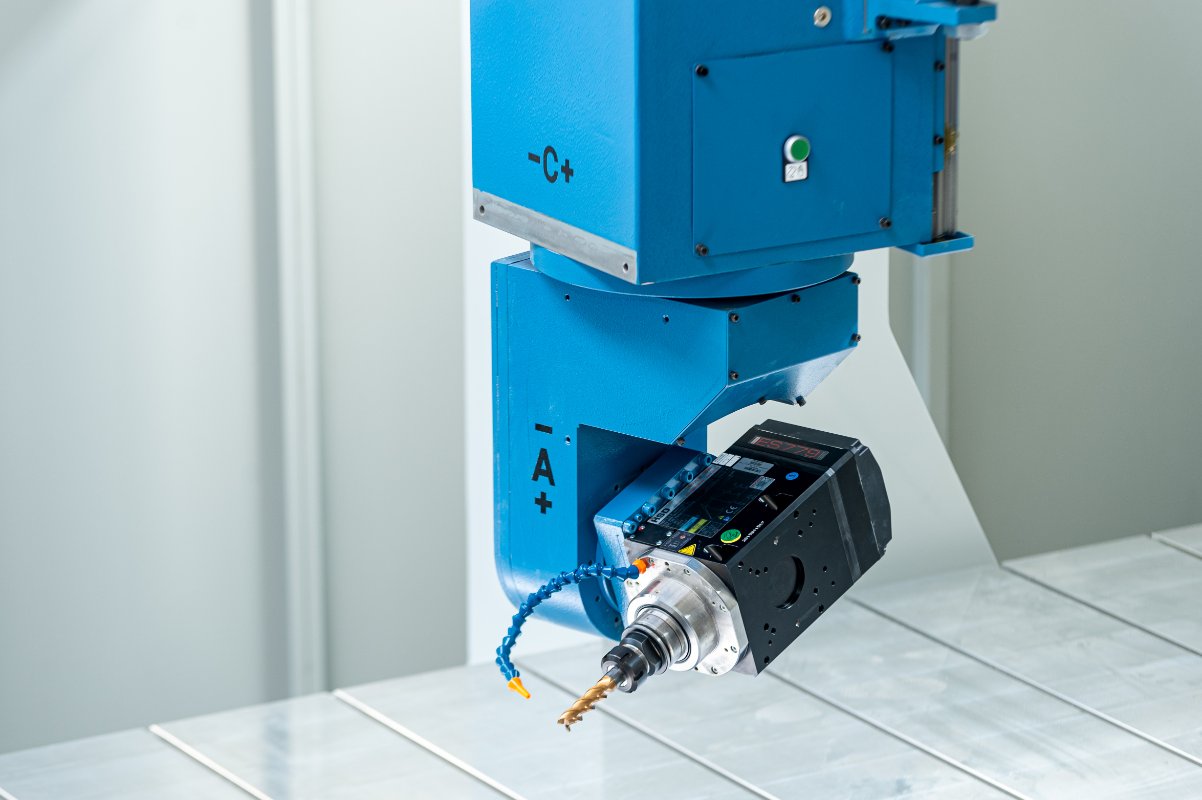

| Axis A | -115/+115 [°] | |
| Axis C | -360/+360 [°] | |
| Spindles | Spindle power | ES929 9 [kW] (S6) |
| ES779 12 [kW] (S6) | ||
| ES789 18 [kW] (S6) | ||
| Spindle rotation range | 0-24000 [rpm] | |
| * (–) - other range upon request |
