FANUM Lambda VTL
Lambda VTL offers an extremely large 6-axis solution, for when large parts machining demands exceptional accuracy and attention to detail.

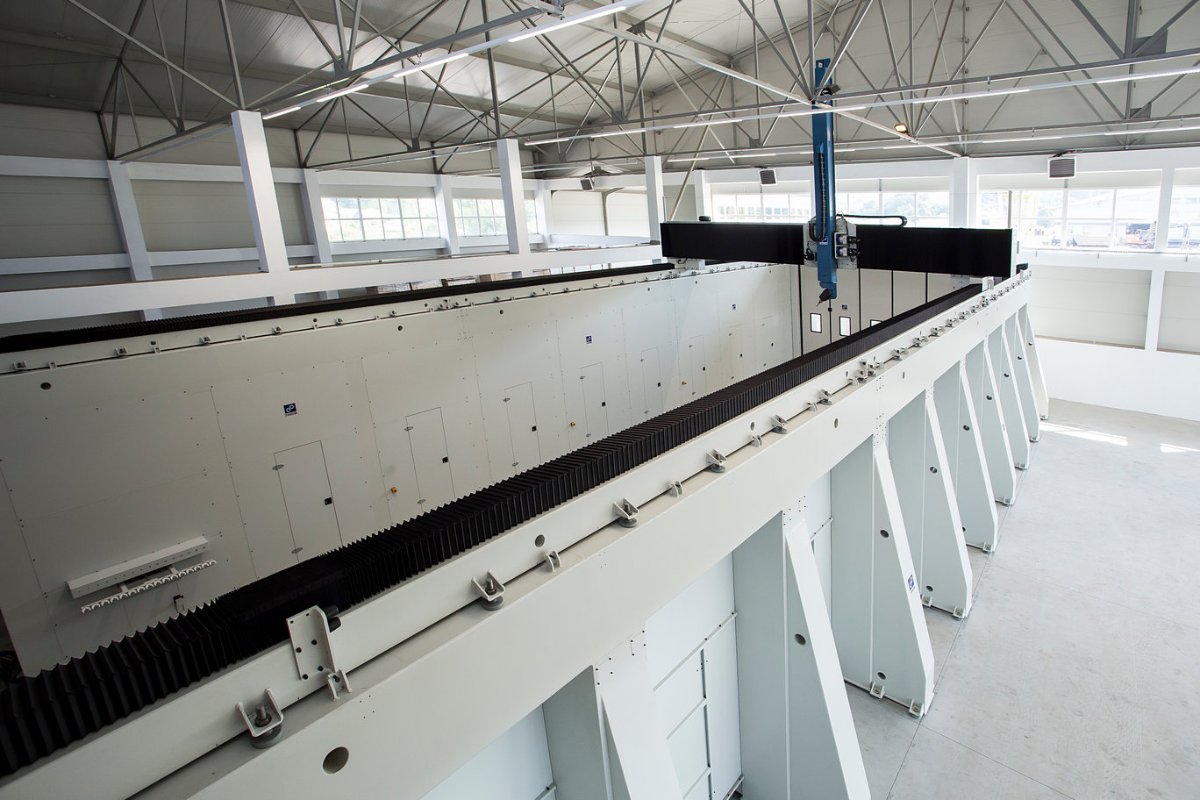

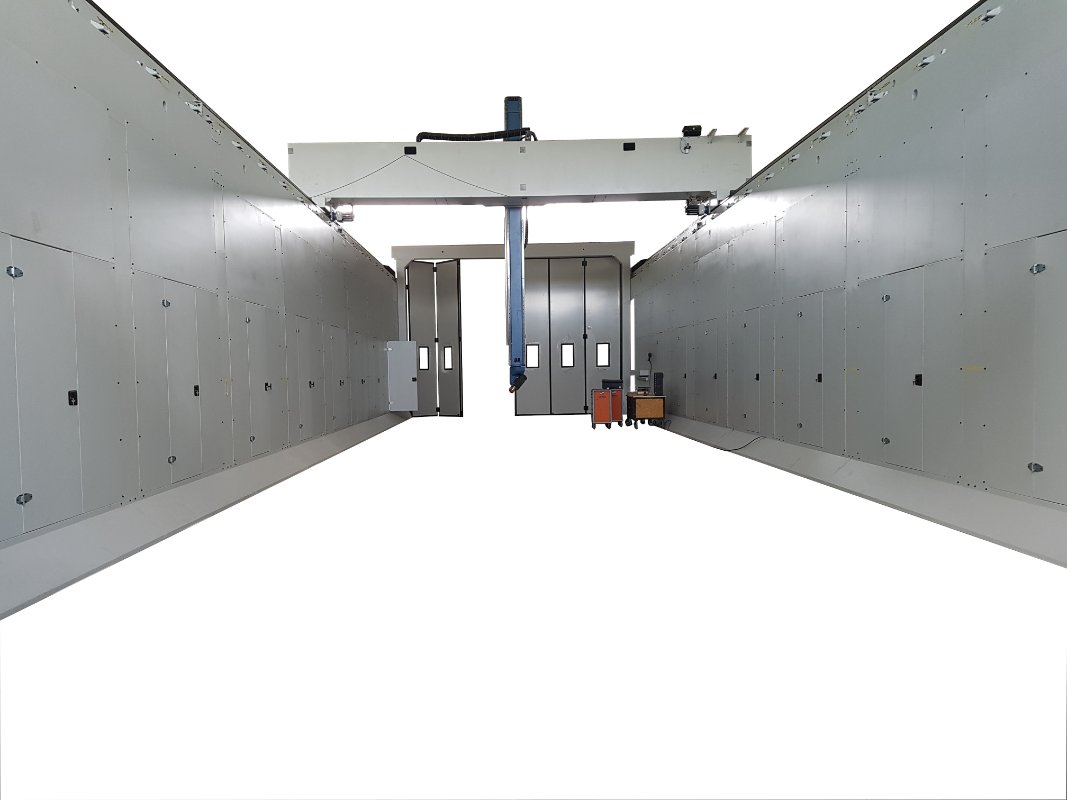

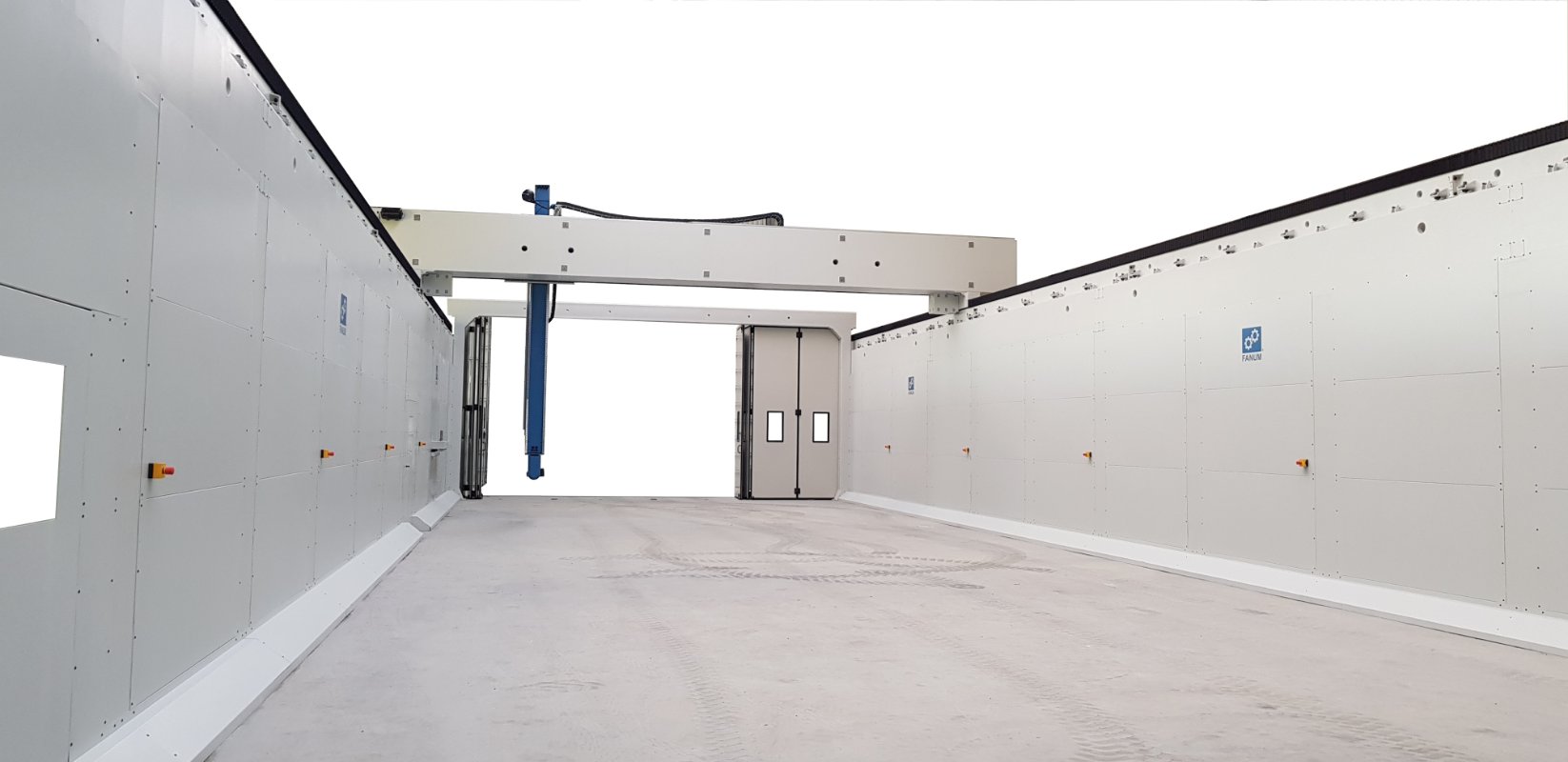

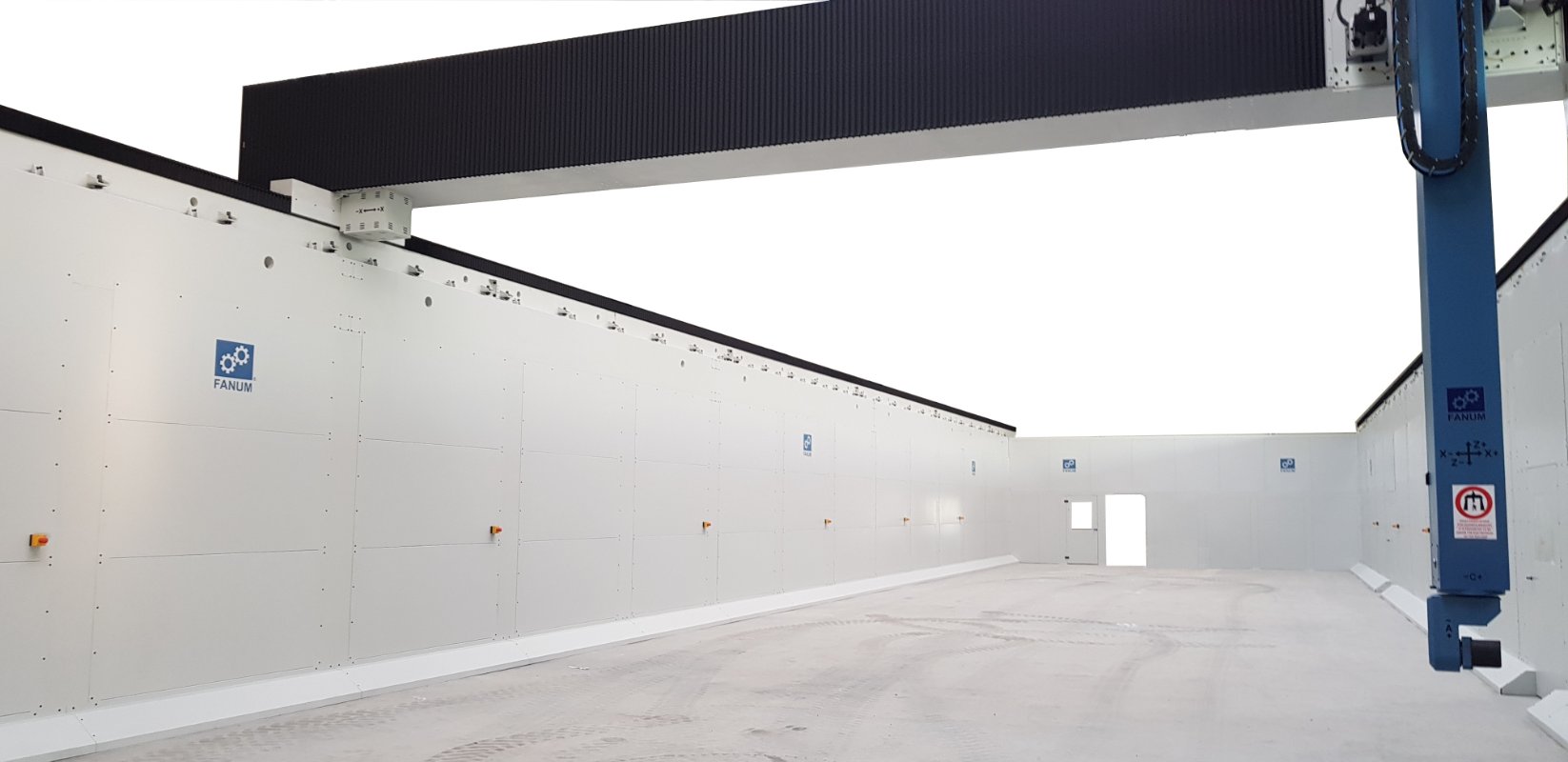

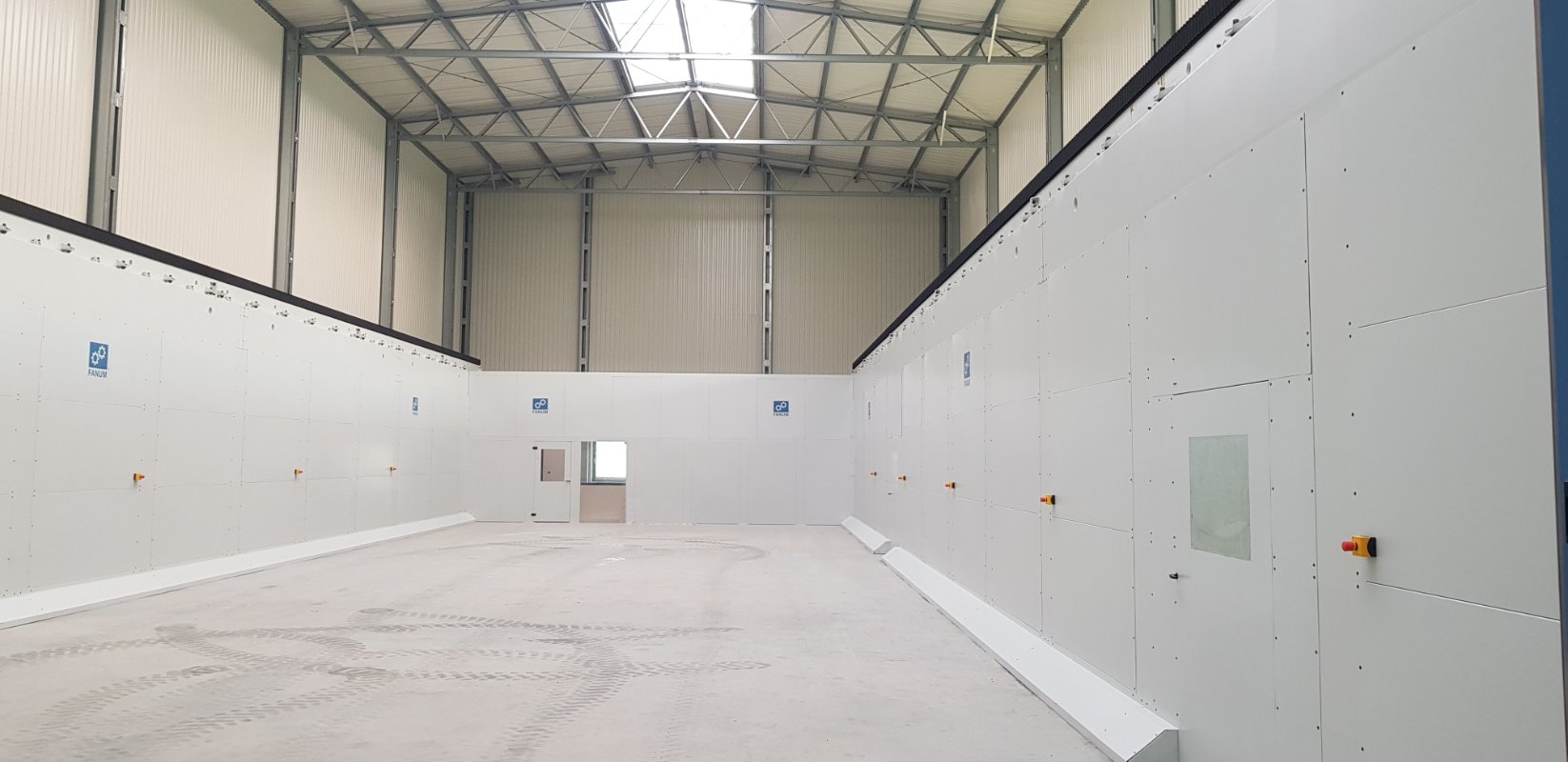

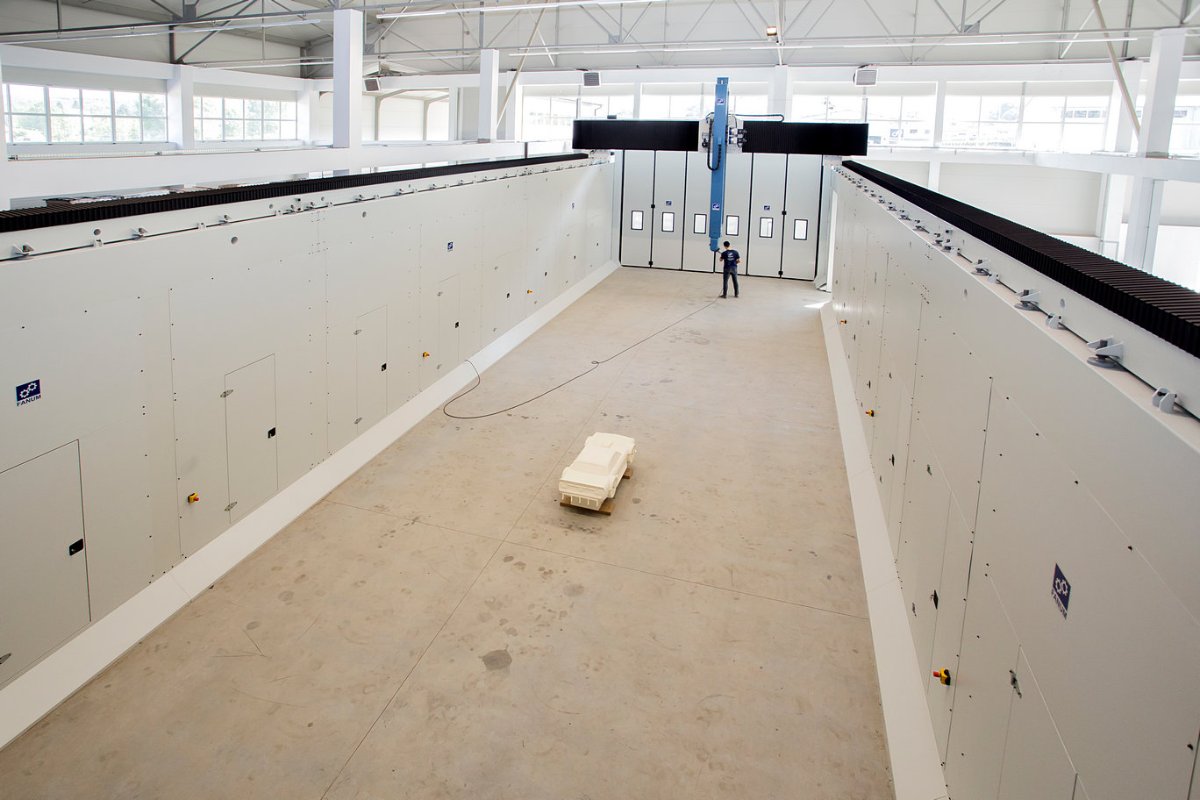

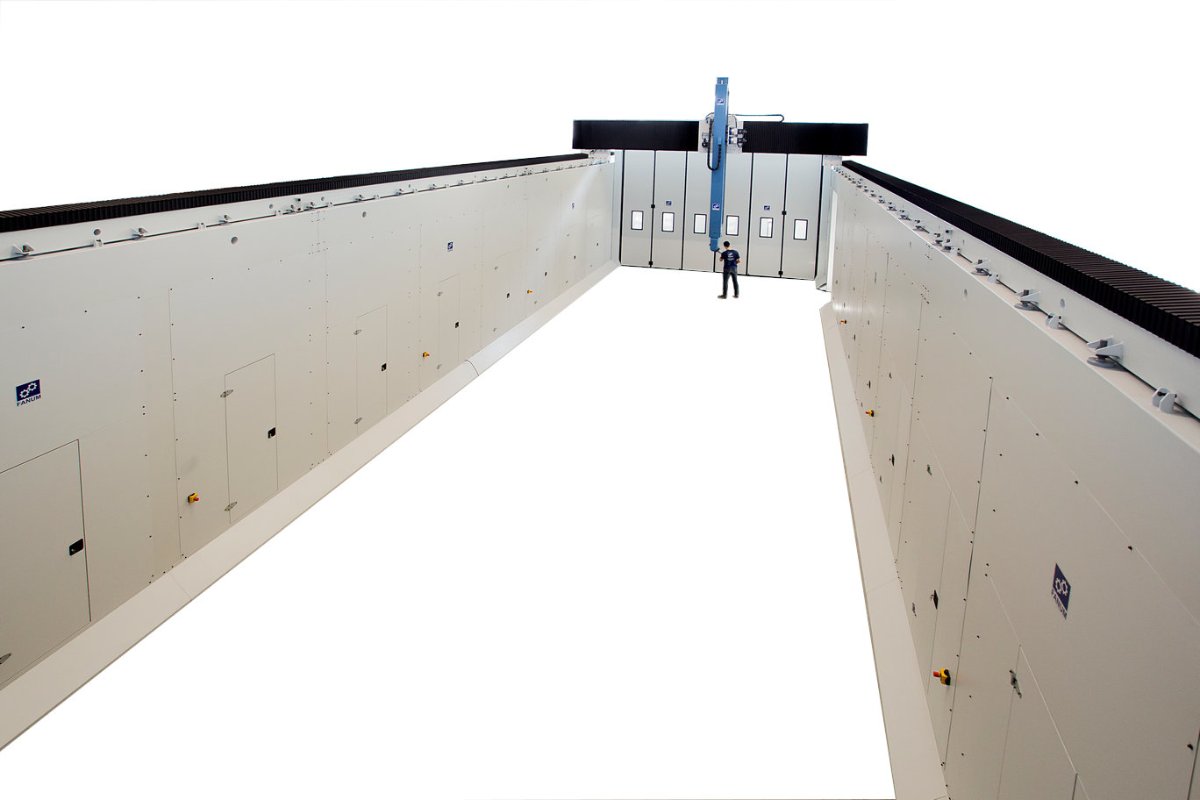

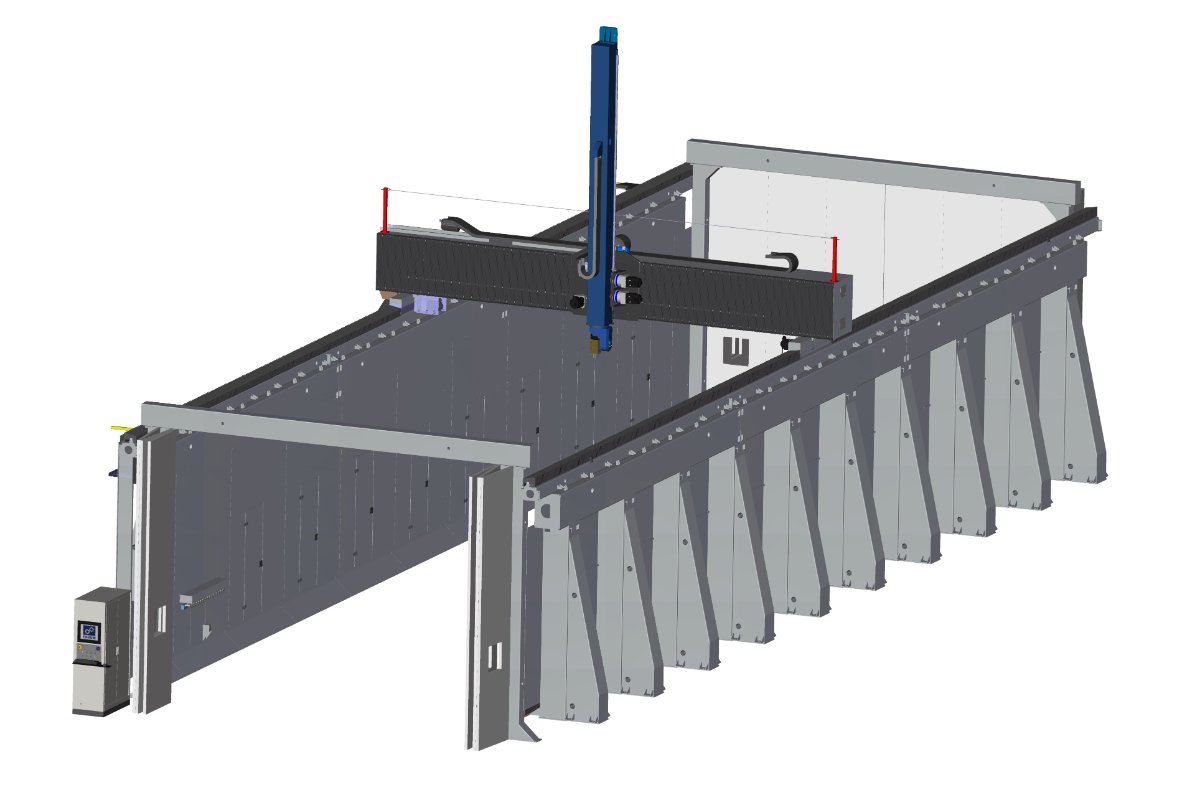

The largest machine in the range, it can help your business unlock many new manufacturing opportunities. The mobile bridge construction allows the maintenance of high system rigidity, combined with a vast working area inside the machine.
Contact the team
Super-size machining
Our largest machine available, which is a staple of the boating industry where it allows for significantly faster processing.
Unmatched reliability
Lambda VTL is always ready to work – no matter the part or project size.
Quick tool exchange
The mobile tool magazine allows the machine to exchange them rapidly – shrinking downtime and increasing production efforts.
| Machining ranges | Axis X* | 4200-8500 [mm] |
| Axis Y* | 4000-31000 [mm] | |
| Axis Z* | 2800-5000 [mm] | |
| Axis A | -115/+115 [°] | |
| Axis C | -360/+360 [°] | |
| Spindles | Spindle power | ES779 12 [kW] (S6) |
| ES789 18 [kW] (S6) | ||
| Spindle rotation range | 0-24000 [rpm] | |
| * (–) - other range upon request |
