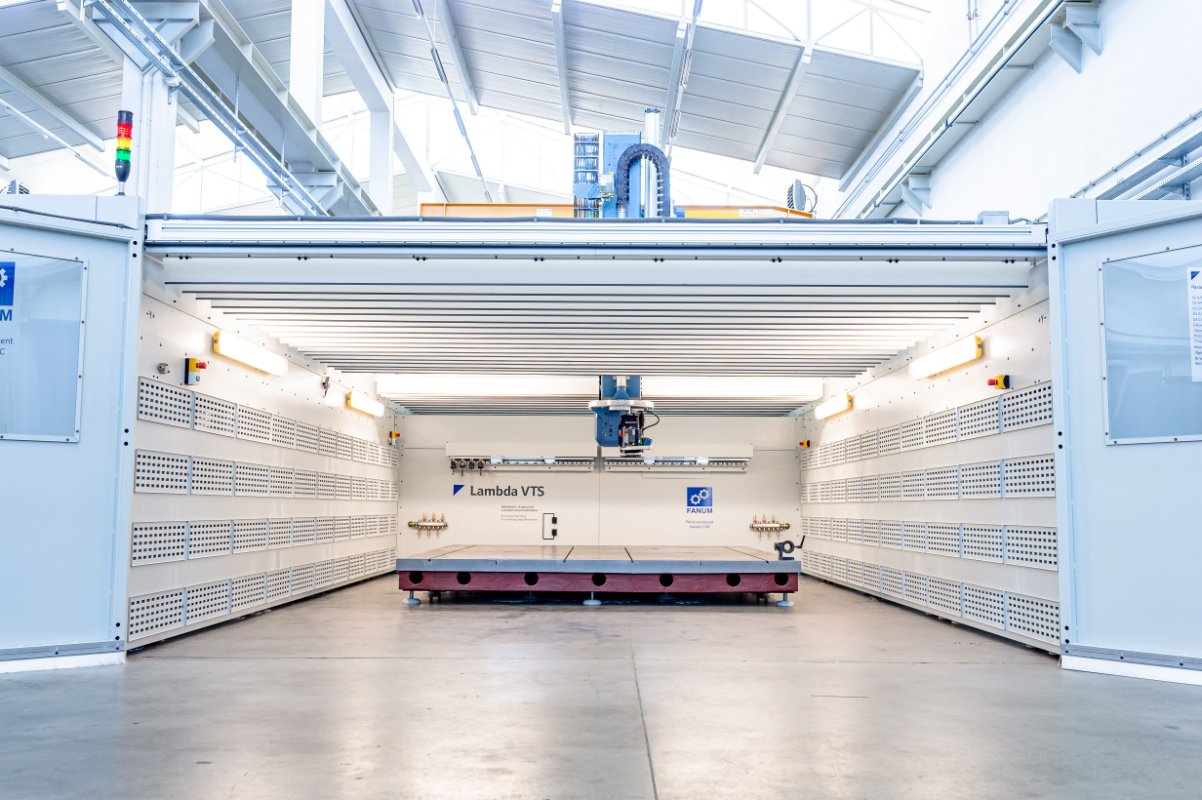

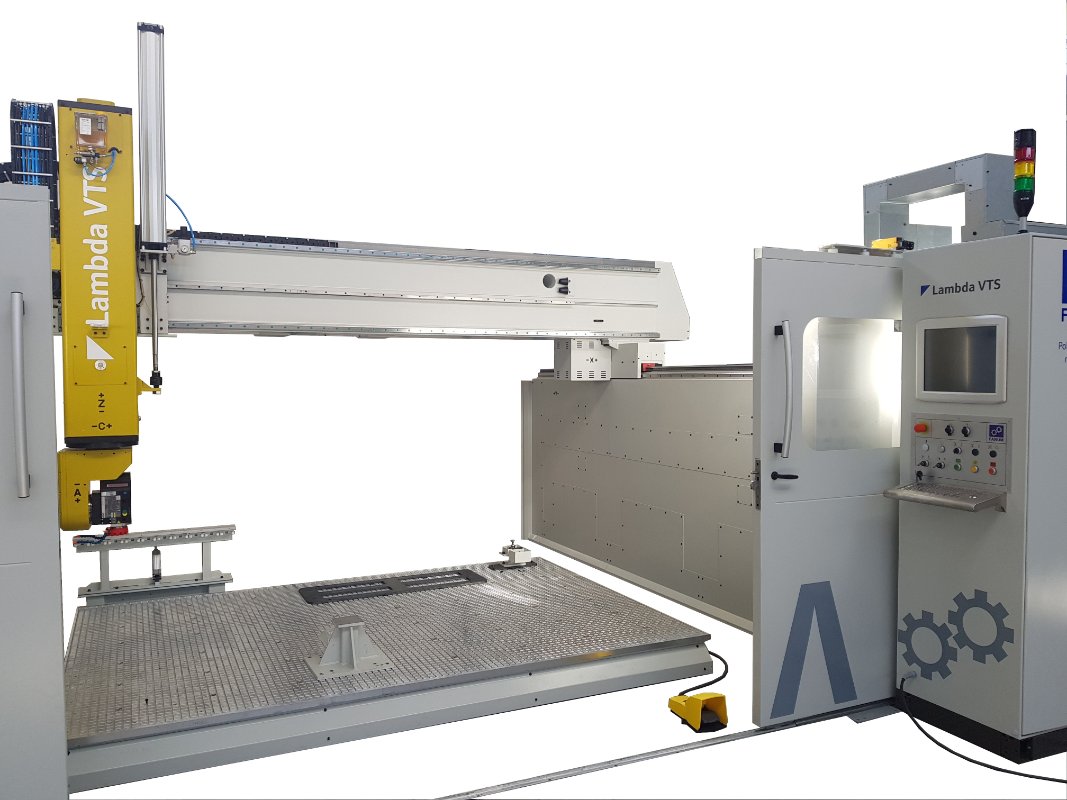

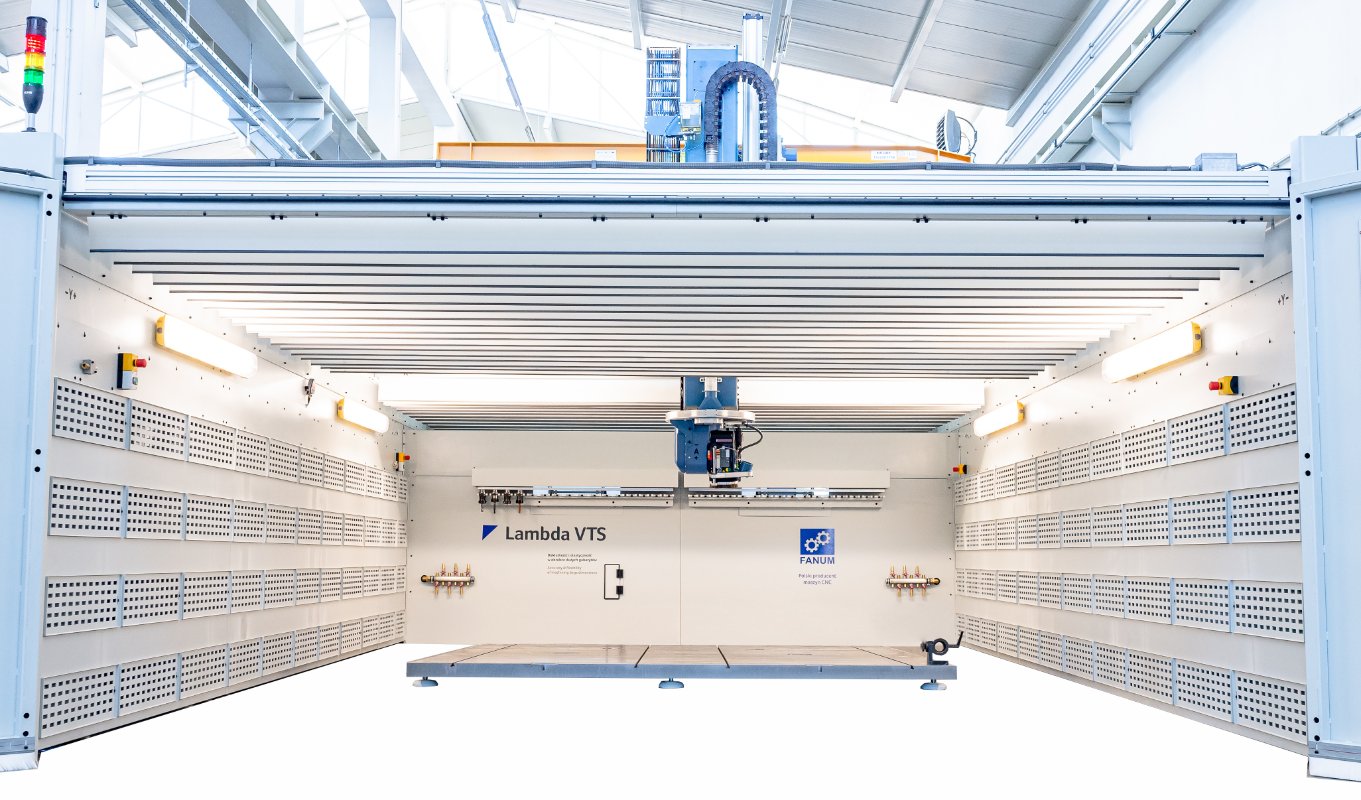

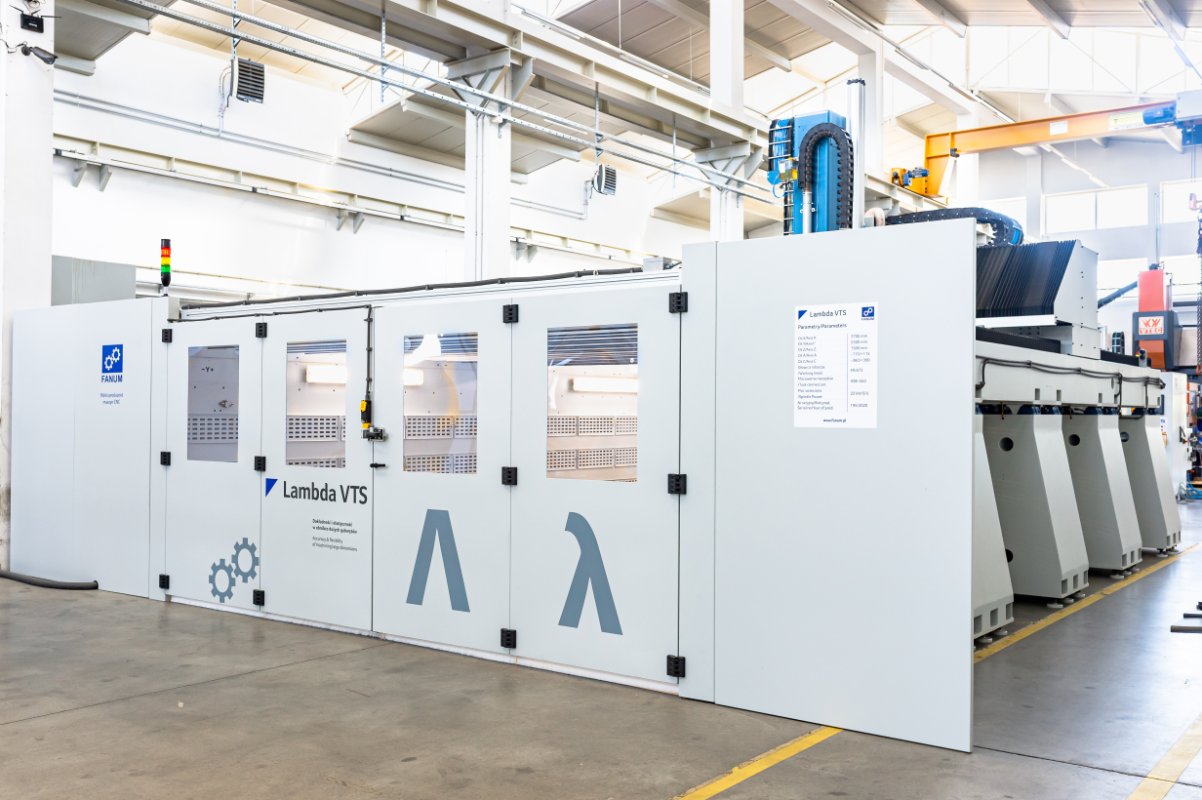

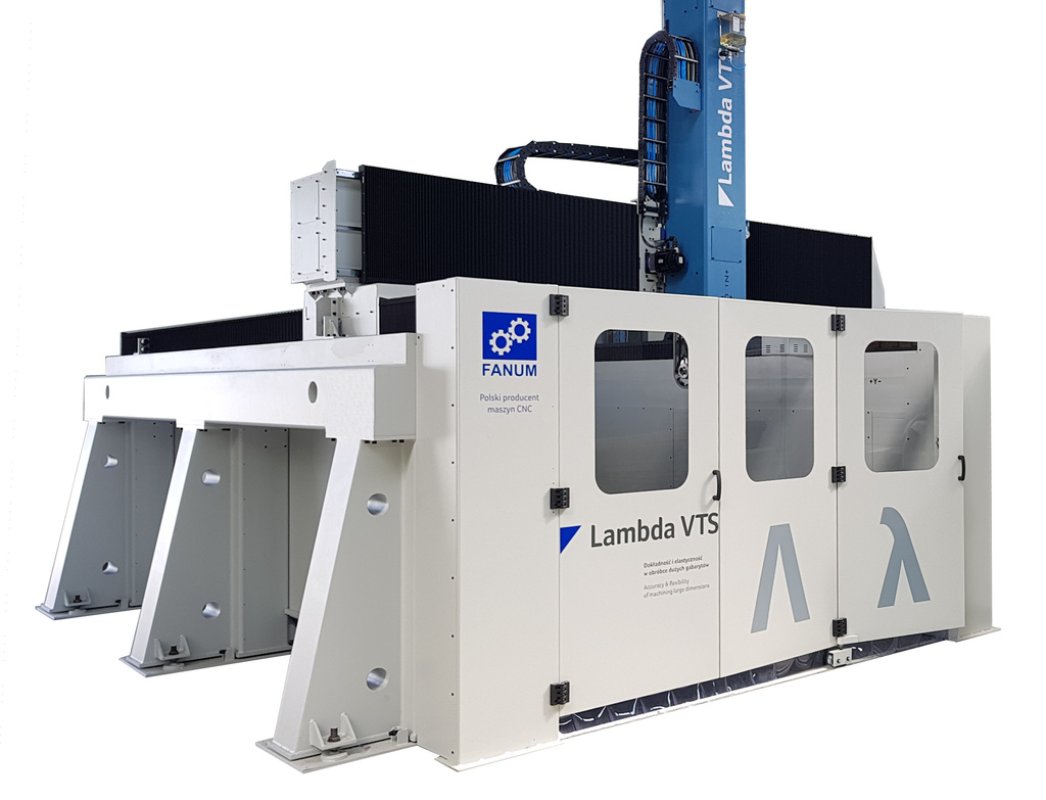

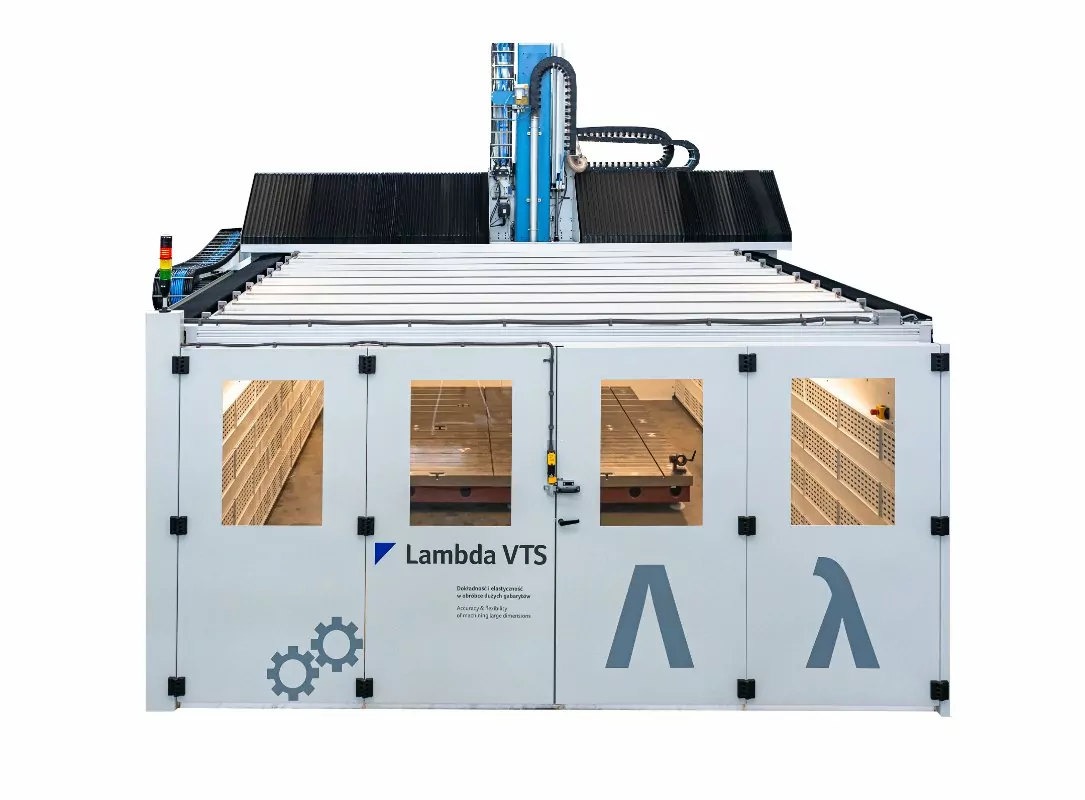

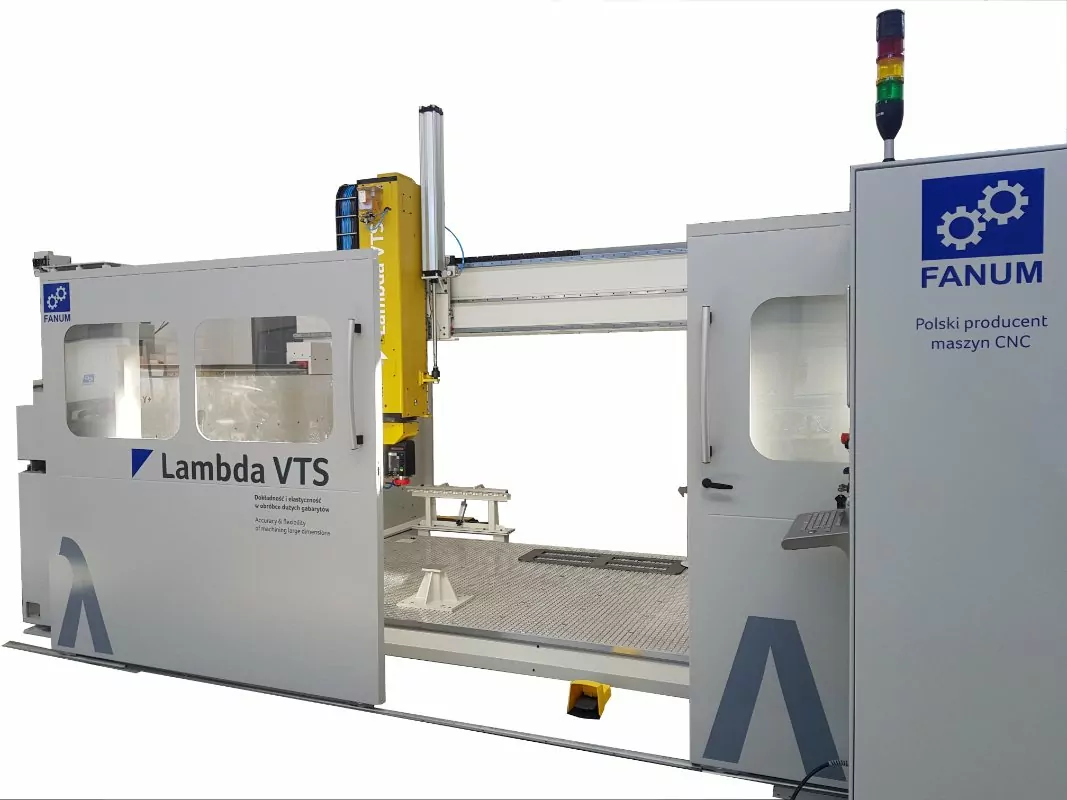

FANUM Lambda VTS

Lambda VTS delivers a universal 5-axis machining centre that’s always up for the task at hand. Designed with bulky, complicated components in mind, it is frequently chosen by the boating and yachting industries.

A rigid steel construction and double-sized drive system ensure exceptional machining precision and accuracy across the entire working area of the machine.

Contact the team

Automatic tool exchange
Many specialist measuring probes, tool magazines and workpiece assembly systems are available to meet your tooling demands.

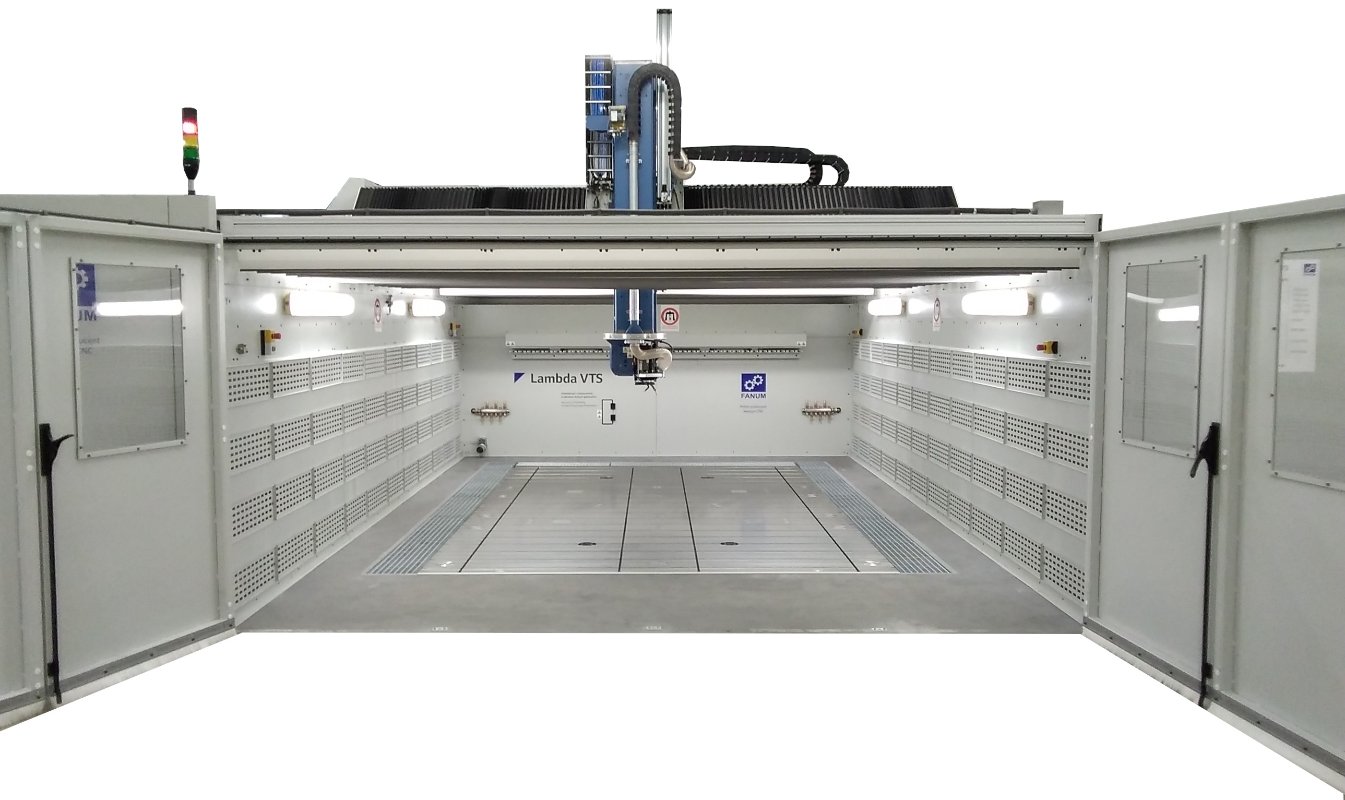

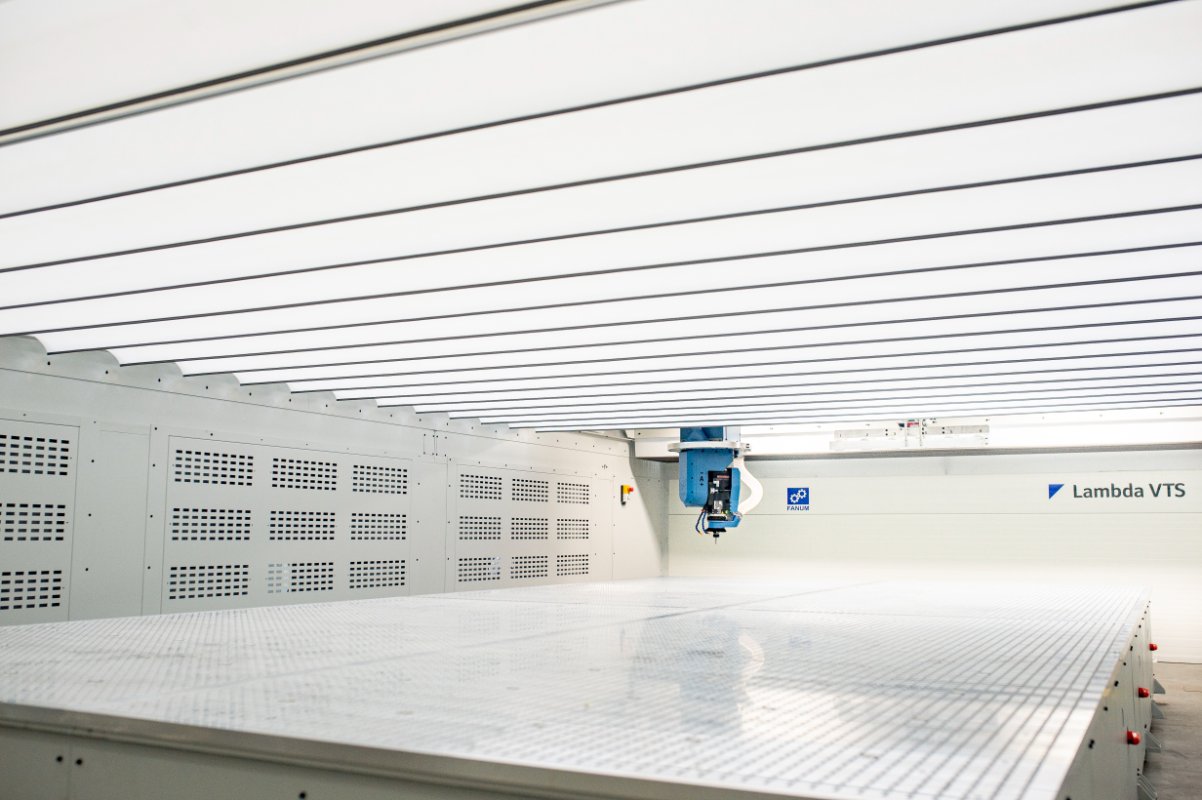

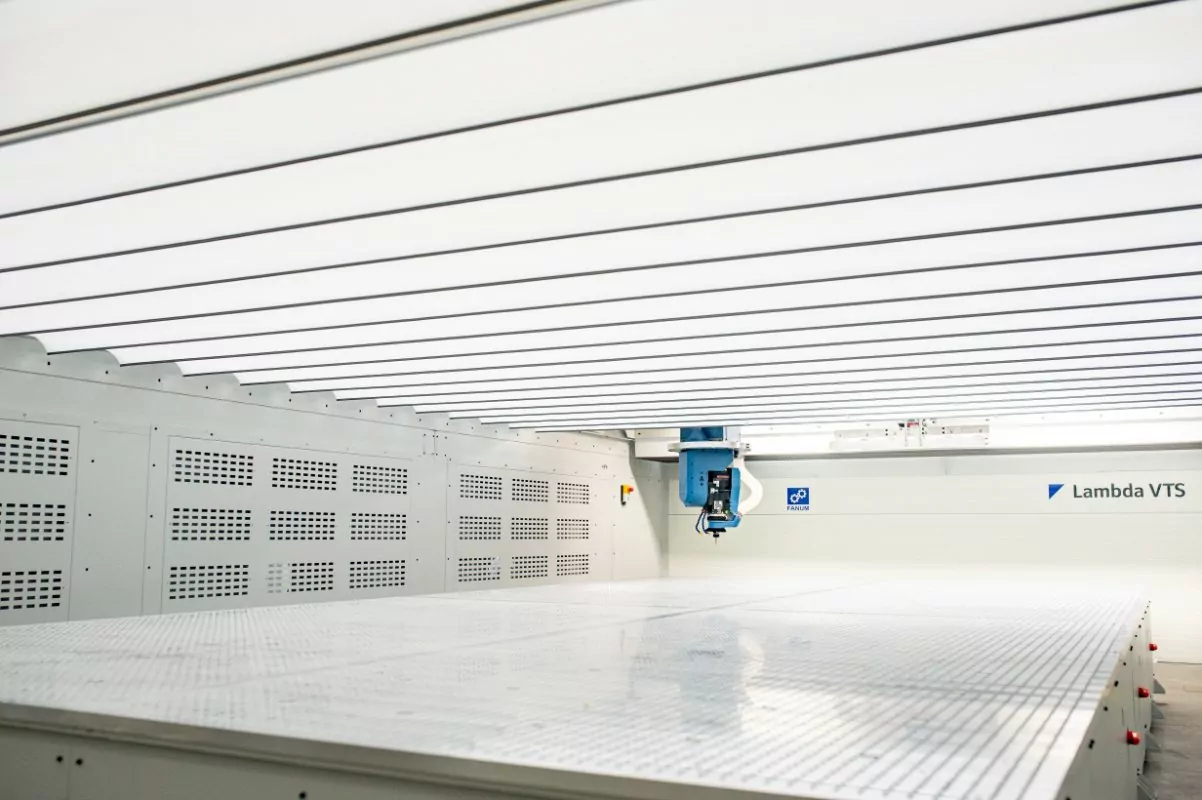

Machine large dimensions
Enjoy high levels of accuracy and repeatability, even when working across components and workpieces of considerable size and scale.

Configured to your specification

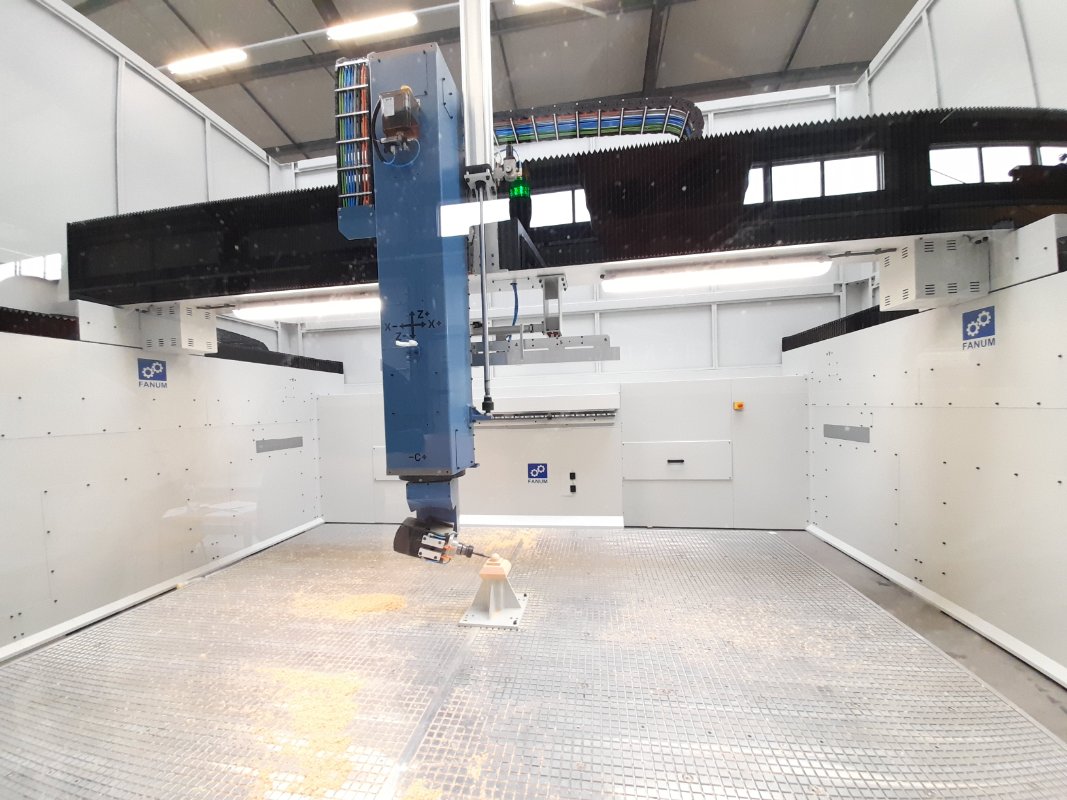

Lambda VTS allows you to choose the necessary machining area, head type and mobile portal depending on your requirements.

Machining ranges Axis X* 2600-4200 [mm]
Axis Y* 3000-31000 [mm]
Axis Z* 1300 [mm]
Axis A -115/+115 [°]
Axis C -360/+360 [°]

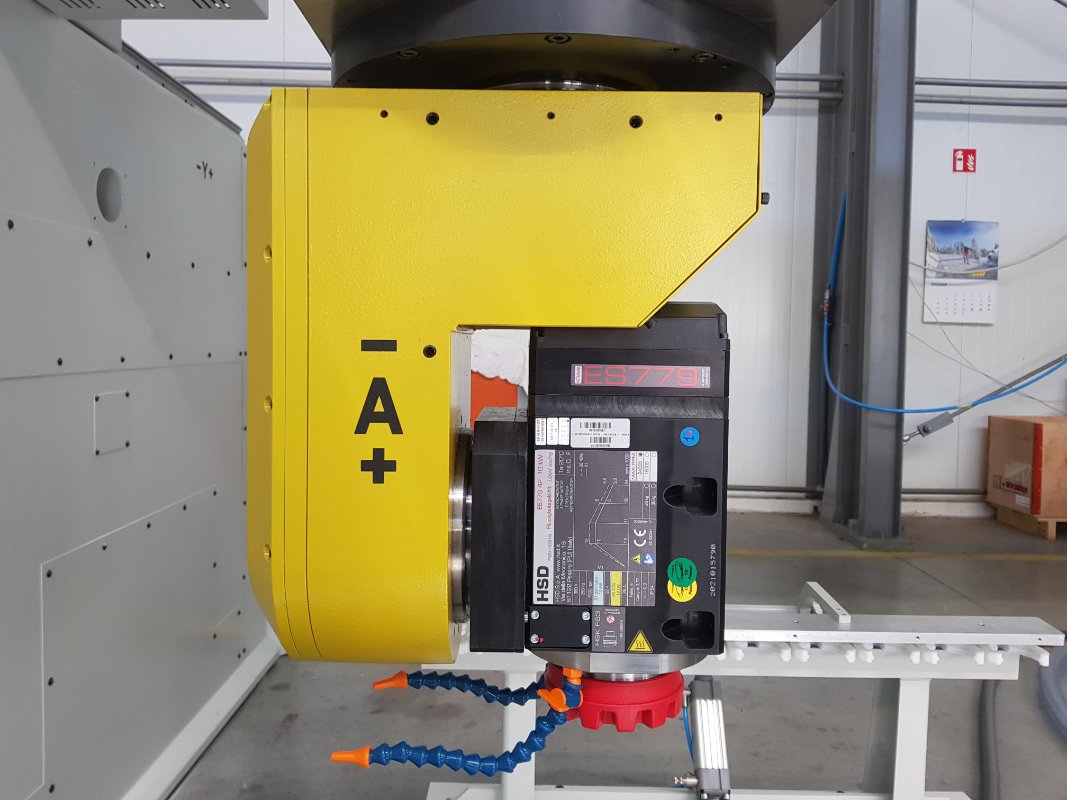

Spindles Spindle power ES779 12 [kW] (S6)
ES789 18 [kW] (S6)
ES510 35 [kW] (S6)
Spindle speed range 0-24000 [rpm]
Control unit Type Osai, Heidenhain
* (–) - other range upon request
