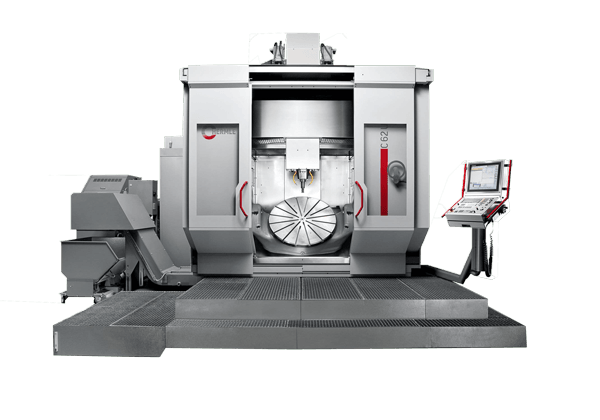

Insights into the Hermle C 62
- Workpieces up to 2500kg
- Designed for 5-axis/ 5-side machining
- Mill/ turn in a single clamping
- Fully integrated rotary technology
- Optimised footprint
Key Features
Traverse path | 1200 x 1300 x 900 mm | |
Body | dia. 1200 / H 900 | |
Collision circle | dia. 1400 mm | |
Max. vertical table clearance | 1100 mm | |
Speed | 9000/10000/12000/15000/18000 1/min | |
Rapid traverse linear X-Y-Z | 50 m/min | |
Swivelling rotary table | dia. 1350 x 1100 mm | |
Max. table load | 2500 kg |
