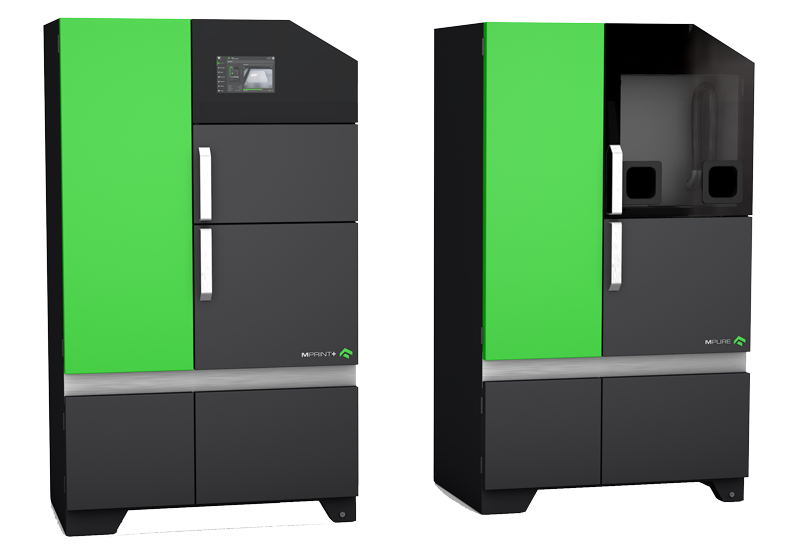

One Click Metal Bold Series

AM technology understandable to everyone and available with one click.

Combining straightforward planning and monitoring software with intelligently thought-out printing centres, the BOLDSERIES provides users of any experience with pain-free Laser Powder Bed production.

Combining MPRINT, MPREP, MONE and MPURE, the BOLDSERIES offers a holistic process chain.

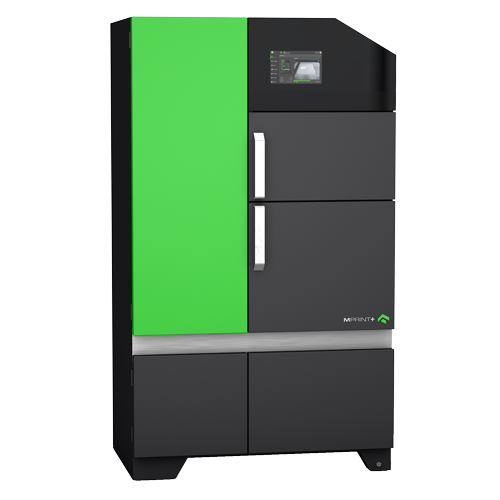

MPRINT+

Modular LPB printing machine featuring an innovative powder handling system that minimises direct contact with powder.

  • Powerful 200W fiber laser
  • Revolver with five powder cartridges
  • Simple HMI
  • Largest construction area in performance range
  • Greatly reduced direct contact with powder, protecting the health of operators and engineers
  • Lists present in the HMI ensure steps are never missed
  • Cartridge system is clearly labelled and recognised by the machine
  • Completed part is stored in a sealed chamber and is moved easily by trolly

Powder Supply

  • 5 supply cartridges
  • 250% oversupply of the build volume (at maximum capacity)

Process chamber

  • LPBF-process
  • X-profile powder application
  • 200W laser power (fiber)
  • 45µm focus diameter
  • up to 3000mm/s scanning speed

Build module

  • 150mm x 150mm x 150mm
  • 20-80µm layer height

Replaceable safe gas filter

Connection and consumption

  • Power supply: 230V/50-60Hz (US: 110V)
  • Fuse protection: 16A
  • Inert gas: Nitrogen

Dimensions and weight

  • Dimensions WxHxD: 1,1 x 1,9 x 0,79m
  • Weight: 440kg

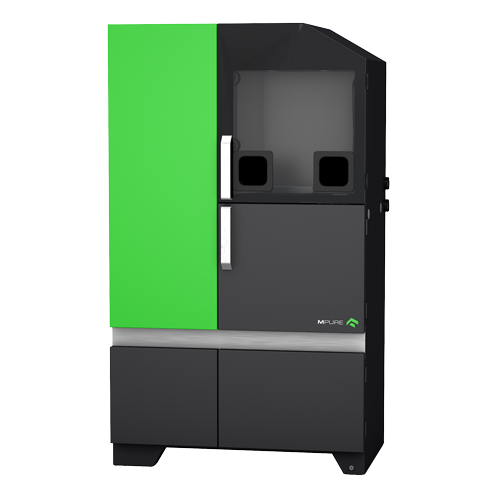

MPURE

2-in-1 unpacking and sieving station. Saves time, recycles powder efficiently and protects health.

  • Two post-processing functions contained in a compact form factor
  • Glove box for powder removal
  • Connector for external vacuum
  • Ultrasonic sieve
  • Bulk powder removal without direct contact
  • Separates oversized powder for disposal, saving time

Connection and consumption

  • Power supply: 230V/50-60Hz (US: 110V)
  • Fuse protection: 16A

Dimensions and weight

  • Dimensions BxHxT: 1,1 x 1,9 x 0,79m
  • Weight: 310kg

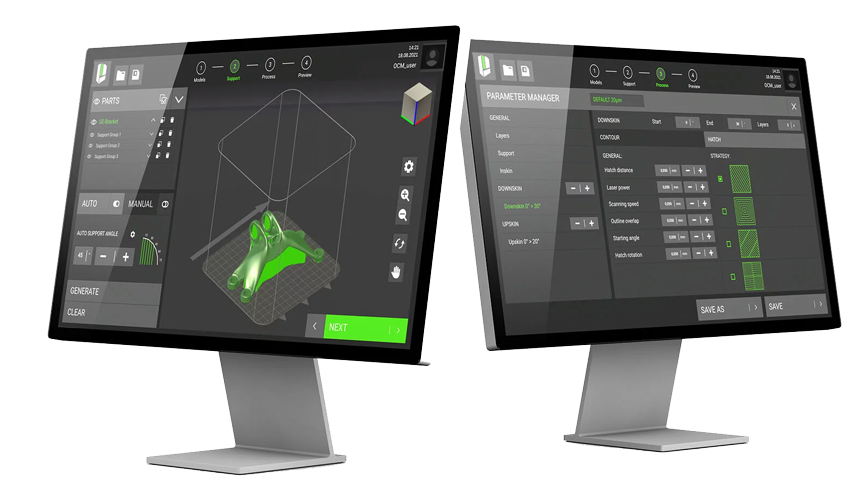

MPREP

Simple, attractively designed data preparation that is accessible for beginners and powerful for experts.

Features and benefits

  • Presets and automatic calculations take care of complex equations like supports, alignment and parameters
  • Data preparation in four easy steps
  • No additional software necessary
  • Free of unnecessary and confusing features

Simplified Data Preparation

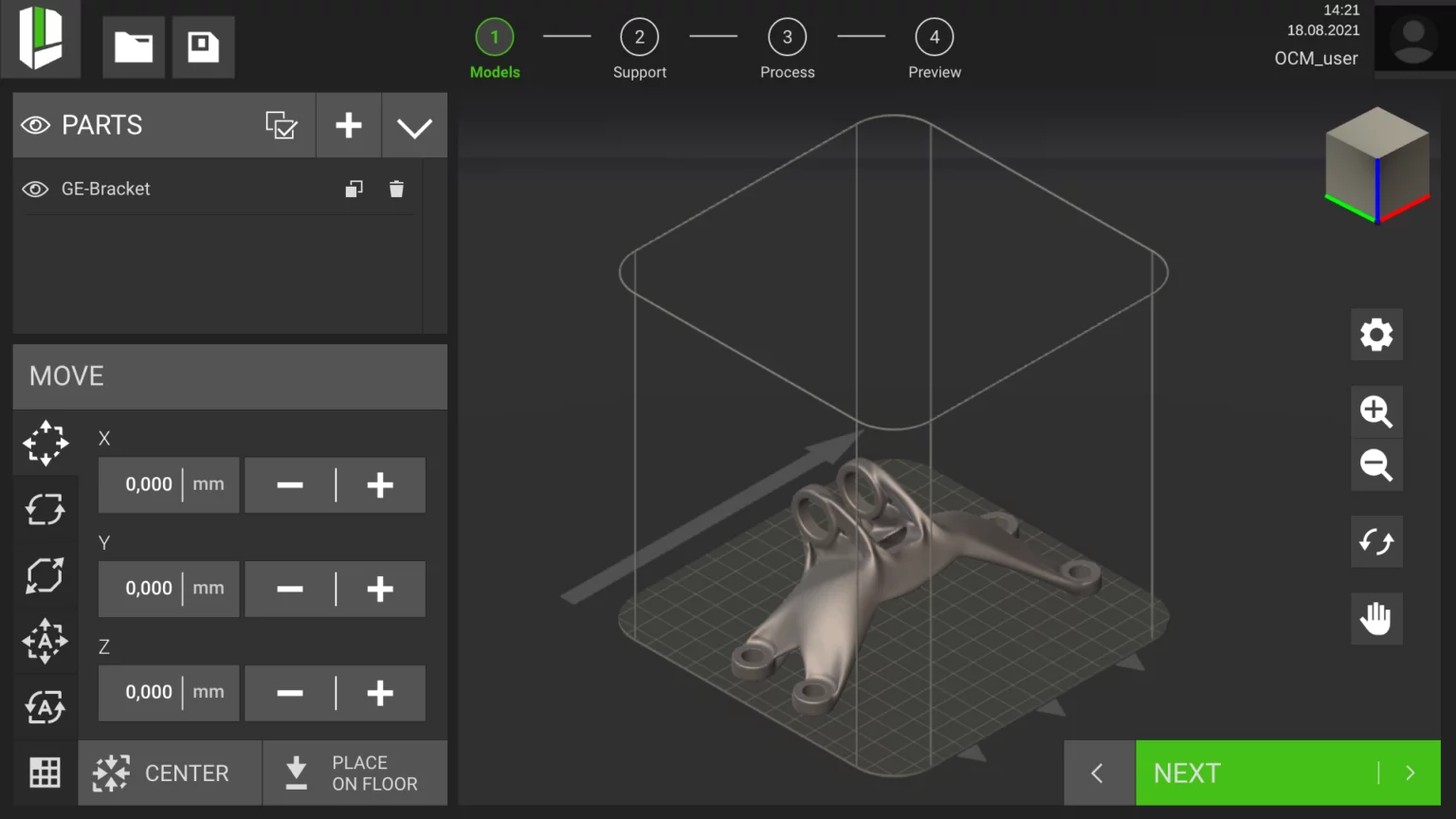

1. Load, place and align your component

After uploading your component file, you are then given the option to move, rotate or scale depending on your needs.

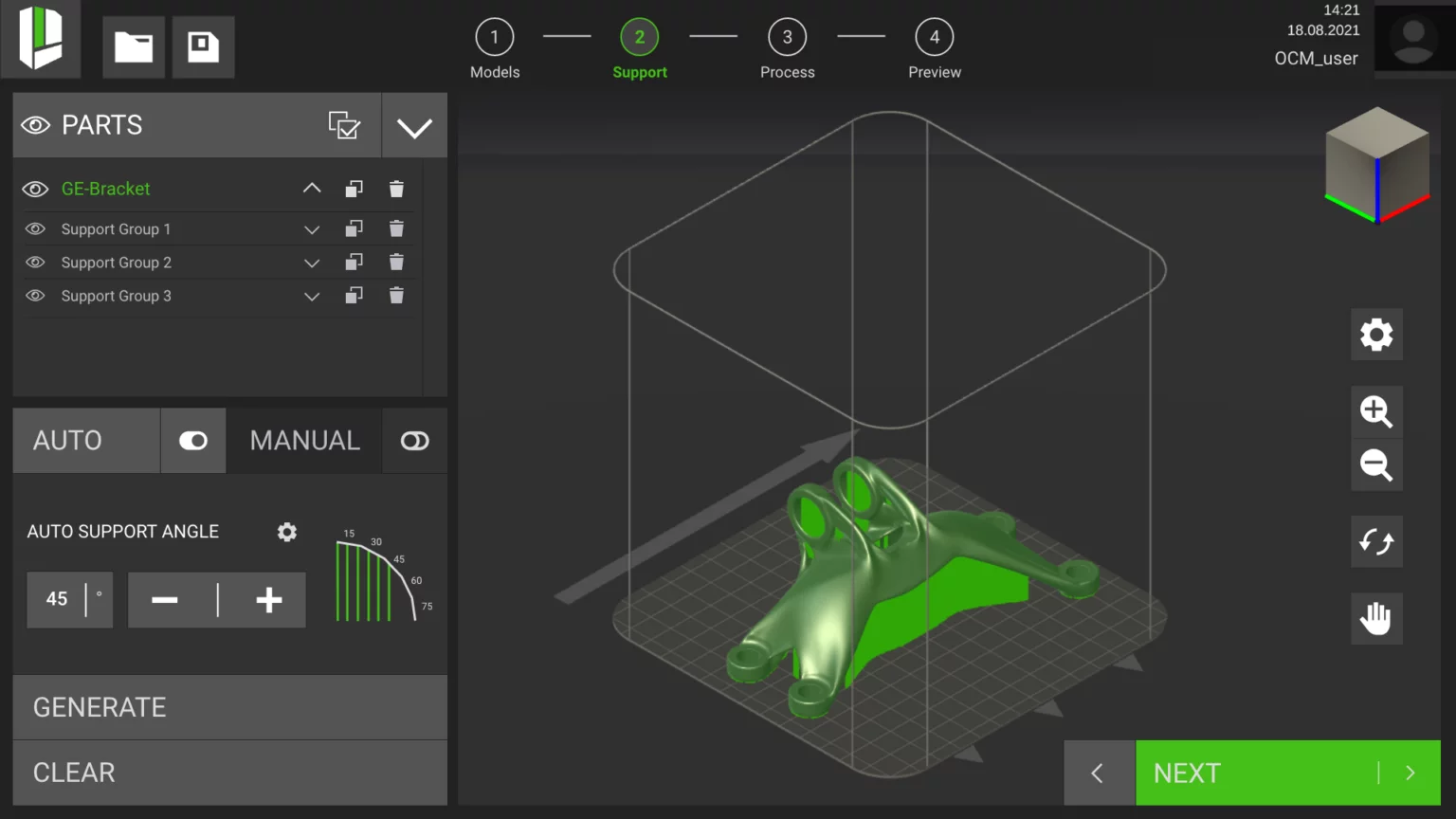

2. Generate and modify supports

Support type and geometry can be calculated automatically or manually.

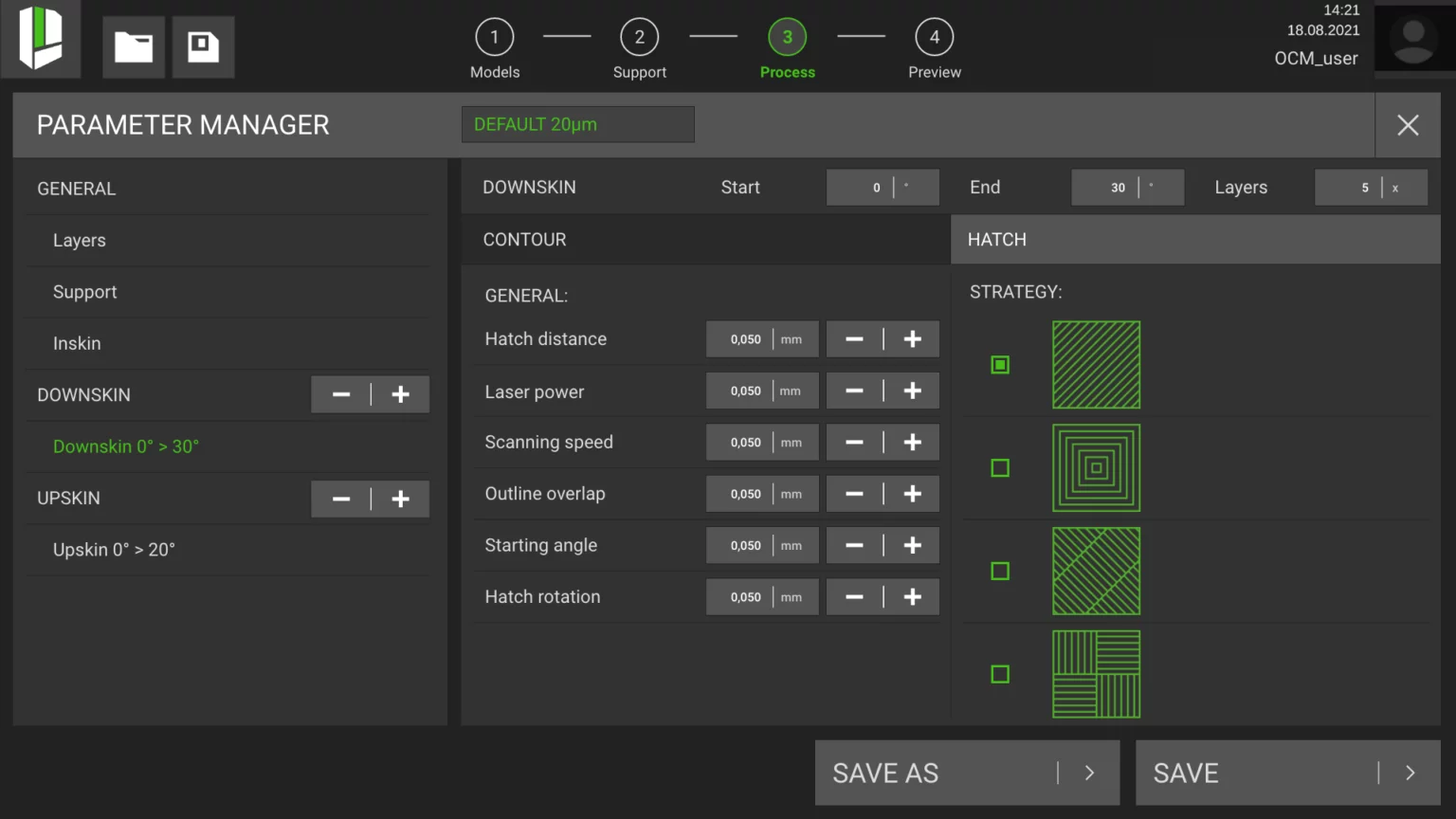

3. Assign parameters

Presets and individual adjustment mean parameters are easy to get right.

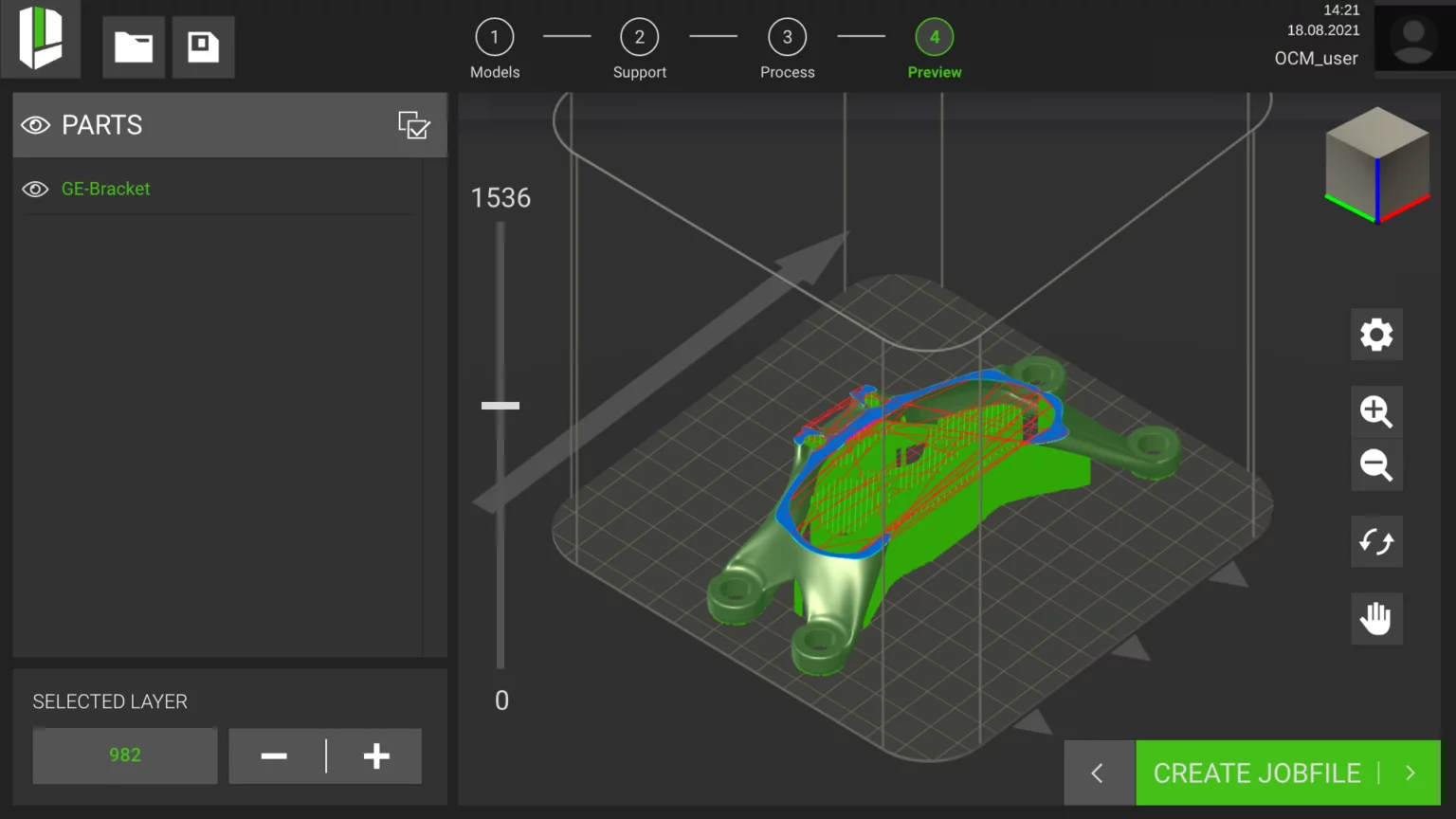

4. Slice to layers, load to your machine

Layer and parameter previews show you exactly how your component will turn out – you can export your data too.

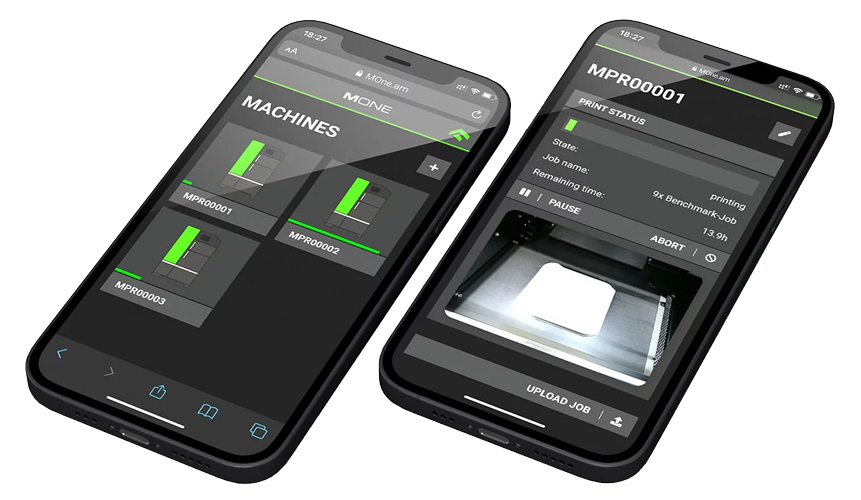

MONE

Remote monitoring and control from your phone, tablet, or PC.

Features and benefits

  • Monitor your build in any location
  • Select and view individual machines
  • View jobs in real-time with access to your machine’s built-in chamber cameras
