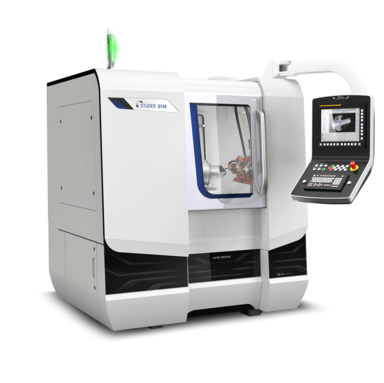

Studer S110

The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. The machine has a centre height of 102mm (4") and a grinding length of max. 120mm (4.7").

Up to three linearly arranged grinding spindles enable external and internal grinding in a single clamping. S110 is the ideal machine for chuck applications for individual components up to small-batch production. A cost-effective solution for high-precision automated grinding can be achieved with the optional, fully integrated automatic loading and unloading system.

Key features

  • Up to three grinding spindles in a linear arrangement
  • HF or belt-driven spindles
  • A grinding spindle can be equipped with an external grinding wheel dia. 300mm (11.8")
  • External and internal grinding possible in one clamping
  • Full enclosure with sliding door
  • Integrated or autonomous loading systems
  • Fanuc Oi-TD / Fanuc 31i-A (with loader)
  • StuderWIN or StuderSIM simulation software for the creation and simulation of grinding programs on the machine control or on a PC
