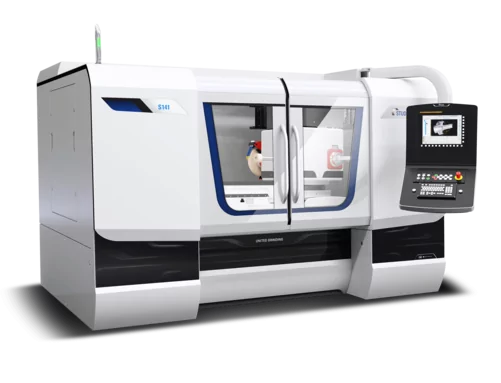

Studer S141

The S141 is a CNC universal internal cylindrical grinding machine of the latest generation. Three sizes are available for workpiece lengths (including clamping devices) of 300mm (11.8"), 700mm (27.5") and 1300mm (51.2"). For all models the maximum grinding length is 250mm (9.8") for internal and 150mm (5.9") for external diameters.

The S141 is the ideal machine for grinding spindle shafts, spindle housings, rotor shaft axes or flange parts. Many workpieces are to be found in the areas of machine tools, drive elements, aerospace and tooling.

Key features

  • StuderGuide® guideway system with linear drive
  • Grinding spindle turret with up to four grinding spindles
  • Automatically swiveling workpiece table
  • C-axis for workhead spindle for form and thread grinding
  • Full enclosure with two sliding doors
  • Granitan® S103 mineral casting machine base
  • Very simple operation and programming thanks to StuderWIN
  • Short setup and resetting times e.g. with STUDER Quick-Set
  • Standardized interfaces for loader and peripheral devices
