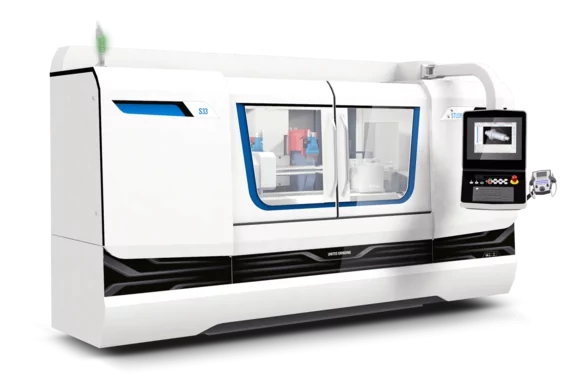

Studer S33

The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).

Changing over from grinding between centres to live spindle grinding is particularly easy on this machine. The new wheelhead with two motor spindles enables grinding of even more complex workpiece geometries in a single clamping. Its foundation is a machine base made of solid Granitan® S103.

Key features

  • Optional wheelhead:
    - Turret wheelhead with up to 2 external grinding spindles and 1 internal grinding spindle. Automatic swivel with 1° Hirth serration.
    - External wheelhead with grinding wheel on the right, 0° / 15° / 30°
  • Motor spindle incl. frequency converter for external and internal grinding on the turret wheelhead
  • The C-axis on workhead for thread and form grinding
  • An additional T-slot integrated into workpiece table for dressing device
  • Full enclosure with two sliding doors
  • Granitan® S103 mineral casting machine base
  • Extremely easy programming with StuderPictogramming
  • Reduced setup and resetting times with STUDER Quick-Set
  • Standardized interfaces for loader and peripheral devices
  • Flexibly expandable with integrated software modules
  • StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC
