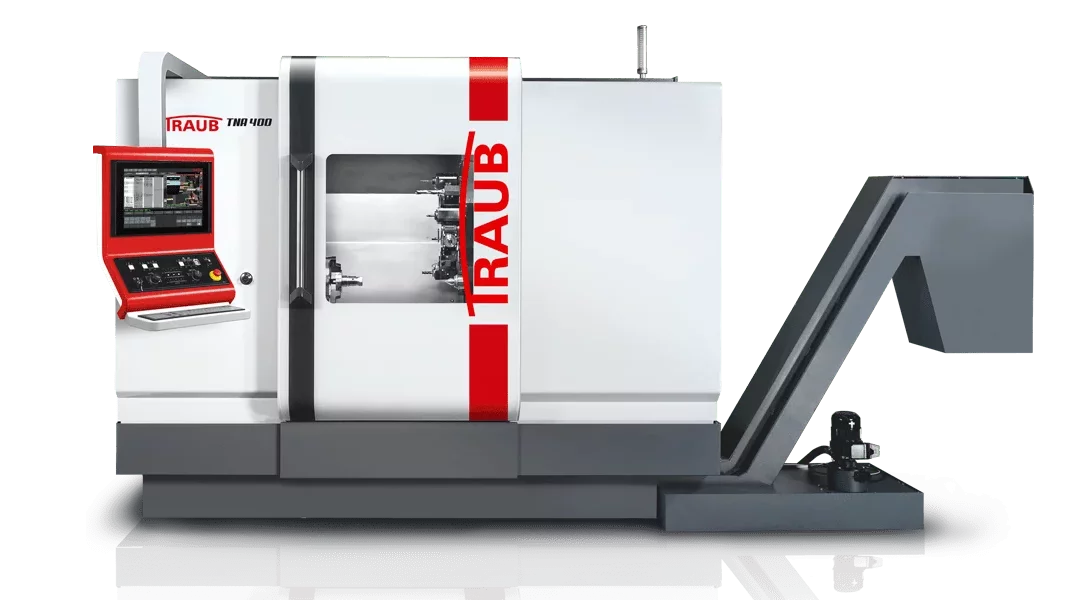

TNA400

The TNA400 universal turning machine ensures powerful cutting and comprehensive machining options.

Insights into the TNA400

  • The open control concept with a superfast 64-bit processor ensures that you have your production under control at all times. Whether tool breakage monitoring, realistic real-time simulation for shorter setup times or visual collision detection before running in the machine. The TNA400 has all this as standard.
  • Y-axis with 100 mm travel
  • 50 mm turret face travel over spindle center for optimal use of tools
  • Tailstock on separate guideway
  • 12-station disk-type turret with individual drive at all stations
  • Hydraulic power clamping device
  • Internal coolant supply with 5 bar
  • Chip conveyor

Key Features

Working area Bar capacity 80mm
Chuck diameter 200-315mm
Turning length 750mm
Main spindle Power max 22kW
Speed max 3,150rpm
Torque max 485Nm
Tool carrier Number of stations 12
Tool holder DIN 69880
Y-axis (option) +/- 50mm
Rapid traverse X 15m/min
Rapid traverse Z 24m/min
Power max 5.5kW
Speed max 4,000rpm
Torque max 47Nm
Tailstock Quill diameter 85mm
Quill stroke 140mm
Dimensions, weight, connecting power Length x width x height 4,592 x 1,821 x 2,005mm
Weight 6,200kg
Connecting power 30kW
