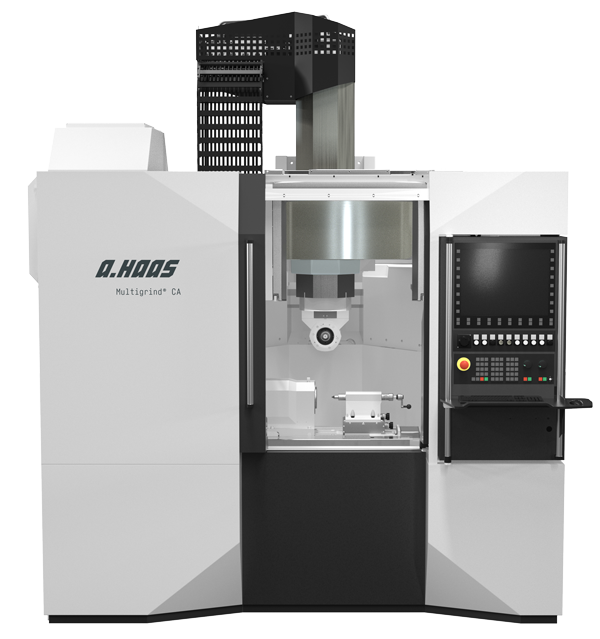

Multigrind® CA

The Multigrind® CA is not only loaded with sophisticated technical features, it also looks great and offers an excellent price-to-performance ratio.


Insights into the Multigrind® CA

  • Grind workpieces with a diameter of up to 250 mm and a length of up to 400 mm with typical precision.
  • The Multigrind® CA offers remarkable travel ranges (X-axis: 630 mm; Y-axis: 345 mm; Z-axis: 430 mm).
  • Depending on the grinding process, the Multigrind® CA can be equipped with grinding wheels with a diameter of up to 250 mm, and 12 wheels fit in the patented double-wheel changer, giving the operator increased flexibility to combine operations.
  • Tthe Multigrind® CA also offers an impressive level of precision and efficiency in serial production processes with low labor content.

Key Features

Workpiece size Diameter 260mm
Length 550mm
Length between the tips 500mm
Work range X-axis 630mm
Y-axis 345mm
Z-axis 430mm
C-axis 285°
X3 auxiliary axis (optional) Pneumatic / NC 120mm/ 400mm
Machine table Clamping surface 1,000 x 440mm
T-slots: Number / Spacing / Width 7 / 50 mm / 12H7 mm
Footprint standard machine Length × width 2,700 x 2,400 mm
Height in operation 3,200 mm
Weight standard machine Total weight, depending upon optional equipment from 8,500 kg
Footprint machine with tool magazine Length x width 4, 700 x 2,400
Height in operation 3,200mm
Weight machine with tool magazine Total weight, depending upon optional equipment from 11,500kg
