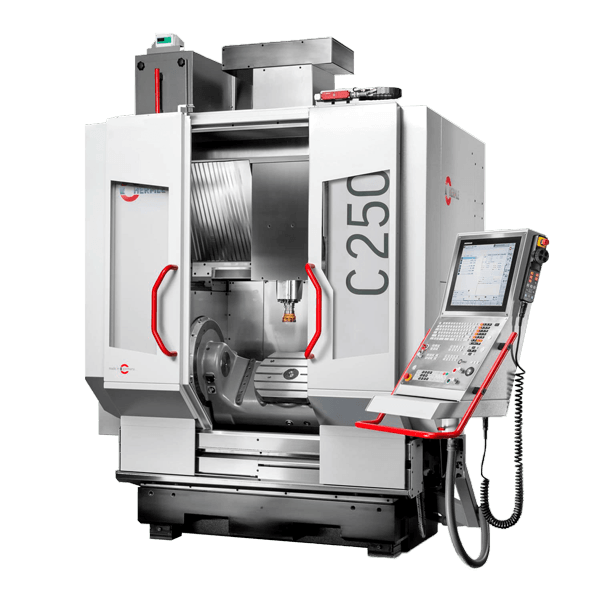

Insights into the C 250
- The largest working area in relation to the installation area
- Large collision circle between the table sections
- The right chip disposal equipment for removing all types of chip from the working area
- Comprehensive fluid technology
- Can be transported without being dismantled
- No need for a foundation
Key Features
| Traverse path | 600 x 550 x 450 mm | |
| Body | dia. 450 / H 355 | |
| Collision circle | dia. 770 mm | |
| Max. vertical table clearance | 550 mm | |
| Speed | 15000/18000 1/min | |
| Rapid traverse linear X-Y-Z | 35 m/min | |
| Rigid clamping table | 800 x 616 mm | |
| Max. table load | 1100 kg |
“Hermle machines are inherently very accurate and able to hold this tolerance easily. The spindle in particular has no discernible run-out. Machine construction is very rigid, which not only ensures accuracy but also leads to longer tool life. The cachet of having Hermle equipment on your capacity list is not to be underestimated.”
– George Boyce, Boyce Precision Engineering
For Boyce Precision Engineering, accuracy specified on the drawings is down to ± 20 microns on some aerospace parts and those for the pharmaceutical industry
Top quality machining centre has entry-level price.
There have been no compromises in the build quality of the C 250 machining centre or indeed its larger counterpart the C 400. The only limitation is that they are available with fewer options, which is the reason for their economical price.
Top quality machining centre has entry-level price
Hermle AG, a prominent German manufacturer of high precision, 3 to 5-a...
