Second-Generation Turn Mill from Index

Index G200

The second generation of the successful Index G200 turn-mill centre, designed for highly productive, complete machining of components from bar or billet, has been introduced by the German manufacturer, Index. Available in the UK, Ireland and the Middle East through sole agent Kingsbury, the machine has extensive improvements including increased turning length, up from 400 to 660 mm, a second lower tool carrier and a higher power milling spindle.

The compact machine offers significantly improved performance in a footprint virtually the same as its predecessor’s, delivering cycle time reductions of up to 30 per cent. New also is the vertical orientation of the heavily ribbed, low-vibration, cast bed. It optimises chip flow and provides more space in the working area, especially for the lower tool turrets. Arranged in mirror image, each has an independent, ± 45 mm Y-axis as well as 14 live tool stations rated at 16 kW / 16 Nm (25% DC) and 7,200 rpm maximum speed.

The identical main and counter motor spindles are fluid-cooled, have a bar capacity of 65 mm and a chuck diameter of 165 mm. Rated at 31.5 / 32 kW and 125 / 170 Nm (100 / 40% DC), they provide rotational speeds up to 6,000 rpm for productive machining.

Index G200

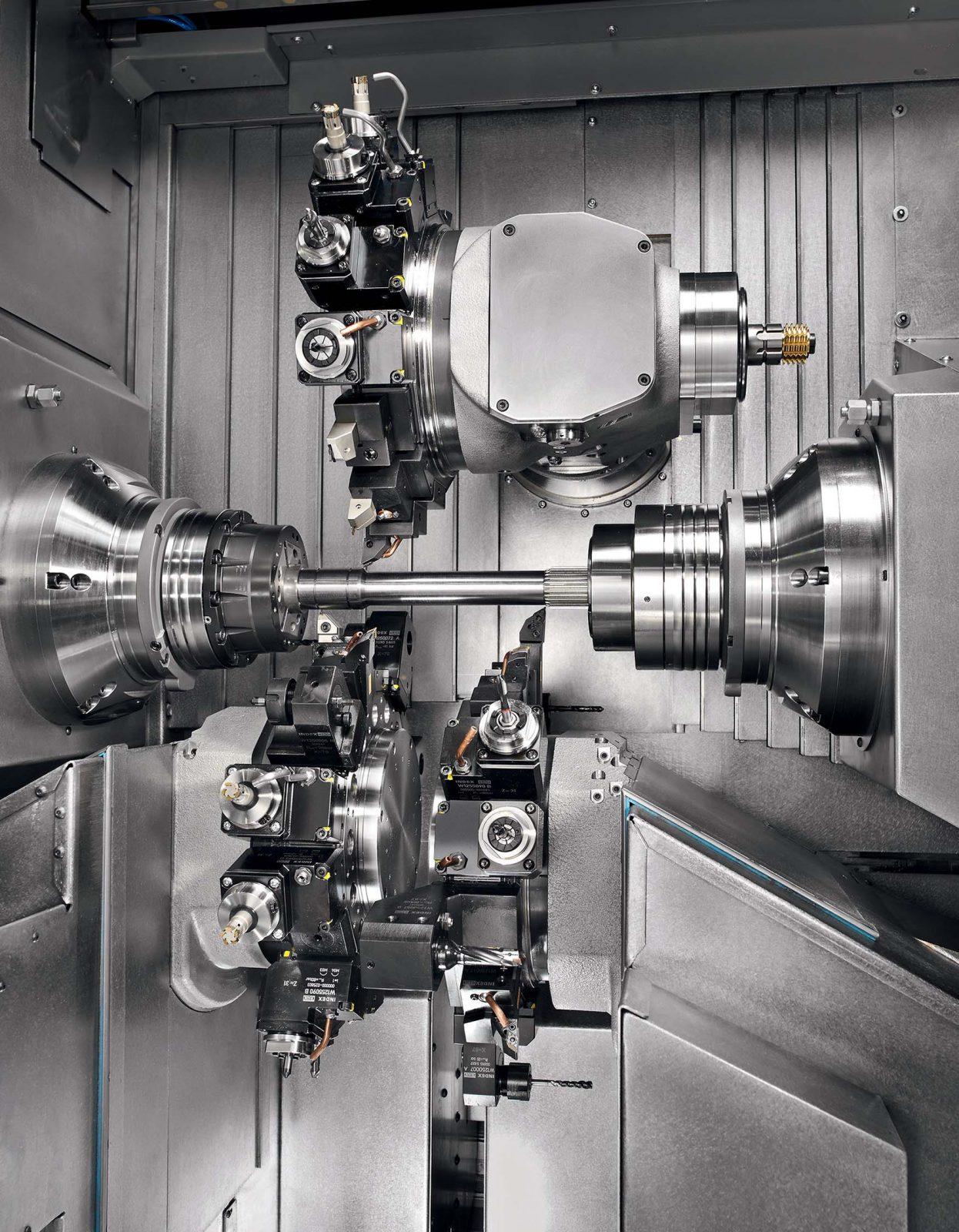

A notable feature is the upper tool carrier, which has a ± 65 mm Y-axis and a 360-degree B-axis. On one side there is a tool turret with another 14 positions and on the other an HSK-A40 milling spindle. Its drive comes with a considerable increase in speed. Whereas the previous G200 was limited to 2,000 rpm, the new, 22 kW / 52 Nm (25% DC) version provides speeds up to 7,200 rpm.

For maximum productivity, it is possible to utilise all three turrets simultaneously at either the main spindle or counter spindle, without interference. For example, a drill in a lower turret can machine a bore in a workpiece at one spindle while the other lower turret and the upper tool carrier balance-turn the outside diameter.

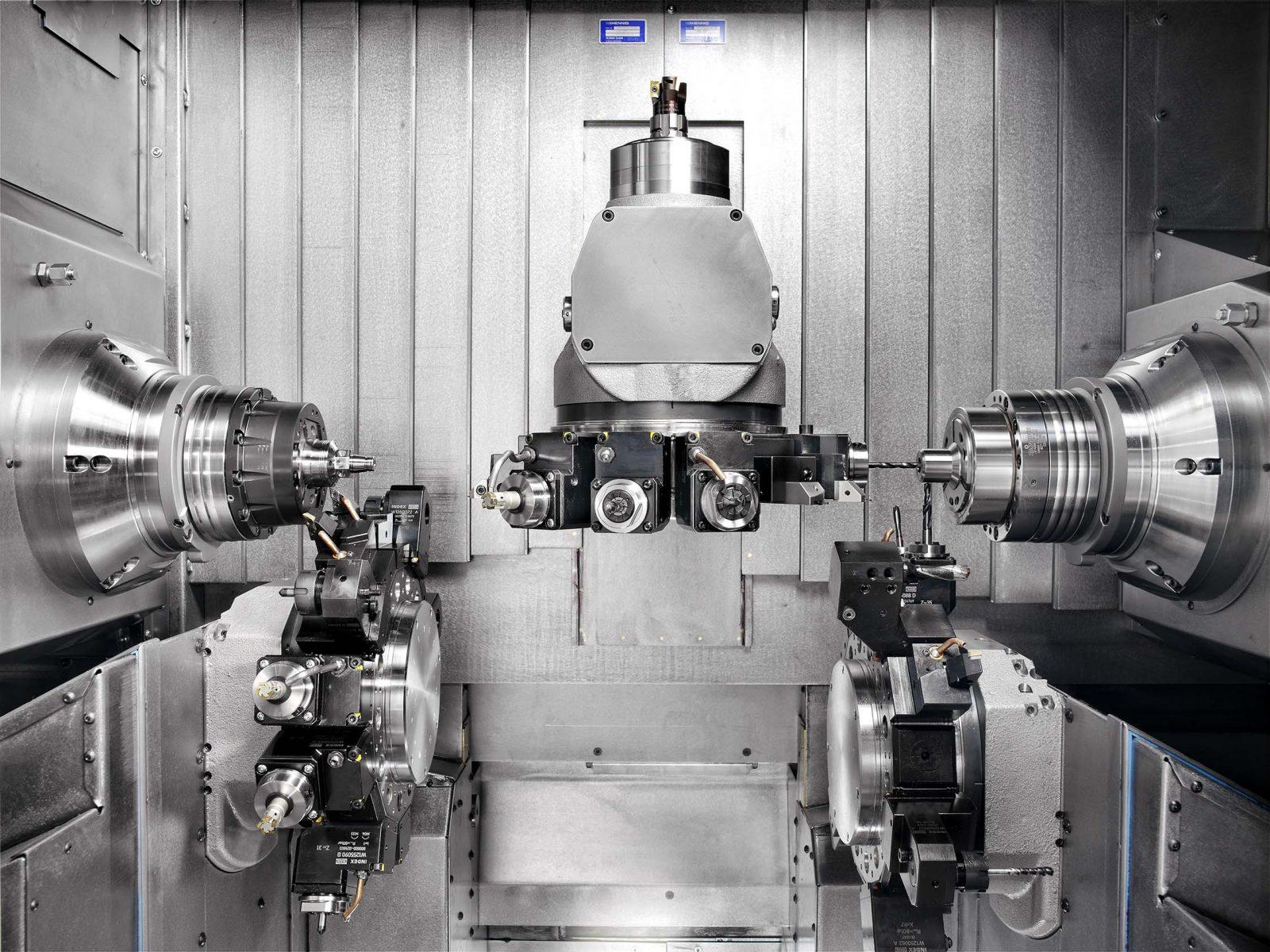

The B-axis can swing the upper tool carrier so that its turret is in a horizontal orientation and move it into the work area up to 30 mm below the spindle centreline. Diametrically opposite tools can then mill, drill or turn workpieces in both spindles, simultaneously if required. The feature enables machining of front-end and reverse-end faces of components with straight tools, which is more accurate and less costly than using right-angle tool holders.

Index G200

Additionally, the 845 mm travel of the upper tool carrier is sufficient for the entire maximum turning length to be traversed without having to rotate the B-axis, which is often not the case with other machine concepts.

Based on the Siemens S840D sl, the Xpanel I4.0-ready operating concept with real-time program simulation developed by Index simplifies use of the CNC system. For example, many elements of the control panel have been integrated into the display and can be used directly via the 18.5” touch-screen.

Another useful feature on the control panel is that active buttons and switches are backlit by LEDs, while currently inactive ones remain unlit. An optional PC in the control cabinet allows NX CAM to run directly on the machine, which is particularly useful for applications requiring extensive milling.
