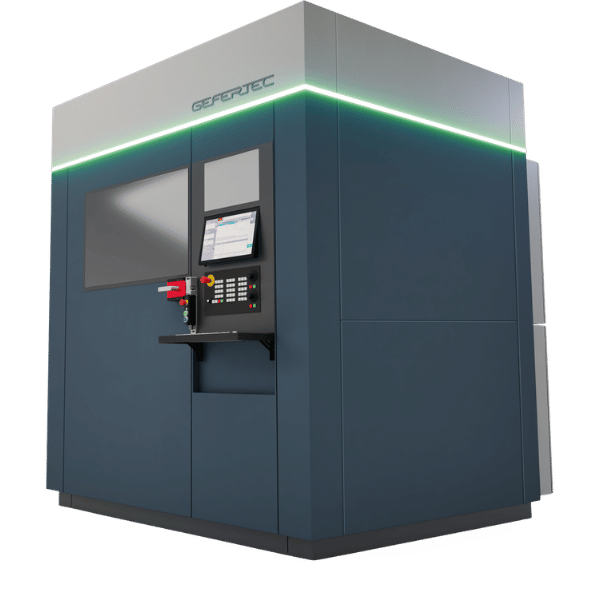

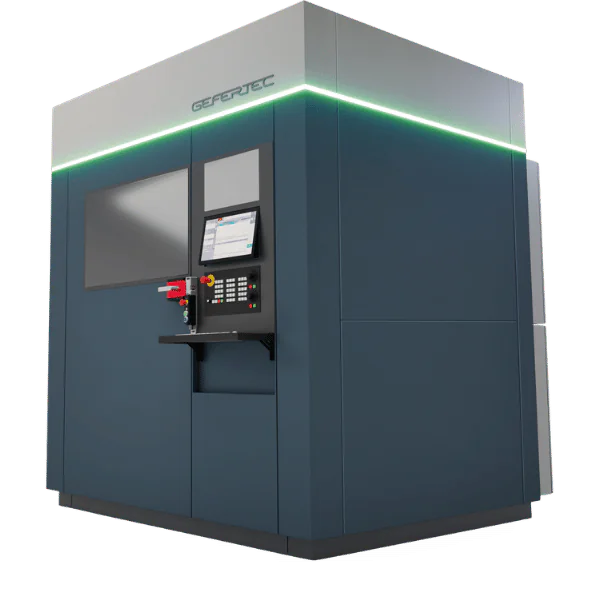

Gefertec arc10X series

The arc10X represents GEFERTEC’s latest industrial WAAM platform, featuring a fundamentally optimised pricing architecture and purpose-built for organisations seeking to deploy additive metal manufacturing in a scalable, continuous, and cost-efficient industrial environment.

Contact the team
Benefits Features Specifications

  • Camera System 2+1: 2 build chamber cameras + 1 process camera for visual documentation

  • Temperature Monitoring: Pyrometer with infrared measurement (100 to 700 ÅãC)

  • Gas Flow Monitoring: Integrated sensor forshielding gas flow measurement

  • Process Data Recording: Process Monitoring system at 4 kHz sampling with CSV export of current, temperature, voltage, wire feed speed, torch coordinates, machine status, seam tracking, part number, shift number, field number and welding job number

  • Collision Protection: Tool carrier protection system

  • Process Data Analysis: Limit monitor with export to CAM

  • Camera system
  • Temperature monitoring
  • Gas flow monitoring
  • Collision protection
  • Process data recording
  • Data export
Working space
Max. size of producible parts (Ø - z) in mm 700 diameter × 500 height (cylindrical)
Max. component weight in kg 500
Part removal Front loading
Motion system
Axis configuration 5-axis system
Max. feed rate in mm/min 5000
CNC control
Controller Siemens Sinumerik One
Programming G-code via GEFERTEC postprocessor
Welding system
Power source Fronius TPS 400i
Max. welding current in A 400
Wire feedstock Standard welding wire (application-dependent)
Enclosure & safety
Filter standard ISO 16890 ePM1-80%
Certification CE according to 2006/42/EG (Machinery Directive)
Physical dimensions
Machine dimensions (W × D × H) in mm 2151 × 2274 × 2500
Floor space requirement in m² Approx. 5
Machine weight (incl. welding table) in kg Approx. 2500
