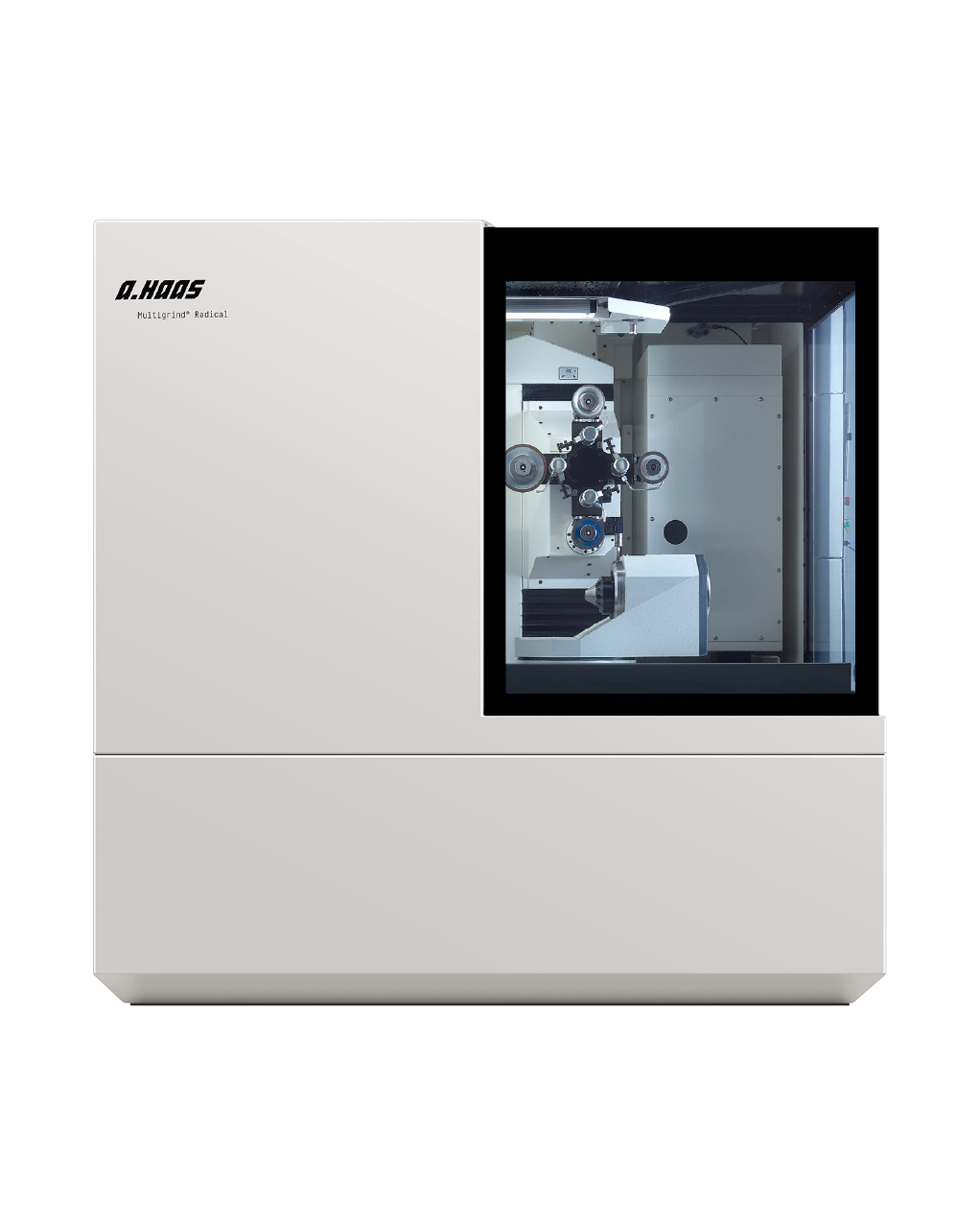

Haas Multigrind® Radical

The new Multigrind® was developed explicitly for the future of tool grinding. Maximum precision for milling cutters, inserts and drills. In large quantities or as very small batches from batch size 1 to 1,000. Flexible production as required thanks to chaotic assembly. Maximum benefit and significantly lower costs in ongoing operation. The Multigrind® Radical knows no limits.

Contact the team

Barriers are broken down. The new Multigrind® Radical is maximally equipped and yet radically reduced. With its self-rigid mineral cast bed, it stands rock-solid on a footprint of 1,425 × 1,875 mm. With its minimum height of 2,070 mm, it is suited for a low hall height. Convenient over-corner access to the inside of the machine through the oversized safety glass door. Think Bigger!

Grinding spindle Interface HSK 50
Power 100 % 9 kW
Rotation speed infin. var. 10,000 rpm
Travel range X-axis 575 mm
Y-axis 370 mm
Z-axis 250 mm
C-axis rotation range 235°
Workpiece dimensions Diameter up to 100 mm
Length up to 200 mm
Weight up to 10 kg
Automation Tool changer
4 grinding wheel flanges
max. 12 grinding wheels
Measuring system and feed Direct path measuring system
Linear axis resolution 0.0001 mm
Linear axis rapid feed 25 m/min
Rotary axis resolution ±0.0005°
Electronics Electrical supply 400 Volt/50 Hz, 63 A
Control Sinumerik ONE
Grinding software Multigrind® Horizon
Pneumatics operating pressure 6 bar
Rotary axis (A-axis) Standard center height 120 mm
Interface SK50 or HSK80
Rotation speed 1,200 rpm
Weight and space required Total weight dep. on equipment <5 t
Length × width 1,425 × 1,875 mm
Height during operation 2,070 mm
