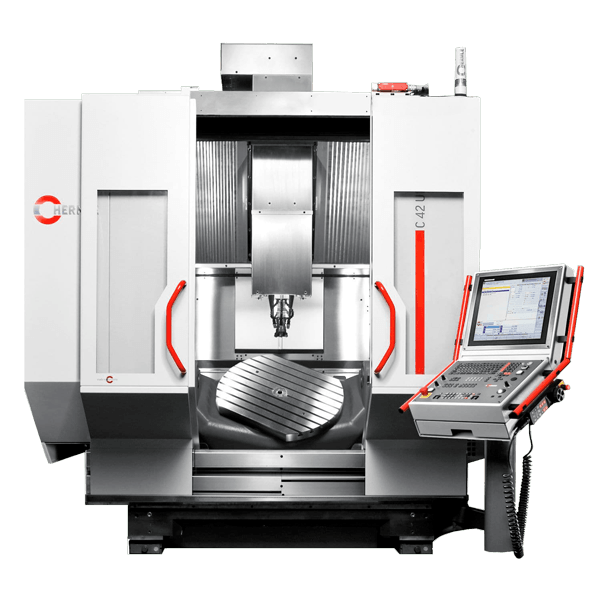

The C 42 machining centre from the High-Performance-Line makes for an effective entry into MT technology – and it becomes a high-performance milling and turning centre. This includes various applications in the tool and mould making, medical, aerospace, motorsport, racing machine sectors and other industries: The C 42/ C C 42 U MT machining centre is at home in every area.
Contact the teamAs a milling/turning centre, the C 42 / C 42 U MT responds to demands for highest precision and very small tolerances through its workpiece-dimension-optimized traverse paths and thought-through 5-axis usage.
Traverse path | 800 x 800 x 550 mm | |
Body | dia. 800 / H 560 | |
Collision circle | dia.990 mm | |
Max. vertical table clearance | max. 700 mm | |
Speed | 15000/18000/25000/42000 1/min | |
Rapid traverse linear X-Y-Z | 45 (60)–45 (60)–40 (60) m/min | |
Swivelling rotary table | 750 dia | |
Max. table load | 1400kg milling / 700kg turning |
