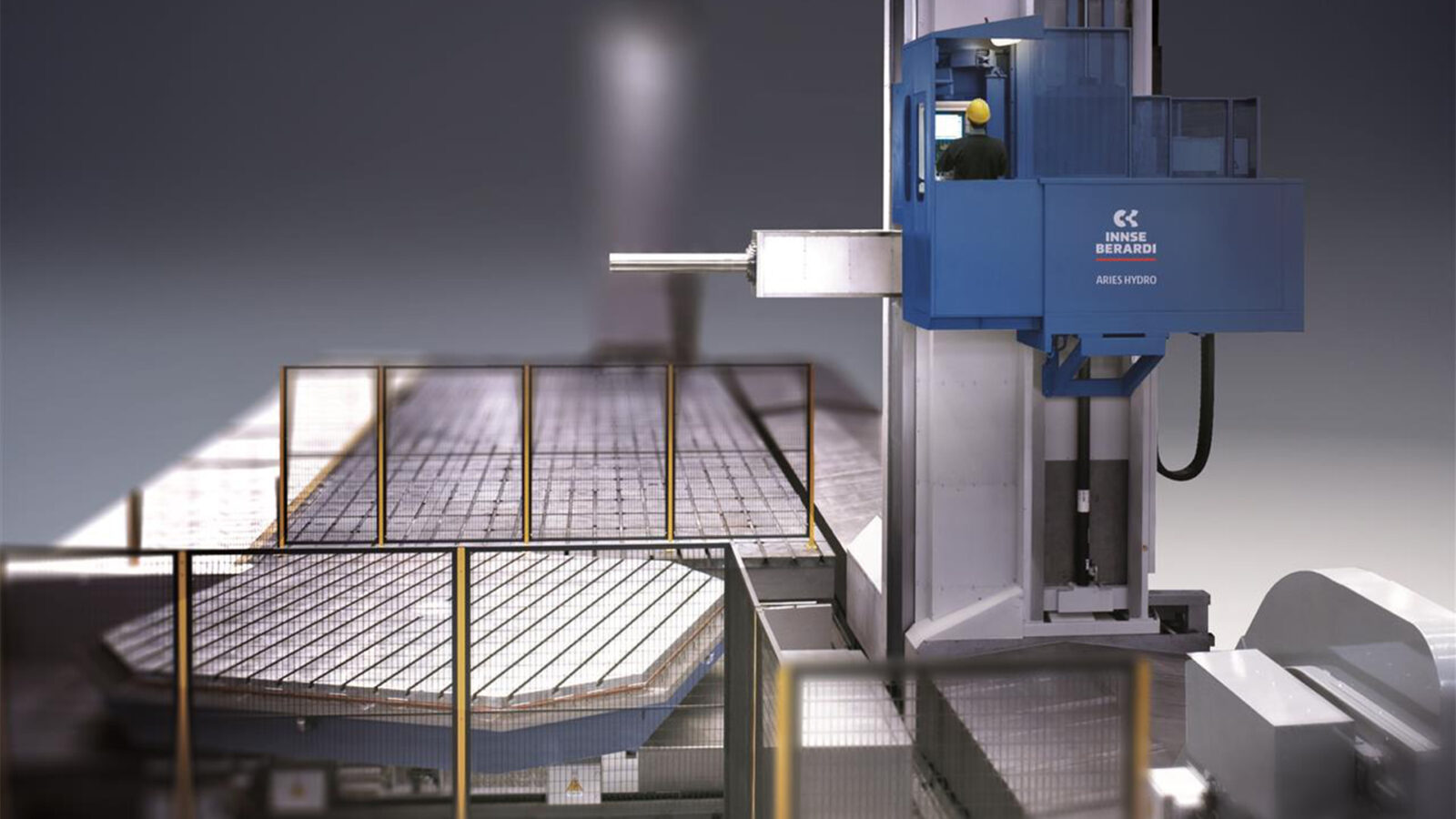

The Aries Hydro Series
Horizontal Spindle Boring and Milling Machines
The Aries Hydro series represents a line of milling-boring machines with moving column for medium and large-sized components, delivering the perfect combination of high performance, precision, and reliability.
Its design with hydrostatic guideways ensures optimal structural rigidity and superior machining quality, making it ideal for complex and large-scale workpieces.
Contact the team
- Easily handles large and heavy parts with high chip removal rate
- Innovative Box-in-Box design on model Aries Hydro 1
- Offers multiple options with a wide range of standard and customized attachment heads
- Allows two separate working and loading areas with the Double Table configuration
Thanks to Innse Berardi’s innovative FDC (Flexible Design Concept) engineering technology, which makes it possible to develop modular solutions with different machine morphologies, various configurations can be offered while keeping the core components of the machine unchanged:
- Aries Hydro 1: Box-in-Box RAM design
- Aries Hydro 2/3/4/5: Side RAM design
ARIES HYDRO 1 TECHNICAL FEATURES
| Aries Hydro 1 TECHNICAL FEATURES | |
|---|---|
| Longitudinal X-axis travel | From 3000 mm up to 24500+ mm |
| Vertical Y-axis travel | From 2000 mm up to 6000 mm |
| RAM cross travel (Z-axis) | Up to 2000 mm |
| Boring Spindle travel (W-axis) | Up to 1000 mm |
| Boring Spindle Diameter | 130 – 150 – 160 mm |
| Spindle power | 50 – 65 kW |
ARIES HYDRO 2-3-4-5 TECHNICAL FEATURES
Design with Side RAM
The Aries Hydro 2-3-4-5 series is engineered for optimal machining accuracy, thanks to a robust structural design and advanced technological solutions. Available in multiple size configurations, it adapts seamlessly to specific production requirements, making it a versatile and reliable choice for precision manufacturing.
| Aries Hydro 2 – Aries Hydro 3 – Aries Hydro 4 – Aries Hydro 5 | |
|---|---|
| Longitudinal X-axis travel | From 5000 mm up to 30000+ mm |
| Vertical Y-axis travel | From 2500 mm up to 10000 mm |
| RAM cross travel (Z-axis) | From 1250 mm up to 2000 mm |
| Boring Spindle travel (W-axis) | From 1000 mm up to 1800 mm |
| Boring Spindle Diameter | From 150 mm up to 320 mm |
| Spindle power | From 50 kW up to 150 kW |
| Torque | From 3750 Nm up to 32000 Nm |
