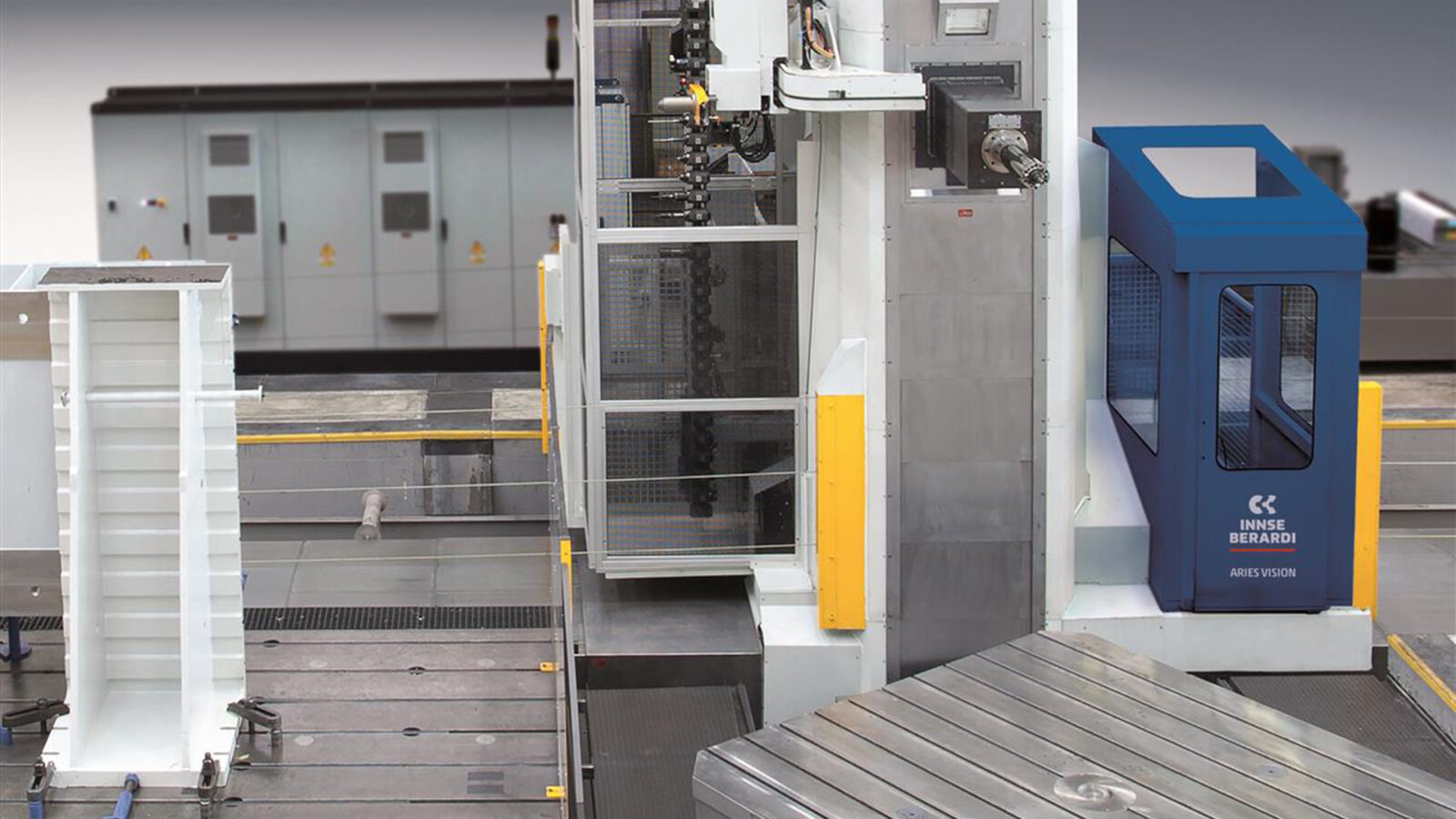

The Aries Vision Series

Milling and Milling-Boring Machines with Linear Guideways

The Aries Vision series offers high-speed, high-performance movable column milling and boring centers, equipped with linear guideways. Designed for 3, 3+2 and 5-axis machining, these machines excel in processing complex components of all shapes and sizes.

Contact the team
  • The centrally mounted RAM head guarantees optimal mass distribution and thermal stability
  • Maximum accuracy across the entire working volume thanks to balanced force distribution
  • Compact footprint, ideal for environments with limited space
  • Patented technology for RAM balancing system
  • Offers multiple options with a wide range of standard and customized attachment heads

With an innovative Flexible Design Concept (FDC), developed by Innse Berardi, we are redefining the concept of design flexibility. Thanks to this cutting-edge modular technology, we can deliver customized solutions with different machine morphologies while keeping the strategic components unchanged:

  • Aries Vision M FR: Horizontal spindle machine designed primarily for milling operations
  • Aries Hydro M FRAL: Horizontal spindle machine combining milling with high-precision boring capabilities

Aries Vision FR Technical Features

Longitudinal X-axis travel From 3000 mm up to 21000+ mm
Vertical Y-axis travel From 2000 mm up to 6000 mm
RAM cross travel (Z-axis) Up to 2000 mm
Spindle power Up to 60 kW
Torque Up to 2500 Nm
Spindle speed Up to 6000 rpm

Aries Vision FRAL Technical Features

Longitudinal X-axis travel From 3000 mm up to 21000+ mm
Vertical Y-axis travel From 2000 mm up to 6000 mm
RAM cross travel (Z-axis) Up to 2000 mm
Boring spindle travel (W-axis) Up to 1000 mm
Boring spindle diameter 130 – 150 – 160 mm
Spindle power Up to 60 kW
Torque Up to 2500 Nm
Spindle speed Up to 4000 rpm
