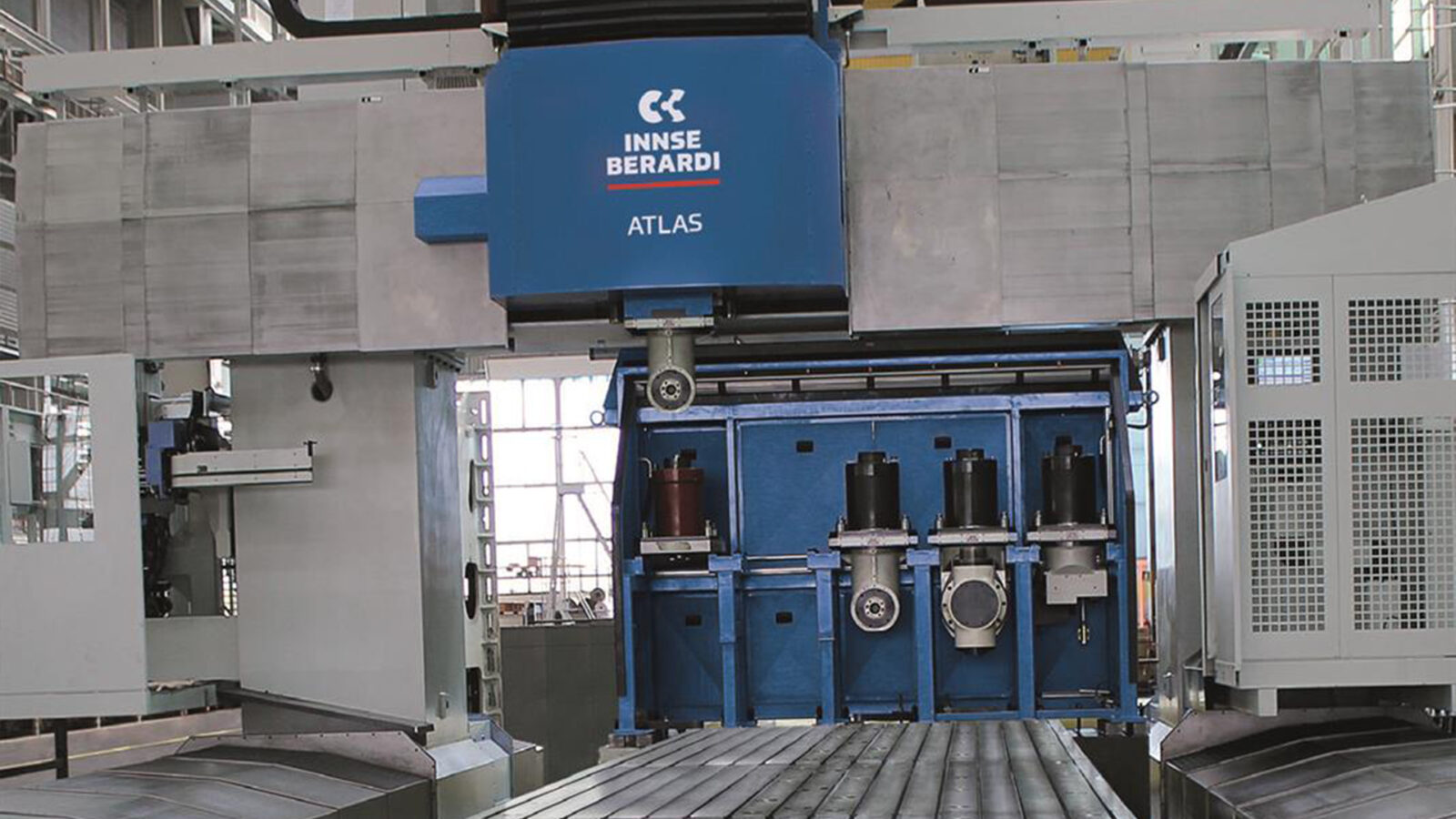

The Atlas Hydro Series
Vertical Spindle Heavy-Duty Portal Milling Centers
The range of vertical milling centers designed for machining large components, equipped with hydrostatic guides, delivers superior performance and long-lasting durability, making them ideal for the most demanding industrial applications.
Contact the team
- Easily handles large and heavy parts with high chip removal rate
- Delivers excellent accuracy in all the working area thanks to reduced vibrations
- Offers multiple options with a wide range of standard and customized attachment heads
- Allows two separate working areas with the Double Table configuration or FMS system
Thanks to Innse Berardi’s FDC (Flexible Design Concept) technology, it is possible to create modular solutions with different machine morphologies while keeping the core components unchanged, offering various configurations:
- Atlas Hydro P: Fixed portal milling machine with moving table. Available with fixed or working crossrail
- Atlas Hydro G: Gantry type portal with fixed table. Available with fixed or working crossrail
ATLAS HYDRO P TECHNICAL FEATURES
| Distance between columns | From 3000 mm up to 1000 mm |
| Table width | From 2000 mm up to 9000 mm |
| Table length | From 3000 mm up to 18000 mm |
| Longitudinal X-axis travel | From 4500 mm up to 19500 mm |
| RAM vertical travel (Z-axis) | From 1500 mm up to 4000 mm |
| W-axis vertical travel (only for ATLAS HYDRO P-W working crossrail) | From 1500 mm up to 5000 mm |
| Spindle power | From 65 kW up to 100 kW |
| Torque | From 3500 Nm up to 9000 Nm |
| Spindle speed | From 2500 rpm up to 4000 rpm |
| C-axis | Continuous positioning/working |
ATLAS HYDRO G TECHNICAL FEATURES
| Distance between columns | From 3000 mm up to 10000 mm |
| Floor plate width | From 2000 mm up to 9000 mm |
| Floor plate length | From 5000 mm up to 23000+ mm |
| Longitudinal X-axis travel | From 6000 mm up to 24000+ mm |
| RAM vertical travel (Z-axis) | From 1500 mm up to 4000 mm |
| W-axis vertical travel (only for ATLAS HYDRO G-W working crossrail) | From 1500 mm up to 5000 mm |
| Spindle power | From 65 kW up to 100 kW |
| Torque | From 3500 Nm up to 9000 Nm |
| Spindle speed | From 2500 rpm up to 4000 rpm |
| C-axis | Continuous positioning/working |
