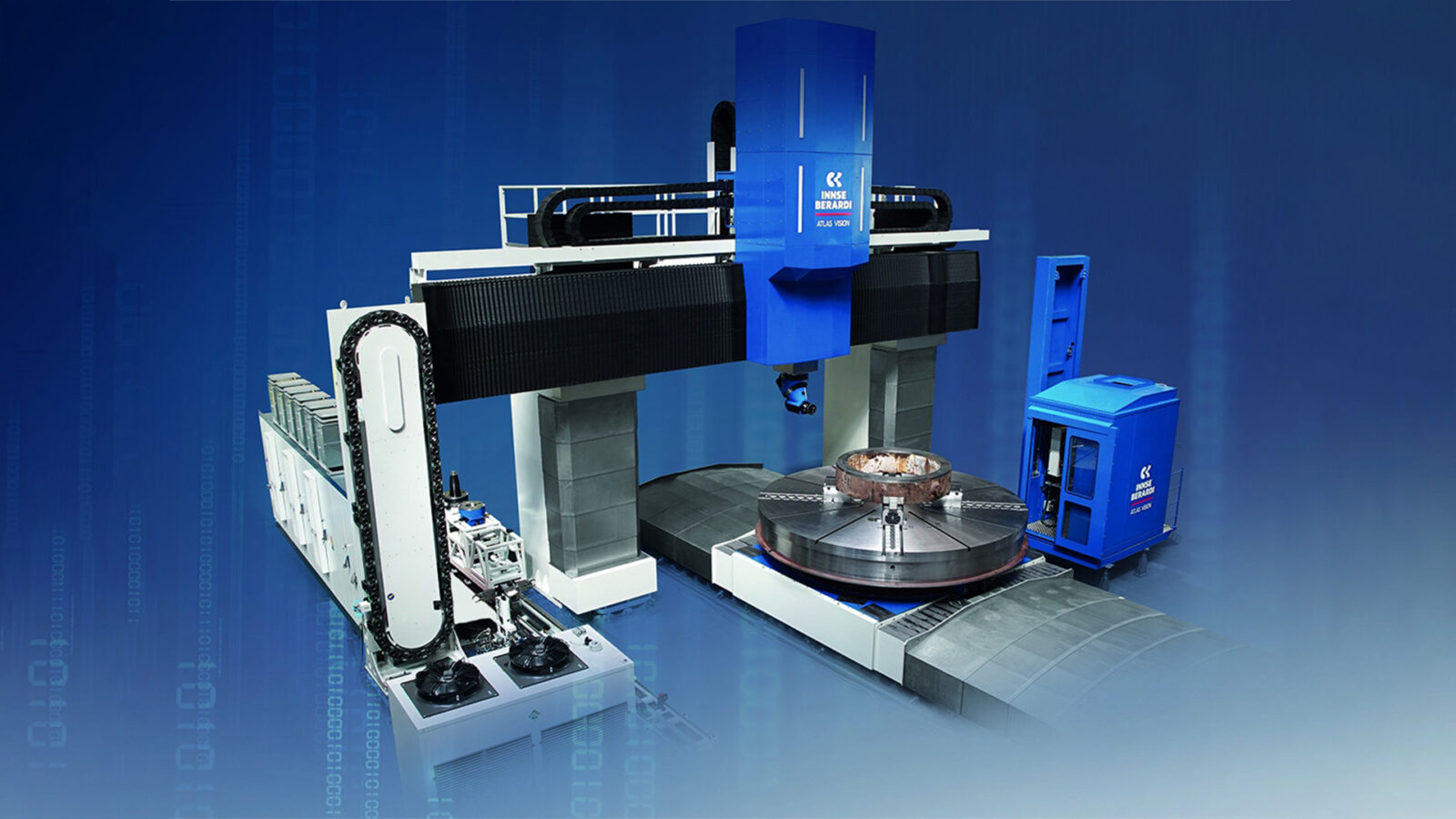

Atlas Vision
Family of high speed vertical milling centres, with linear rolling guideways. Innse-Berardi’s innovative flexible design concept is the basis of these machines.
Contact the team
The core parts of all machines are identical: crossbeam, ram and attachments. The flexible, modular design offers 4 different configurations:
P Planomiller type – fixed portal
G Gantry type – lower rails
Atlas Vision GU Gantry type – Upper rails
Atlas Vision P-W Type
Both, Atlas Vision as well as Atlas Hydro can be equipped optionally with Turning Tables for Turning, Boring, Milling, Turn-Milling and Grinding. The full range is featuring hydrostatic main bearings.
A complete range of advanced attachments provides the optimum solution for the different application requirements.
The modular design covers a broad range of different sizes:
Max. turning diameter up to 5,000 mm
Turning table diameter up to 4,000 mm
Turning table load up to 50 ton
Turning table speed up to 200 rpm
Turning table power up to 150 kW
Distance between columns: 2,800 up to 10,000 (mm)
RAM vertical travel (Z-axis): 1,500 – 2,000 – 2,600 (mm)
RAM section: 500 x 500 – 630 x 630 (mm)
Spindle power: 40 up to 60 (kW)
Torque: 1,200 – 1,850 – 2,500 (Nm)
Axis: 3+2 or 5
W-axis: Fixed or moving crossrail
