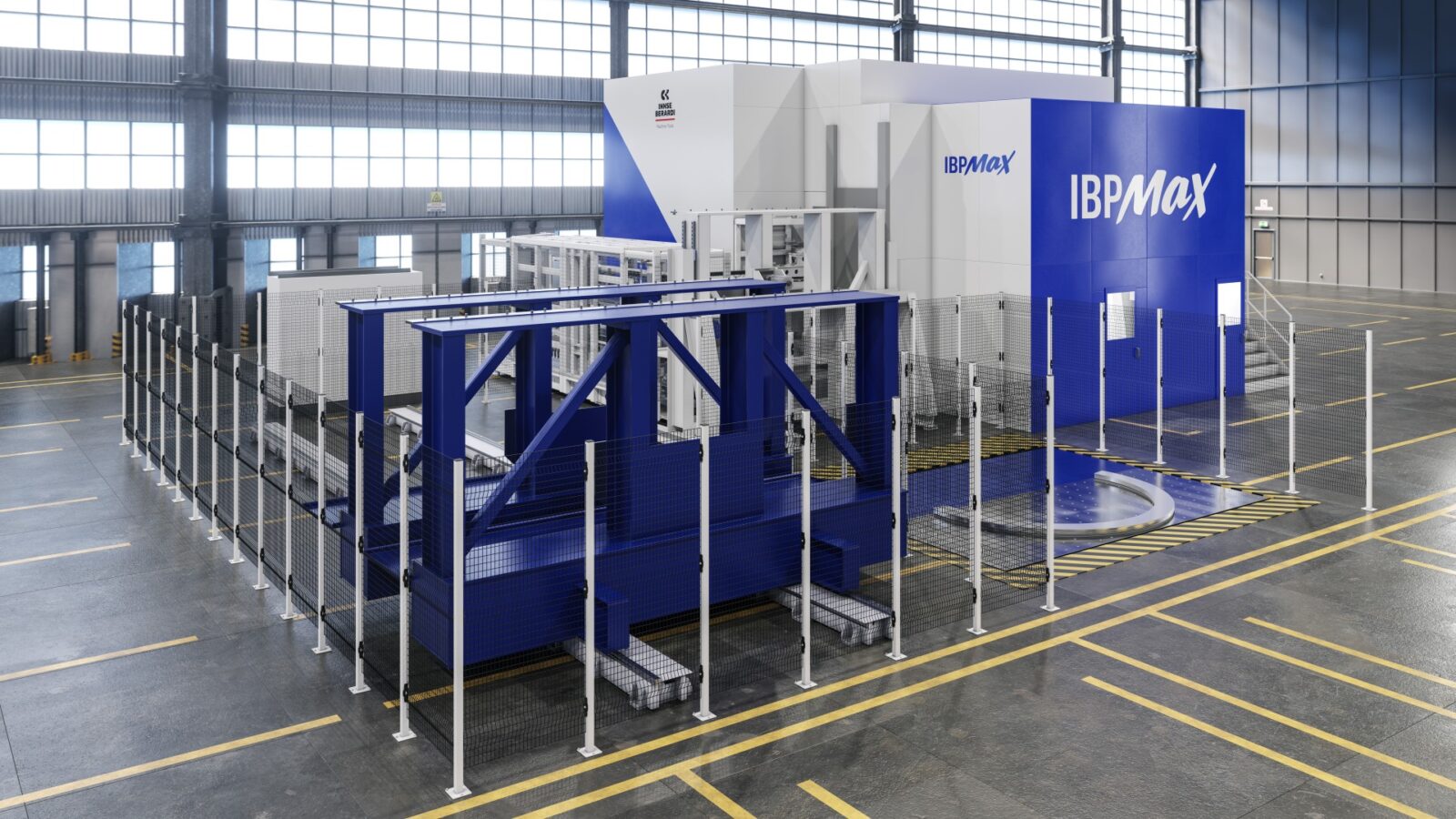

IBPMax®S
Horizontal Machining Center Dedicated to Aluminum Processing
Developed for machining large aerospace aluminium structural components, IBPMax® S combines dynamic performance, high spindle power and high accuracy. Its new ABC head with advanced kinematics allows multiaxial machining with limited rotary movements that significantly reduces finishing cycle times.
Contact the team
- Advanced Kinematics Head with A-B axes + optional C-axis
- Up to +40% productivity
- Optimized thermal stability for high machining accuracy
- Minimized deflections on all axes thanks to its structure
- Optimized material removal volume, with reduced vibrations and minimal tool wear
- Optimal vibration damping thanks to hydrostatic technology
- Full enclosure for complete chip containment
- High-rigidity enclosed structure for optimal pallet support
- Z-axis with Box-in-Box configuration
- Gantry-type X-axis for superior structural rigidity
Technical features IBPMax®S
| X-axis travel | From 4350 mm up to 7350 mm + extension up to 2350 mm |
| Vertical Y-axis travel | From 2200 mm up to 3750 mm |
| Z-axis travel | 750 mm |
TABM-E Head
| Spindle torque (S1) | 66 Nm |
| Spindle power (S1) | 125 kW |
| Max. speed | 30,000 rpm |
| A-axis machining torque | 970 Nm |
| A-axis machining stroke | +50° / -130° |
| B-axis machining torque | 970 Nm |
| B-axis machining stroke | ±50° |
| Optional C-axis machining torque | 970 Nm |
| Optional C-axis machining stroke | ±420° |
