IBPMax®T

Horizontal Machining Center for Titanium and Hard-to-Machine Materials

We designed IBPMax® T to deliver high static and dynamic positioning accuracy at elevated speeds and accelerations, ensuring consistent material removal rates throughout the entire working area.

Contact the team

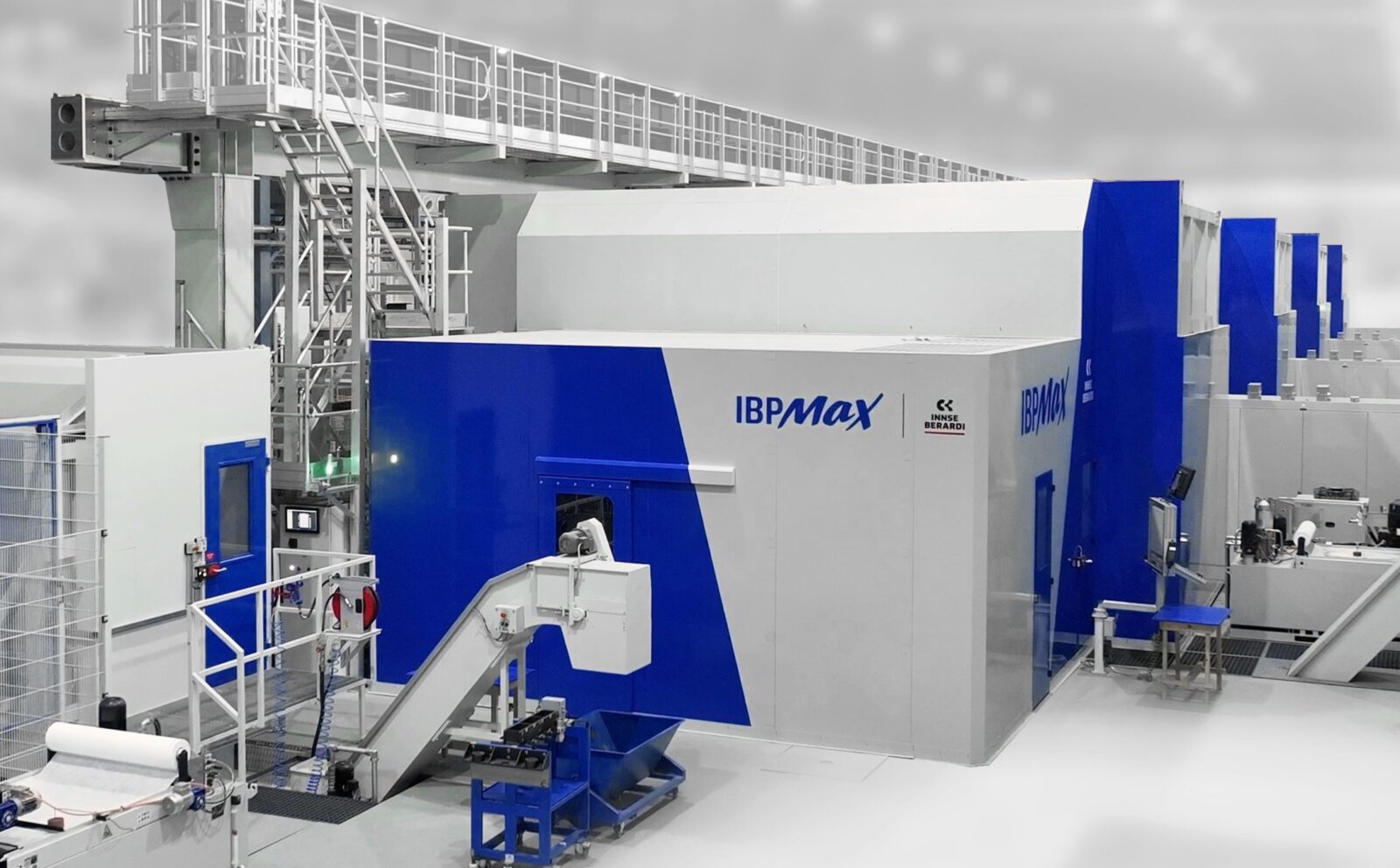

IBPMax T
  • Patented Kinematic configuration
  • High torque and power motors
  • Minimized deflections on all axes thanks to its structure
  • Optimal vibration damping thanks to hydrostatic technology
  • Optimized material removal volume, with reduced vibrations and minimal tool wear
  • Multiple optical scales and dual geared motor sets
  • Full enclosure for complete chip containment
  • Hydrostatic guideways on all axes
  • Thermo-symmetrical structure designed without a RAM
  • The distinctive features of the TE-400 head, equipped with a high-torque electrospindle

Technical features IBPMax®T

X-axis travel 4300 – 5300 – 6300 mm
Vertical Y-axis travel 2200 – 3000 mm
Z-axis travel (horizontal profiler) 1000 – 1500 mm
Z-axis travel (rototraversing table) 2000 – 3000 mm

TE-400 Fork Head technical features

Torque (S1) 713 – 1000 – 1400 Nm
Power (S1) 86 – 120 kW
Max. speed 8000 – 6000 – 4500 rpm
Taper size HSK-A-100
C-axis machining torque 9000 – 17000 Nm
A-axis machining torque 9001 – 17000 Nm

Innse-Berardi – IBPMax®T
