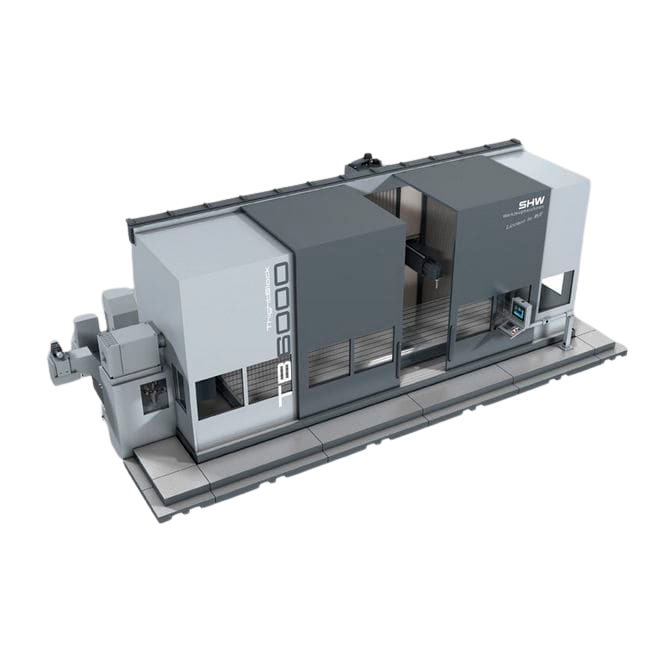

SHW TightBlock 6000

Characteristics: vollumhaust, without foundations, configurable & powerful. Versions: milling machine, lathe/milling machine & pallet changing machine.

Contact the team
SHW TightBlock 600
  • Speed and accuracy
  • Compact Design
  • Configurable table and head options to suit a variety of workloads
  • Shuttle machining options for offline setup
  • Flat Floor Foundation

Milling heads

  • Universal heads
  • Fork milling heads

Workpiece handling

  • Clamping plate
  • Rotary table(s)
  • Turntable(s)
  • Pallet changers

Tool handling

  • Automatic tool changer
  • Tool magazine
  • Tool loading station

CNC Systems

  • Heidenhain
  • Siemens


  • We would like to introduce our extensive range of accessories in a personal discussion.
Travels (max. in mm) X axis (horizontal, longitudinal): 6.000
Y axis (vertical): 2.600
Z axis (horizontal-cross): 1.300
Milling head Universal, orthogonal milling head
Standard swivel range: A axis 180°
C axis 360°
Main drive/motor spindle
Drive power in kW: up to 44/70
Speed range in rpm: up to 8.000/24.000
Speeds of movement
Feeds and rapid traverses
(X, Y, Z) in mm/min: up to 30.000
Acceleration in m/s² 3,5
Tool taper SK 50 BIG-PLUS
HSK 100 A DIN 69893
Versions Milling machine
Machine with pallet changer

SHW Werkzeugmaschinen Videos

Suitable for applications in the following sectors




Power Generation

What range of machine sizes fall within your LPM portfolio?

Typically, anything over a 1,500mm envelope. We can offer travelling column and portal gantry machines up to 40m in length. Turning tables run from 1,500mm through to 9,000mm in diameter. For tall components, we can offer standard machines up to 7m, with options to go higher if required.

View more FAQ’s here

Get in touch

If you have any questions about our machines, or interest in setting up a new machining process. Our expert team are more than happy to help.
