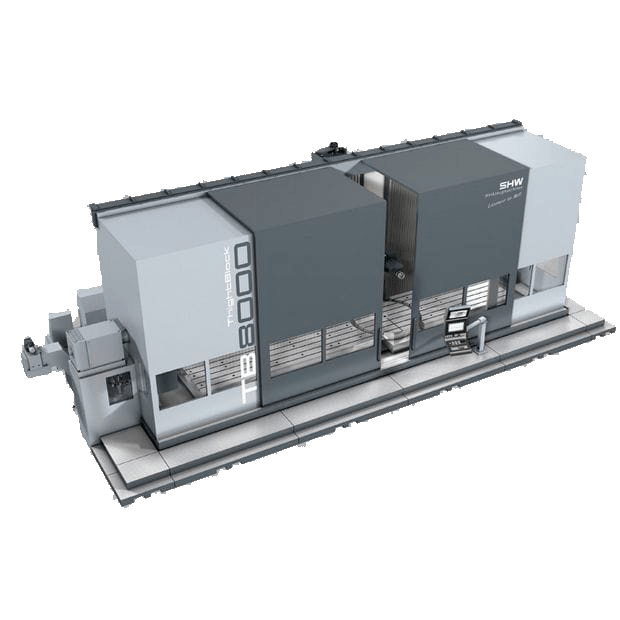

SHW TightBlock 8000
Characteristics: vollumhaust, without foundations, configurable & powerful. Versions: milling machine, lathe/milling machine & pallet changing machine.
Contact the team
- Speed and accuracy
- Compact Design
- Configurable table and head options to suit a variety of workloads
- Shuttle machining options for offline setup
- Flat Floor Foundation
Milling heads
- Universal heads
- Fork milling heads
Workpiece handling
- Clamping plate
- Rotary table(s)
- Turntable(s)
- Pallet changers
Tool handling
- Automatic tool changer
- Tool magazine
- Tool loading station
CNC Systems
- Heidenhain
- Siemens
Accessories
- We would like to introduce our extensive range of accessories in a personal discussion.
| Travels (max. in mm) | X axis (horizontal, longitudinal): 8.000 | |
| Y axis (vertical): 3.100 | ||
| Z axis (horizontal-cross): 1.500 | ||
| Milling head | Universal, orthogonal milling head | |
| Standard swivel range: A axis 180° | ||
| C axis 360° | ||
| Main drive/motor spindle | Drive power in kW: up to 55/70 | |
| Speed range in rpm: up to 8.000/24.000 | ||
| Speeds of movement | Feeds and rapid traverses | |
| (X, Y, Z) in mm/min: up to 30.000 | ||
| Acceleration in m/s² 3,5 | ||
| Tool taper | SK 50 BIG-PLUS | |
| HSK 100 A DIN 69893 | ||
| Versions | Milling machine | |
| Mill-Turn-machine | ||
| Machine with pallet changer |
