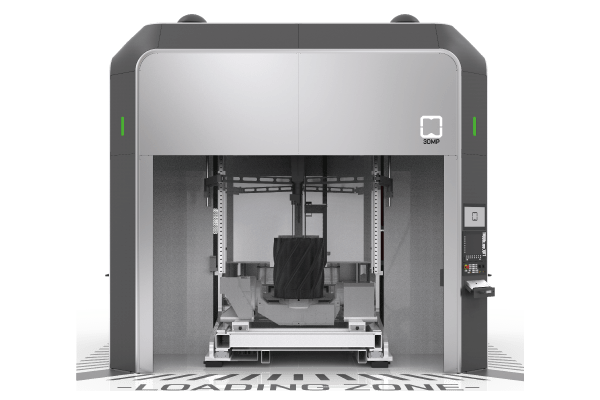

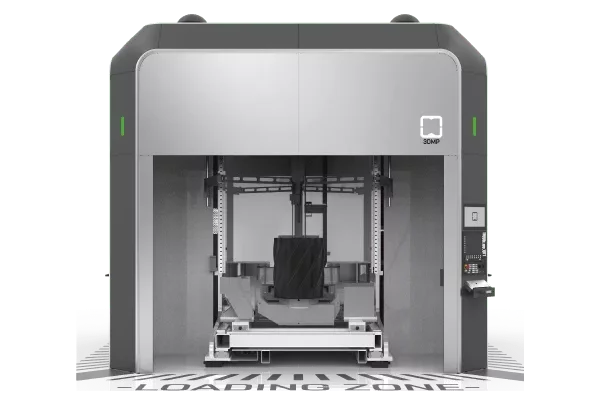

The arc 605 combines the technically mature and proven arc-welding method with the CAD drawings of the product designers and engineers in a completely new production system. 5 motion axes offer maximum flexibility in terms of the component volume and enable the additive production of high-quality metal parts up to 0.8 m³ with a maximum mass of 500 kg.
Contact the teamWorking space | Travel path (x - y - z) in mm 1 100 - 1 400 - 1 720 | |
Max. size of producible parts | (ø - z) in mm 900 - 700 | |
Linear axes | Linear speed (x - y - z) in m/min 25 - 25 - 25 | |
Unloading Travel System (y) in mm 1 450 | ||
Components | Power source Fronius TPS 4000 CMT with wire feed unit VR1550 and Robacta-torch | |
with Fronius Explorer for complete process data acquisition | ||
Control SIEMENS 840Dsl | ||
Interface HMI via control panel and machine operating panel with additional | ||
industrial keyboard and monitor for process observation | ||
Data acquisition Process data acquisition via an integrated Beckhoff-Industry- PC and | ||
graphical user interface for parameter selection and adjustment | ||
Electrical cabinet 2 control cabinet units for measuring and power electronics | ||
Cooling | 4 kW cooling capacity | |
Welding table | Title arc605-welding table with integrated cooling system | |
Max. dimension cooling plate | (ø) in mm 800 | |
Max. table payload in kg | 420 | |
Swiveling range in ° (degree) | 100/10 | |
Rotating range in ° (degree) | 360 | |
Rotational speed A-axis in min | 1:15 | |
Rotational speed C-axis in min | 1:36 | |
Outer machine dimensions | (depth x width x height) in mm 4 500 x 4 500 x 4 500 | |
Power connection in A 1 x 63 | ||
Compressed air in bar 1 x 6 | ||
Weight in kg 16 000 (mass with max. part weight) |
