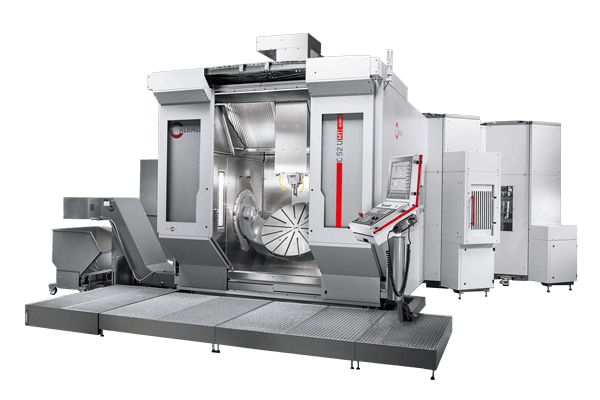

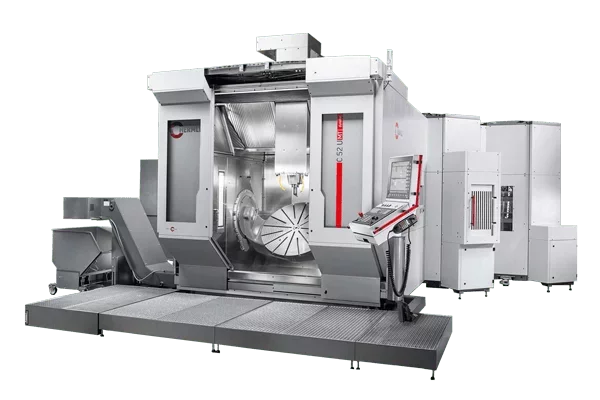

Hermle C52
The C 52 machining centre is a flexible multitalent with an especially large working area on a very small installation area. With the C 52, workpieces weighing up to 2000 kg can be machined in 5 axes simultaneously – with unbeatable precision and accuracy. The C 52 sets new standards: These standards are particularly valued in demanding applications, for instance in the medical, aerospace and automotive industries. In short: wherever the highest precision and maximum efficiency are required.
Contact the team
Ample dimensions, high-performance spindle drives and many useful innovations for practical work turn the C 52 / C 52 U MT machining centre into a top performer.
| Traverse path | 1000 x 1100 x 750 mm | |
| Body | dia. 1000 / H 810 | |
| Collision circle | dia. 1290 mm | |
| Max. vertical table clearance | 950 m | |
| Speed | 9000/12000/15000/18000 1/min | |
| Rapid traverse linear X-Y-Z | 60–60–55 m/min | |
| Swivelling rotary table | dia. 1150 x 900 mm | |
| Max. table load | 2000 kg |
