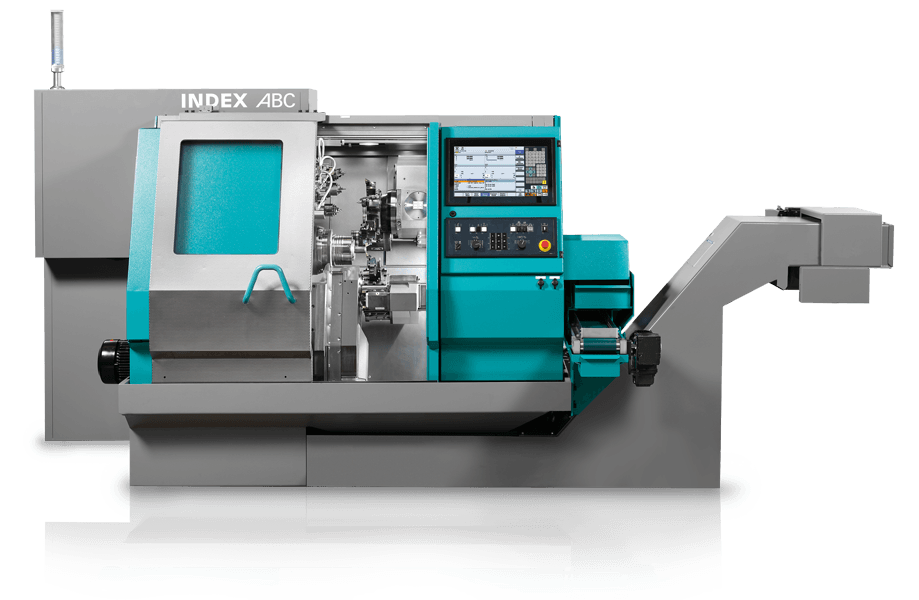

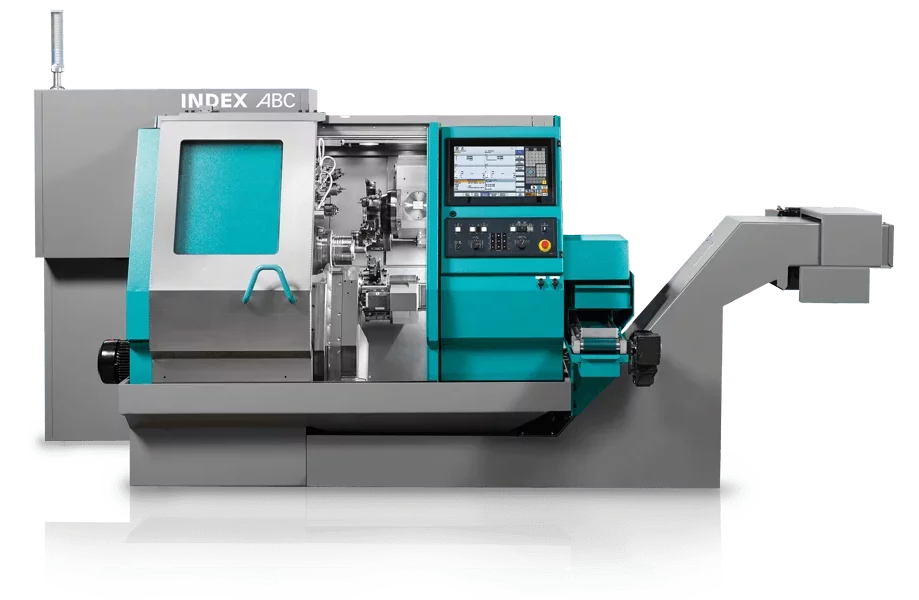

Index ABC
For machining simple to highly complex parts in small to large lot sizes, the INDEX ABC with a Siemens S840D sl or Fanuc 31i-B control always provides for economic and productive solutions. The production turning machine INDEX ABC produces for you simple automatic turned parts just as well as complex CNC turned parts. You work with high flexibility, deliver best quality and produce economically. The possibilities are almost unlimited. The technical equipment is designed to meet your needs: There are up to 19 tools available with which you can completely produce your workpieces on one machine
Contact the team
- Compact design and high performance with minimal floor space requirements
- Reduced cycle time through dynamic performance and simultaneous machining with up to 3 tools
- Live tools can be used on all tool holders
- 65 (60) mm spindle clearance
- 6,000 rpm max. speed
- 27 (29) kW max. power
- 145 Nm max. torque
- Produces simple and complex automatic and NC-turned parts fast, highly flexibly and economically
- Up to 19 tools are available for highly flexible machining
- Live tools for both turrets
- Strong performance data with small space requirement
- Siemens S840D sl or Fanuc 31i-B control offers economic and productive solutions at any time
- Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and INDEXC200-4D based on Siemens S840D sl
- Spindle clearance: up to 65 mm
- Reduced cycle time through a highly dynamic work spindle and simultaneous machining with up to 3 tools
- Live tools can be used on all tool holders
| Working range | Turning length mm 280 | |
| Main spindle | Spindle clearance mm 65 | |
| Max. bar feeder mm 80 | ||
| Max. speed rpm 6,000 | ||
| Ramp-up time (0-5000 rpm) sec. 1.2 | ||
| Drive power (100%/40% DC) kW 20/27 | ||
| Torque (100%/40% DC) Nm 105/145 | ||
| Upper tool turret | Tool stations (all live) Number 8 (7+synchronous spindle) | |
| Tooling system DIN 69880 mm 25 | ||
| X slide travel, rapid traverse rate, feed force mm / m/min / N 90/27/5,500 | ||
| Y slide travel, rapid traverse rate, feed force mm / m/min / N +/- 50/20/7,000* | ||
| Z slide travel, rapid traverse rate, feed force mm / m/min / N 280/36/5,500 | ||
| Acceleration X/Y/Z m/s2 7/7/8.5 | ||
| Max. speed rpm 6,000 | ||
| Power 25% DC kW 4.2 | ||
| Torque at 25% DC Nm 10 | ||
| Synchronous spindle | Max. speed rpm 4,500 | |
| Power 25% DC kW 4.2 | ||
| Torque at 25% DC Nm 10 | ||
| Alignment and indexing unit deg. 7.5 pitch angle | ||
| Hydraulic ejecting and flushing unit discharge stroke mm 42 | ||
| Back working attachment | Tool stations Number 5 (optional 2) | |
| Live tools max. Number 2 | ||
| Max. speed rpm 6,000 | ||
| Power 25% DC kW 4.5 | ||
| Torque at 25% DC Nm 8 | ||
| Lower tool turret | Tool stations (all live) Number 6 | |
| X slide travel, rapid traverse rate, feed force mm / m/min / N 80/27/8,300 | ||
| Z slide travel, rapid traverse rate, feed force mm / m/min / N 81/36/5,500 | ||
| Acceleration X/Z m/s2 7/8.5 | ||
| Max. speed rpm 6,000 | ||
| Power 25% DC kW 4.2 | ||
| Torque at 25% DC Nm 10 | ||
| Max. speed rpm 6,000 | ||
| Power 25% DC kW 5.2 | ||
| General data | Weight kg 2,500 | |
| Connected power kW 12-34 kW, 15-43 kV, 25-80 A, 400 V, 50/60 Hz | ||
| Control | Siemens S840D sl or FANUC 31i-B |
