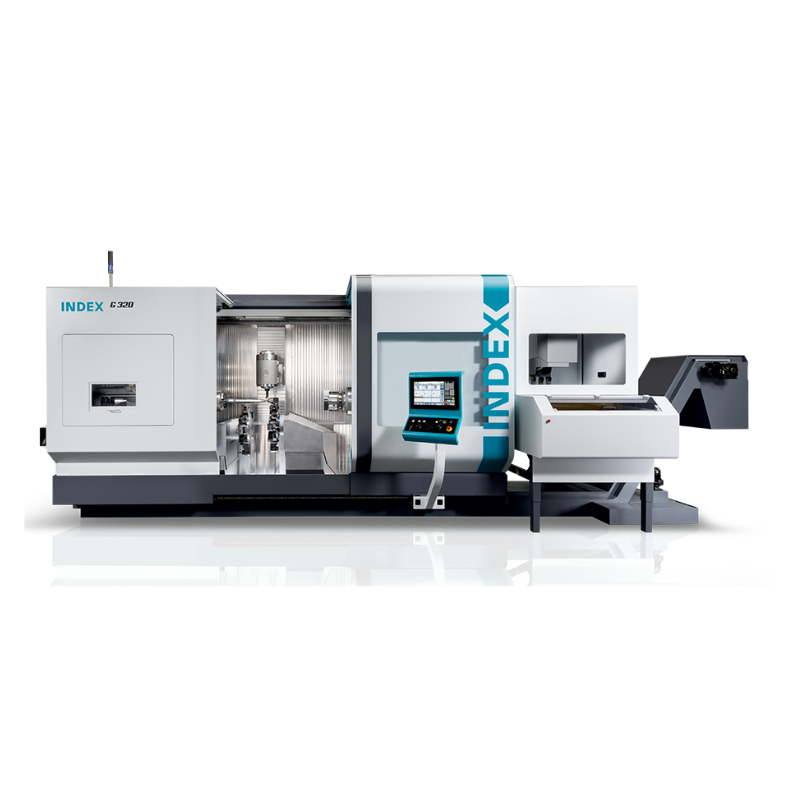

The INDEX G320 features a powerful motor milling spindle capable of simultaneous 5-axis machining. The ergonomic setup and operating concept played a major role in the new design. All the relevant components are easily accessible for operating and maintenance personnel. Optionally, an integrated workpiece handling system matched to the machining processes can be used for loading and unloading shaft and flange parts. Furthermore, the modular robot cell iXcenter is available for all machines in this series, for flexible feeding and discharging of blanks and finished parts.

Contact the team

Benefits Features Specifications

High thermal and mechanical stability
High acceleration and fast rapid traverse rates up to 50 m/mm

Identical main and counter spindles with spindle clearance Ø 102 mm
Chuck up to Ø 250 mm (Ø 315 mm)
3 tool carriers for up to 141 tools
Powerful motor milling spindle with proven Y/B quill kinematics for complex 5-axis milling operations (G320)
Sophisticated work area concept for turning lengths up to 1,400 mm and variable machining options

Working range	Turning length mm 1,400
Main spindle, counter spindle	Bar capacity mm 102
	Speed max.rpm 4,000
	Power at 100% / 40% kW 44 / 59
	Torque at 100% / 40% Nm 525 / 715
	Chuck diameter mm 250 (315)
	C axis resolution degree 0.001
Upper Tooling Carrier	Machine G300
	Tooling system VDI30 // VDI40
	Number of stations 15 // 12
	Speed max. rpm 7,200 // 5,400
	Torque at 25% Nm 25 // 30
	Slide travel X, rapid traverse, feed force mm / m/min / N 280 / 30 / 9.000
	Slide travel Y, rapid traverse, feed force mm / m/min / N +/-80 / 20 / 10.000
	Slide travel Z, rapid traverse, feed force mm / m/min / N1,400 / 50 / 10,000
Motor milling spindle	Machine G320
	Tooling system HSK-T63 // Capto-C6
	Speed max. rpm 18,000 / 12,000
	Power max. kW 16 / 16.6
	Torque at 25% Nm 72/95 // 72/95
	Slide travel X, rapid traverse, feed force mm / m/min / N 620 / 30 / 9,000
	Slide travel Y, rapid traverse, feed force mm / m/min / N +135/-115 // 20 // 10,000
	Slide travel Z, rapid traverse, feed force mm / m/min / N 1,400 / 50 / 10,000
	B axis swivel range, rapid traverse rate degrees/rpm
Tool carrier, bottom left/right	Machine G300 / G320
	Tooling system VDI30 // VDI40
	Number of stations 15 // 12
	Speed max. rpm 7,200 // 5,400
	Torque at 25% Nm 25 // 30
	Slide travel X, rapid traverse, feed force mm / m/min / N 180 / 30 / 9,000
	Slide travel Y, rapid traverse, feed force mm / m/min / N +/-60 / 20 / 10,000
	Slide travel Z, rapid traverse, feed force mm / m/min / N 1,490 / 50 / 10,000
Tool magazine	Machine G320
	Tooling system HSK-T63 / Capto-C6
	Number of stations 56 / 111
	Tool weight max. kg 8
	Tool diameter max. mm 125
	Tool length max.mm 400
Turret steady rest (optional)	Clamping range mm 20 - 101
Workpiece handling unit (optional)	Workpiece weight max. kg 20
	Max. workpiece diameter, shaft mm 120
	Max. workpiece diameter, flange mm 200
General	Length x width x height mm 4,470 x 2,962 x 2,700
	Weight kg 23,000
	Connecting power kW 112
Control	iXpanel - i4.0 ready \| Basis Siemens S840D sl
