HHV DUO

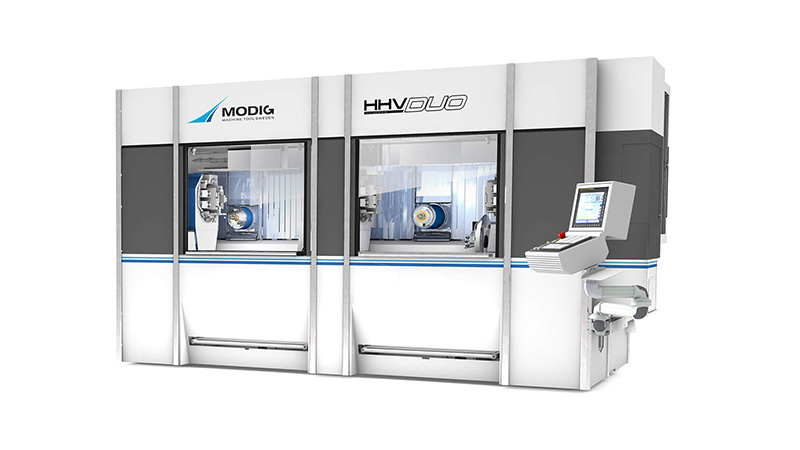

The HHV DUO builds on the HHV platform but incorporates two spindles for the increased need for higher output. A 2 x 4-axis horizontal machining center with two or three rotary tables with options for larger rotary tables for bigger and heavier extrusions. The HHV DUO provides outstanding production rate capabilities and completed parts in one setup.
Contact the team
– Double the output in a similar footprint
– Significantly increased productivity
– Twin-spindle configuration
– Suitable for multiple part sizes
– High-speed spindles
– Variety of automated loading solutions
– 2 x 4-axis horizontal machining center
– 2 or 3 rotary tables with options for larger rotary tables
– Throughput is between 1,5-1,7 times faster than the single spindle HHV
– Complete parts in one setup
– Low-cost fixturing
Travels
X-Axis: 60” (1524 mm)
Y-Axis: 20” (508 mm)
Z-Axis: 10” (254 mm)
U1-Axis: 46” (1168.4 mm)
B-Axis (optional): +/-15°
A1/A2-Axis: +/- 190°
Max Part Cross Section
Bar (options for larger bar size available): 5 x 5” (127 x 127 mm)
Extrusion (options for larger bar size available): 6 x 10” (152.4 x 254 mm)
Rotary Chunks
Feed rates: 0-60 rpm
Jaw changes system: Quick change 1min/rotary chuck
Number of rotary tables: 2 or 3
Tool Changer
Number of tools (standard): 55
Tool taper: HSK-A63
Tool changing time: 8 sec/chip to chip
Feed Rates
X-Y-Z-U – axes: 0 – 2,400 in/min
A-Axis, A1 and A2: 60 rpm/min
B-Axis (optional): 60 rpm/min
Acceleration
Acceleration: 32 ft/square second
