HHV2
The HHV 2 is a high-performance horizontal machining center with 2 rotary tables, developed for machining bar and extrusion components in one setup. It delivers high production rates with minimal material waste. It is ideal for short repetitive runs, nesting, or high-volume production.
Contact the team
– Complete bar and extrusion machine in one setup
– Better chip flow – from horizontal machining
– Reduced cycle time by up to 40-70% compared to standard machining centers
– Minimised material waste for cost savings
– No special foundation is required
– Full automation options available
– Roughing, semi-finish and finishing mode
– Horizontal high-velocity machining
– Handles bar and extrusion parts
– Quick-change rotary chuck system
– Automated material handling
Travels
X-Axis: 60” (1524 mm)
Y-Axis: 20” (508 mm)
Z-Axis: 10” (254 mm)
U1-Axis: 46” (1168.4 mm)
B-Axis (optional): +/-15°
A1/A2-Axis: 190°
Max Part Cross Section
Bar (options for larger bar size available): 5×5”
Extrusion (options for larger bar size available): 6×10”
Tool Changer
Number of tools (standard): 55
Tool taper: HSK-A63
Tool changing time: 8 sec/chip to chip
Feed Rates
X-Y-Z-axes: 0-2,400 in/min
A-Axis, A1 and A2: 60 rpm/min
B-Axis (optional): 60 rpm/min
Acceleration
Acceleration: 32 ft/square second

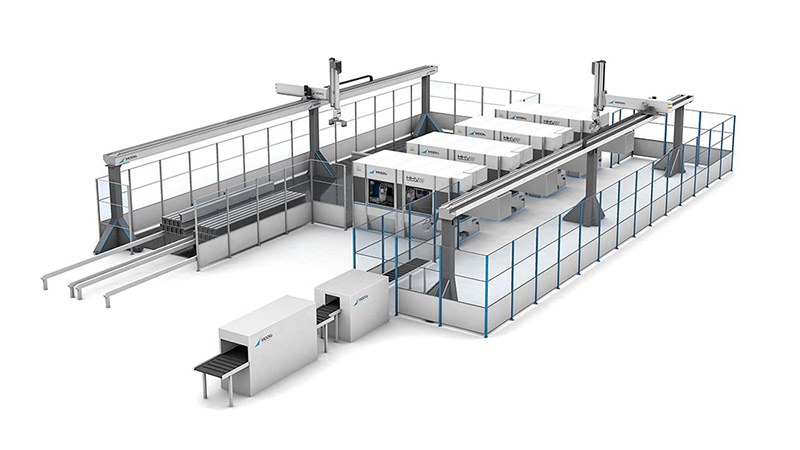

Modig HHV2
HHV 2 and HHV 3 designates the number of rotary tables.
