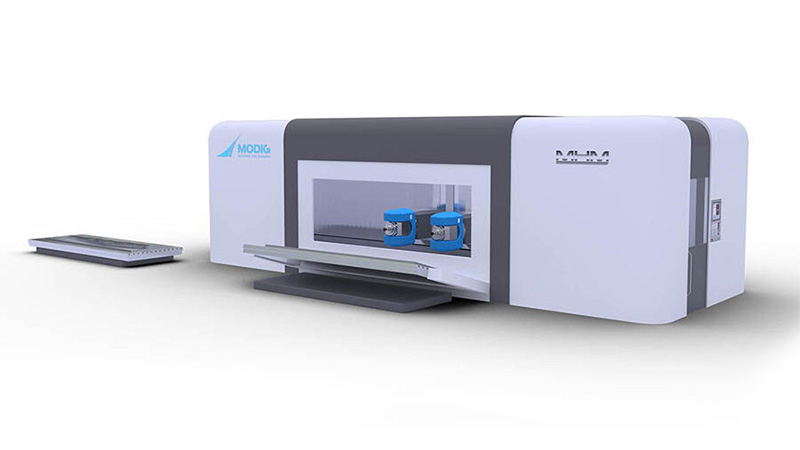

MHM
The MHM is a 5-axis high-speed horizontal machining center engineered to handle high-volume production requirements efficiently, particularly in large-scale component manufacturing.
Contact the team
– Streamlined workflow for bigger parts
– Sturdy build for heavy-duty tasks
– Consistent quality in high-volume runs
– 1 or 2 spindle options
– 80% higher output at the same operational cost
– Enhanced precision and long-term reliability.
– Maximized efficiency, delivering amplified value to your operations.
– Horizontal machining center available in single- or dual-spindle configurations.
– Speeds and powers up to 20,000 RPM and 201 HP (150 kW).
– Advanced control systems: Fanuc 30i B+ or Siemens One.
– Sliding or tilting pallet loading system for seamless operation.
Travels
X-Axis: 165.3 / 244 / 323” (4198.62 / 6197.6 / 8204.2 mm)
Y-Axis: 39.5 / 59 / 79 / 98.5” (1003.3 / 1498.6 / 2006.6 / 2501.9 mm)
Z-Axis: 27.5” (698.5 mm)
A-Axis: +/-110°
C-Axis: +/-360°
Pallet Size
X-axis: 157.5 / 236 / 315” (4000.5 / 5994.4 / 8001 mm)
Y-axis: 39.5-59-79-98.5”
Aluminium Spindle:
Speed: up to 20,000 rpm
Power S1: up to 201 hp
Torque S1: up to 70 ft-lbs
Tool Changer
Number of tools: 120
Tool taper: HSK-A63 / HSK-A63 / 80/HSK-A100
Feed Rates
X-Y-Z- axes: 2,400 in/min
A and C-axes: 420 degrees/sec
Acceleration
X-Y-Z- axes: 22.9 ft/sq sec
A and C-axes: 2,500 degrees/sq sec
