Adelbert Haas Multigrind® CB

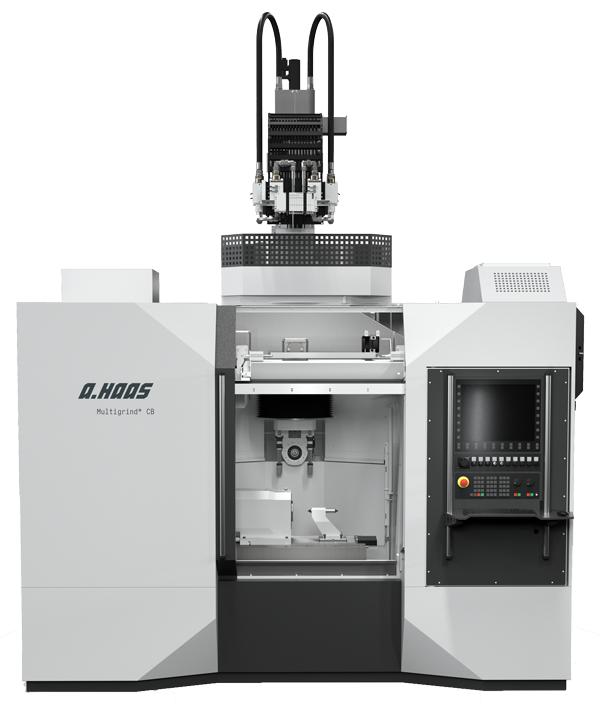

The first machine with a Multicube design – the first modern 5-axis grinding center from Adelbert Haas. A multi-tasker and individual solutions combined. For larger workpieces, more complex processes and proven Adelbert Haas quality. Integrated probing technology, continuous dressing, extensive automation and numerous special Adelbert Haas applications make it the benchmark in professional grinding.
Contact the team
The top of the Multigrind® CB can be opened with a flick of the wrist, allowing parts to be loaded from above with a crane.
- All workpieces that aren’t round or flat can be machined on a Multigrind® CB.
- All industries that need to manufacture extremely high-precision parts with complex shapes value the Multigrind®
- CB as a reliable and economical grinding center.
- All industries that need to manufacture extremely high-precision parts with complex shapes value the Multigrind®
- CB as a reliable and economical grinding center.
- The axis travel range is remarkable – optionally up to 1,200 mm along the X-axis, 410 mm along the Y-axis, and 500 mm along the Z-axis.
- Large aero-engine turbine blades can be machined just as easily as huge hob cutters needed to manufacture the windlass on ships.
| Interface HSK 50 E | Power 100 % / 40 % ED 11.5 / 14.5 kW | |
| Standard rotation speed 8,000 rpm | ||
| Interface HSK 50 E | Power 100 % / 40 % ED 11 / 12 kW | |
| Standard rotation speed 18,000 rpm | ||
| Interface HSK 50 E | Power 100 % / 40 % ED 21.0 / 27.5 kW | |
| Standard rotation speed 35,000 rpm | ||
| Interface HSK 80 E | Power 100 % / 40 % ED 30 / 30 kW | |
| Rotation speed 12,000 rpm | ||
| Interface HSK 80 E | Power 100 % / S3-60 % ED 58 / 48 kW | |
| Rotation speed 12,000 rpm | ||
| High frequency spindle Available upon request | ||
| Single table axis work range | X-axis 700 mm | |
| Optional 1,200 mm | ||
| Y-axis 410 mm | ||
| Z-axis 500 mm | ||
| C-axis rotation range 320° | ||
| Machine table | Clamping surface 1,200 x 500 mm | |
| Optional 1,400 x 500 mm | ||
| T-slots: Quantity 9 | ||
| Distance 50 mm | ||
| Width 12H7 mm | ||
| Double table axis work range | X1-axis (shared travel range) | |
| Horizontal range 930 mm - X1 | ||
| Horizontal range between the tables X1 0 - 355 mm | ||
| X5-axis (separate travel ranges, overlapping) | ||
| Horizontal range table left 700 mm | ||
| Horizontal range table right 1,200 mm" | ||
| "Measuring system | Linear axis resolution 0.0001 mm | |
| Linear axis rapid feed 30,000 mm/min | ||
| Rotary axis resolution 0.001° | ||
| C-axis rotation speed 400 rpm | ||
| Rotary axis (A-axis) | Design 108 | |
| Standard center height 175 mm | ||
| Interface SK 50 oder HSK 80* | ||
| Rotation speed 1,000 rpm | ||
| Optional 2,600 rpm | ||
| Design 140 | ||
| Standard center height 175 mm | ||
| Rotation speed 600 rpm | ||
| Optional 1,200 rpm | ||
| Tool magazine options | Single-wheel tool changer (without coolant nozzles) | |
| Tools: Quantity / Ø 7/300 mm to 16/100 mm | ||
| Double-wheel tool changer (without coolant nozzles) | ||
| Tools: Quantity / Ø 12/300 mm to 22/100 mm | ||
| Tool magazine HSK 80 E | ||
| Tools: Quantity / Ø 18/300 mm to 42/240 mm | ||
| Coolant nozzles: Quantity 15 Spaces | ||
| Workpiece dimensions depending on the table version | Ø 340 - 500 mm Length 700 - 1000 mm | |
| Electrical supply | 400 V/50 Hz fused with 80 A | |
| Control | Siemens continuous path control system Sinumerik 840D sl | |
| Pneumatics | Operating pressure 6 - 10 bar | |
| Total weight | depending on equipment from 9,500 kg | |
| Space required | Length x width 3,000 x 2,650 mm | |
| Height during operation 3,550 mm |
