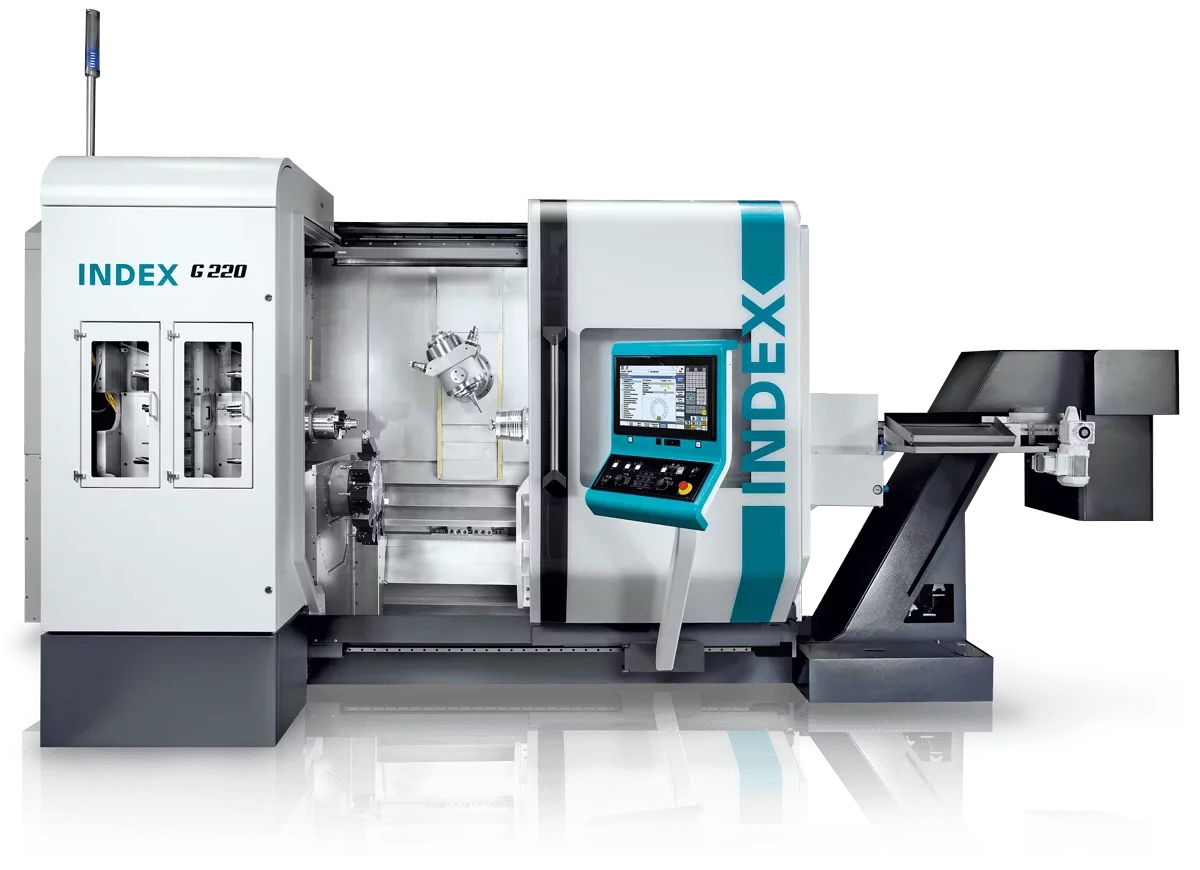

The generous work area of the G220 forms the basis for equal implementation of milling and turning in one machine design. The configuration of the machine is designed to provide a maximum of flexibility independent of the primary use of the machine. The dynamic and powerful motorized milling spindle allows the production of demanding workpieces – even using fiveaxis machining. Moreover, the lower tool turret with a Y-axis and a powerful tool drive ensures the possibility of three-dimensional machining on the main and counter spindle.

Contact the team

Benefits Features Specifications

Fast tool change
High dynamics (up to 55 m/min rapid traverse speed)

The turn-mill center G220 with its dynamic motorized milling spindle is ideal for machining of complex workpieces – up to five-axis machining. With a high degree of rigidity, thermal and dynamic stability and vibration damping – also thanks to the Y/B-axis running in hydrostatic bearings – workpieces can be completely machined from six sides with high productivity and precision.
Generous work area designed for turning/milling or milling/turning
2 powerful, identical motorized spindles (up to 40 kW and 310 Nm)
Lower tool turret with Y-axis (100 mm) and 18 or 12 stations
Simultaneous machining with two tool carriers possible
Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen – based on Siemens S840D sl

Working range	Turning length mm 1000 1000
Main spindle	Spindle clearance mm 65 90
	Spindle nose ISO 702/1 Z140 A8
	Max. speed rpm 5,000 4,000
	Drive power (100%/40%) kW 31.5 / 32 40 / 40
	Torque (100%/40%) Nm 125 / 170 190 / 310
	Chuck diameter mm 210 250
	C-axis resolution Deg. 0.001 0.001
Counter spindle	Spindle clearance mm 65 90
	Spindle nose ISO 702/1 Z140 A8
	Max. speed rpm 5,000 3,500
	Drive power (100%/40%) kW 31.5 / 32 29 / 40
	Torque (100%/40%) Nm 125 / 170 142 / 207
	C-axis resolution Deg. 0.001 0.001
	Slide travel Z, rapid traverse rate, feed force mm / m/min / N 1040 / 55 / 6.400
Tailstock	Quill DIN 2079 SK30
	Slide travel Z mm 1080
	Max pressure force N 8,000
Upper tool carrier Motorized milling spindle	Tooling system HSK-T40 HSK-T63
	Max. speed rpm 18,000 12,000
	Drive power (100%) kW 11 17
	Torque (100%/25%) Nm 19 / 30 62 / 90
	Slide travel X, rapid traverse rate, feed force mm / m/min / N 355 / 30 / 9.050
	Slide travel Y, rapid traverse rate, feed force mm / m/min / N +/- 80 / 15 / 7.850
	Slide travel Z, rapid traverse rate, feed force mm / m/min / N 1040 / 55 / 6.400
	Swivel range B Deg. -50/+230
	Fixed tool locations on MMS 4 x HSK-T40 -
Lower tool carrier	Tooling system DIN ISO 10889 25 x 48 30 x 55
	Number of stations 18 12
	Max. speed rpm 7,200
	Max. drive power, torque (25%) kW / Nm 6 / 18
	Slide travel X, rapid traverse rate, feed force mm / m/min / N 185 / 30 / 7.000
	Slide travel Y, rapid traverse rate, feed force mm / m/min / N +/- 50 / 15 / 7,850
	Slide travel Z, rapid traverse rate, feed force mm / m/min / N 1000 / 55 / 6,400
	Steady rest with sep. slide
	Clamping range mm 12 - 152
	Slide travel Z mm 1000
Gantry-type receiving unit with conveyor belt	Workpiece weight / workpiece length max. kg / mm 7.5 / 400
Tool magazine	Tooling system DIN69893 HSK-T40 HSK-T63
	Tool magazine stations 70 (opt. 140) 50 (opt. 100)
	Max. tool weight kg 3 5
	Chip-to-chip time s 6
Machine dimensions	Length x width x height mm 4325 x 2340 x 2550 4325 x 2350 x 2550
	Weight kg 14,000 *
	Connected power kW 68
Control	INDEX C200 sl (based on Siemens S840D sl)
