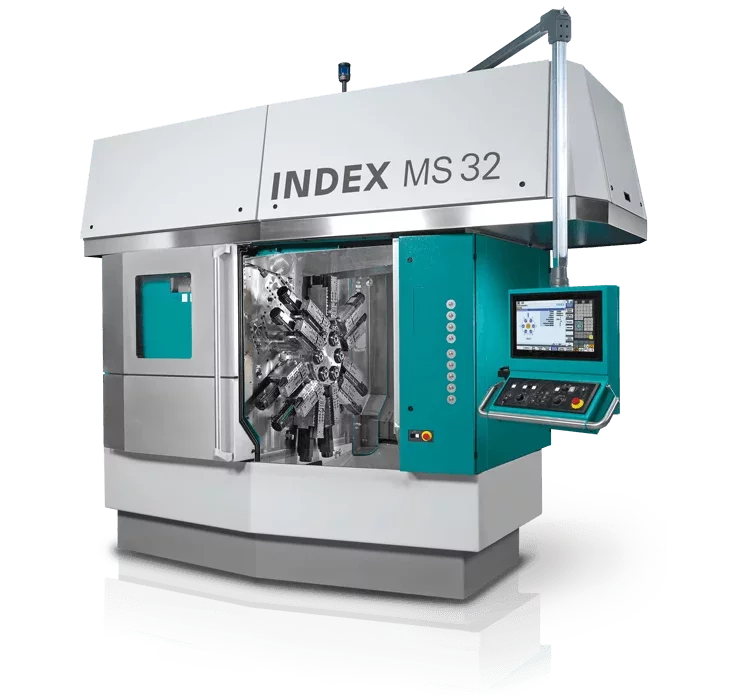

Index MS32
With the INDEX MS32-6 multi-spindle automatic lathe, which can be configured according to individual needs, INDEX offers a machine concept that meets all requirements and the highest demands. Six main spindles, up to two swiveling synchronized spindles and up to twelve tool carriers, which can be freely configured as cross slides X/Z, grooving slides X or drilling slides Z, allow highly productive production possibilities. The new INDEX quick-clamping system, patented W-serration and ergonomic front-opening work area minimize setup times. Maximum dynamic response and minimum secondary processes and downtime further reduce cost per part.
Contact the team
- Flexible tool slide platform reduces changeover times.
- C and Y axes, together with live tools, can also be implemented to enable a range of machining processes, including off-centre drilling, threading, contouring, hobbing and polygonal turning.
- By presetting tooling for drilling, milling and polygonal turning off of the machine, setup times can be reduced.
- Hydraulic units alternate between tools enabling the efficient use of separate tools for roughing and finishing in the same position.
- Highly-dynamic slides with sliding guide (X-axis)
- Non-wearing Z-axis due to quills with hydrodynamic support
Front-opening machine for bar machining - Chuck part machining with loading and unloading by robots
Synchronous spindles with C-axis - A maximum of 3 tools for rear end machining, up to 2 live tools possible.
- Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and INDEXC200-4D based on Siemens S840D sl
| Work spindles 6 | ||
| Speed * rpm 8,000 | ||
| Power (at 100%/25% duty cycle) kW 10.5/19 | ||
| Torque (at 100%/25% duty cycle) Nm 22/40 | ||
| Tool carrier / cross slide max. 12 | ||
| Slide travel X mm 72 | ||
| Slide travel Z mm 100 | ||
| Slide travel Y mm 34 | ||
| Tool carrier / grooving slide max. 5 | ||
| Slide travel X mm 72 | ||
| Tool carrier / boring slide max. 5 | ||
| Slide travel Z mm 100 | ||
| Swiveling synchronized spindles max. 2 | ||
| Max. clamping diameter mm 40 | ||
| Speed Nmax. rpm 8,000 | ||
| Speed Nrated rpm 6,000 | ||
| Power (at 100%/40% duty cycle) and Nrated kW 10/14 | ||
| Torque (at 100% / 40% duty cycle) and Nnom. Nm 16 / 22 | ||
| Synchronized spindle swivel angle degrees 126 / 132 | ||
| Slide travel Z mm 130 | ||
| Max. number of tools for rear-end machining 6 | ||
| Back-boring slide | ||
| Tool carriers for rear-end machining 1/2 | ||
| Slide travel X mm 82 | ||
| Number of tools for rear-end machining 3 of which are live 2 | ||
| Dimensions, mass, and connected power (at maximum equipment level, without bar guide or loading magazine) | ||
| Weight kg approx. 6,800 | ||
| Length mm 3,365 | ||
| Width mm 1,966 | ||
| Height mm 2,854 | ||
| Connected power 34-74 kW, 40-87 kVA, 400 V, 50 Hz | ||
| or 460-480 V, 60 Hz | ||
| Control | ||
| Siemens S840D Solution Line, with teleservice, spindle stop, C-axis as standard | ||
| Options | Polygon turning, gear hobbing, tool monitoring, Y-axis, transmit function |
