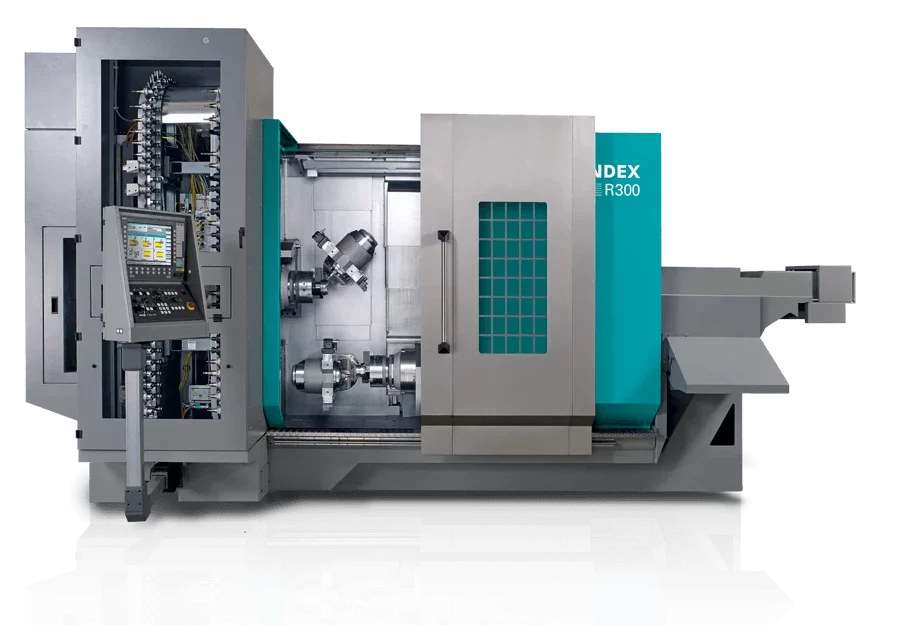

Index R300
With the R series, INDEX is setting the standard for a new generation of turning/milling centers. Two motorized milling spindles perform machining in two independent sub-sysA new dimension in milling and turning RatioLine R300 tems, including 5-axis machining. Both heavy-duty roughing operations and highly accurate fine-turning operations can be performed simultaneously on the main spindle and counter spindle. This parallel use increases productivity significantly compared to conventional designs. New design solutions for optimum stiffness, thermal and dynamic stability, and vibration damping also provide for maximum machining quality.
Contact the team
- With up to 140 magazine stations, tools can be changed in only 6 sec chip-to-chip time on both spindles.
- The tool loading strip allows even more productivity gains by changing 8 tools during machining.
- Shortest change cycles; chip-to-chip time only 6 s.
- Simultaneous and independent loading of both milling spindles possible.
- High degree of functional reliability due to standard tool magazine with chain design.
- 70/140 tool stations (HSK-T63 mounting).
- Change up to 140 tools (HSK-T63) in 6 seconds chip-to-chip time – thereby shortening secondary processing times at both spindles
- Two full 5-axis systems in a turn-mill center
- Extensive automation options – tailored to the individual customer needs
- X travel ranges of up to 780 mm
| Main spindle, counter spindle | Unit Value | |
| Bar capacity mm (inch) 102 (4.01) | ||
| Spindle diameter in front bearing mm (inch) 140 (5.5) | ||
| Spindle nose ISO 702/1 Size 8 | ||
| Chuck diameter mm (inch) 315 (12.4) | ||
| Speed rpm 3500 | ||
| Power at 100% / 40% kW (hp) 47 (63.0) / 52 (84.5) | ||
| Torque at 100% / 40% Nm (ft lbn) 450 (331.9) / 690 (508.9) | ||
| C-axis resolution Degrees 0.001 | ||
| Feed drive of main spindle | Minimum distance for m (inch) 22 (0.9) | |
| Slide travel of Z-axis mm (inch) 610 (24.0) | ||
| Rapid traverse rate m (inch) / min 40 (1574.8) | ||
| Resolution µm 0.02 | ||
| Feed force N 7000 | ||
| Feed drive of counter spindle | Minimum distance for collet mm (inch) 22 (0.9) | |
| Slide travel of Z-axis mm (inch) 610 (24.0) | ||
| Slide travel of X-axis mm (inch) 780 (30.7) | ||
| Rapid traverse rate X, Z m (inch) / min 40 (1574.8) | ||
| Resolution X, Z µm 0.02 | ||
| Feed force X, Z N 7000 | ||
| Tool carrier 1 | Quill diameter mm (inch) 240 (9.5) | |
| Slide travel X mm (inch) 580 (22.8) (80 [3.2] below spindle center) | ||
| Slide travel Y mm (inch) ± 140 (5.5) | ||
| Speed max.rpm 5,400 | ||
| B-axis angle of rotation Degrees 270 | ||
| Brake holding torque B-axis Nm (ft lbn) 3000 (2212.7) | ||
| Tool carrier 2 | Quill diameter mm (inch) 240 (9.5) | |
| Slide travel Y mm (inch) ± 140 (5.5) | ||
| B-axis angle of rotation Degrees 270 | ||
| Brake holding torque B-axis Nm (ft lbn) 3000 (2212.7) | ||
| Motorized milling spindle | Tooling system DIN 69893 HSK-T63 (optional PSC-63) | |
| Holding force of clamping assembly N approx. 24000 | ||
| Maximum speed rpm 9000 | ||
| Power at 100% kW (hp) 24.5 (32.9) | ||
| Torque at 100% / 25% Nm (ft lbn) 65 (47.9) / 95 (70.1) | ||
| Brake holding torque Nm (ft lbn) 400 (295.0) | ||
| Fixed tool stations on tool strips 6 x VDI30 | ||
| Tool magazine | Max. tool length mm (inch) 300 (11.8) | |
| Max. tool diameter mm (inch) 70 (2.6y) (160 [6.3] with limitations) | ||
| Max. tool weight kg (hp) 5 (11.1) | ||
| Chain spacing mm (inch) 75 (3.0) | ||
| Number of tools 70 | ||
| Gantry-type removal unit | Slide travel (Z-axis) mm (inch) 2090 (82.3) | |
| Rapid traverse rate m (inch) / min 60 (2362.2) | ||
| Max. workpiece diameter / length mm (inch) 100 (3.9) / 250 (9.9) (320 (12.6) remnant length) | ||
| Max. workpiece weight kg (Ibs) 15 (33.1) | ||
| Weights and connecting values with max. configuration | Weight kg (Ibs) ca. 18500 (40784.8) (excl. approx. 4200 (9259.3) kg periphery) | |
| Connecting values 114 kW, 135 kVA, 194 A, 400 V, 50/60 Hz | ||
| Control | INDEX C200-4D (based on Siemens S840D sl) |
