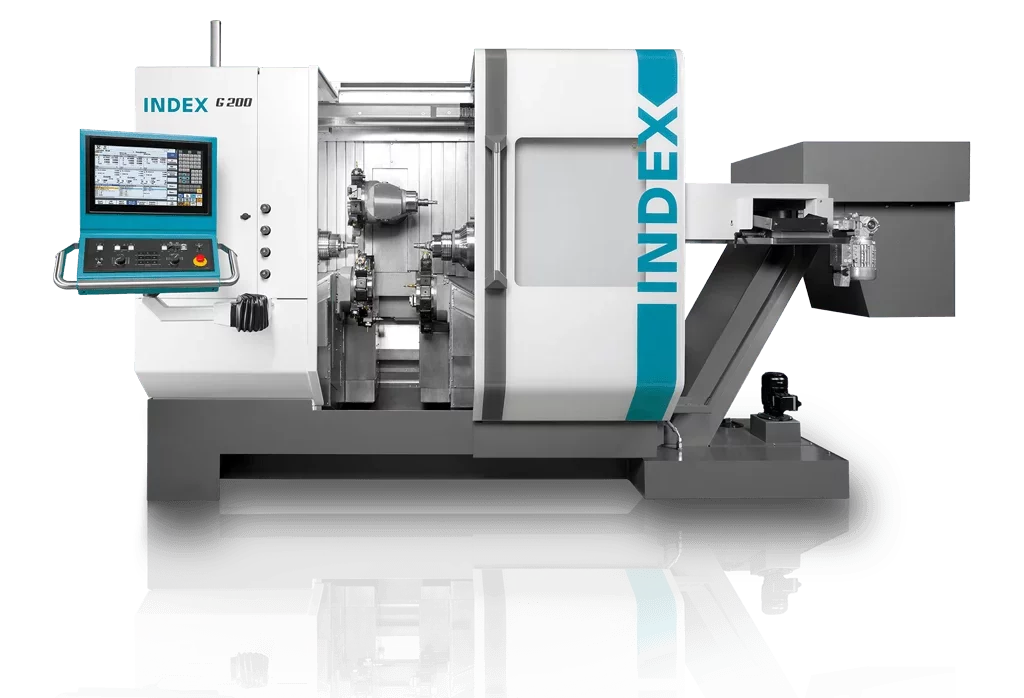

Index G200
The INDEX G200 is equipped with two identical work spindles, three tool turrets, all of which have a Y-axis, and one milling spindle with a 360-degree B-axis. This turn-mill center combines the productivity of an automatc lathe with the ability to perform sophisticated milling operations. The work area, unique in its class, assures with its compact foot print an enormous power density for your economic manufacturing of today and tomorrow. In addition, the vertical work area design with up to three tool carriers and one milling spindle allows optimum process reliability with minimal setup efforts through the convenient tool pool of up to 43 stations (42x VDI25 and 1x HSK-A40).
Contact the team
- Excellent ergonomics for quick setup
- Compact foot print an enormous power density for economic manufacturing
- With a high degree of rigidity, thermal and dynamic stability as well as very good vibration-damping properties.
- The powerful milling spindle, in connection with the Y/B-axis running in hydrodynamic bearings ensures sophisticated drilling or milling operations
- Up to three tool carriers with Y-axis usable on main and counter spindles
- Simultaneous machining with up to 4 tools possible
- Powerful and dynamic milling spindle (360° B-axis, max. 7,200 rpm, 22 kW and 52 Nm, HSK-A40)
- Economic complete machining of parts as well as of bar stock and as of chuck parts
- Incomparably large degrees of freedom in the large work area for turning-milling operations with up to 660 mm turning length
| Working range | Turning length mm 660 | |
| Main spindle, counter spindle | Spindle clearance mm 65 | |
| Spindle diameter in front bearing mm 110 | ||
| Spindle nose ISO 702/1 Size D140 | ||
| Max. speed rpm 6,000 | ||
| Drive power MSP / CSP (100%/40%) kW (31.5 / 32) / (20 / 24) | ||
| Torque (100%/40%) Nm (125 / 170) | ||
| Chuck diameter mm 165 | ||
| Max. rotation diameter mm 550 | ||
| Aligning and indexing unit Deg. 2.5 | ||
| C-axis resolution Deg. 0.001 | ||
| Counter spindle | Slide travel Z, rapid traverse rate, feed force mm / m/min / N 710 / 60 / 6,000 | |
| Minimum distance for collet mm 10 | ||
| Tailstock | Max. distance from spindle zero mm 845 | |
| Max. pressure force N 5,500 | ||
| Turret 1, 2 and 3 | Number of stations 14 | |
| Tooling system DIN69880 25x48 | ||
| Max. speed rpm 7,200 | ||
| Turret 1 Max. drive power / torque (100%) kW / Nm 9 / 16 | ||
| Turret 2 & 3 Max. drive power / torque (25%) kW / Nm 6.5 / 16 | ||
| Milling spindle | Tooling system DIN69893 HSK-A40 | |
| Max. speed rpm 7,200 | ||
| Drive power / torque (25%) kW / Nm 22 / 52 | ||
| Tool carrier 1 | B-axis Continuous torque / maximum torque Nm 340 / approx. 500 | |
| B-axis Swivel angle Deg. 360 | ||
| B-axis Brake holding torque Nm 2000 | ||
| B-axis Angular resolution / swivel angle 180° Deg. / sec. 0.001 / 0.8 | ||
| Slide travel X, rapid traverse rate, feed force mm / m/min / N 230 / 30 / 6,000 | ||
| Slide travel Y, rapid traverse rate, feed force mm / m/min / N +/- 65 / 15 / 10,000 | ||
| Slide travel Z, rapid traverse rate, feed force mm / m/min / N 845 / 50 / 6,000 | ||
| Tool carrier 2 and 3 | Slide travel X, rapid traverse rate, feed force mm / m/min / N 140 / 30 / 6,000 | |
| Slide travel Y, rapid traverse rate, feed force mm / m/min / N +/- 45 / 15 / 10,000 | ||
| Slide travel Z, rapid traverse rate, feed force mm / m/min / N 810 / 50 / 6,000 | ||
| Steady rest with sep. slide | Clamping range mm 10 - 64 | |
| Gantry-type removal unit | Workpiece weight / workpiece length max. kg / mm 5 / 200 | |
| Machine dimensions | Length x width x height mm 5355 x 2235 x 2400 | |
| Weight kg approx. 8500 | ||
| Connected power kW approx. 42 (51 KVA) | ||
| Control | Siemens S840D sl |
