Kingsbury machines
INDEX G300/320
102 mm spindle clearance | 250 mm chuck diameter | 1400 mm turning length
INDEX G400/420
120 mm spindle clearance | 400 mm chuck diameter | 1000 Nm max. torque | 1600 mm / 2300 mm turning length
INDEX G500/520
120 mm spindle clearance | 500 mm chuck diameter | 2000 Nm max. torque | 1600 / 2300 mm turning length

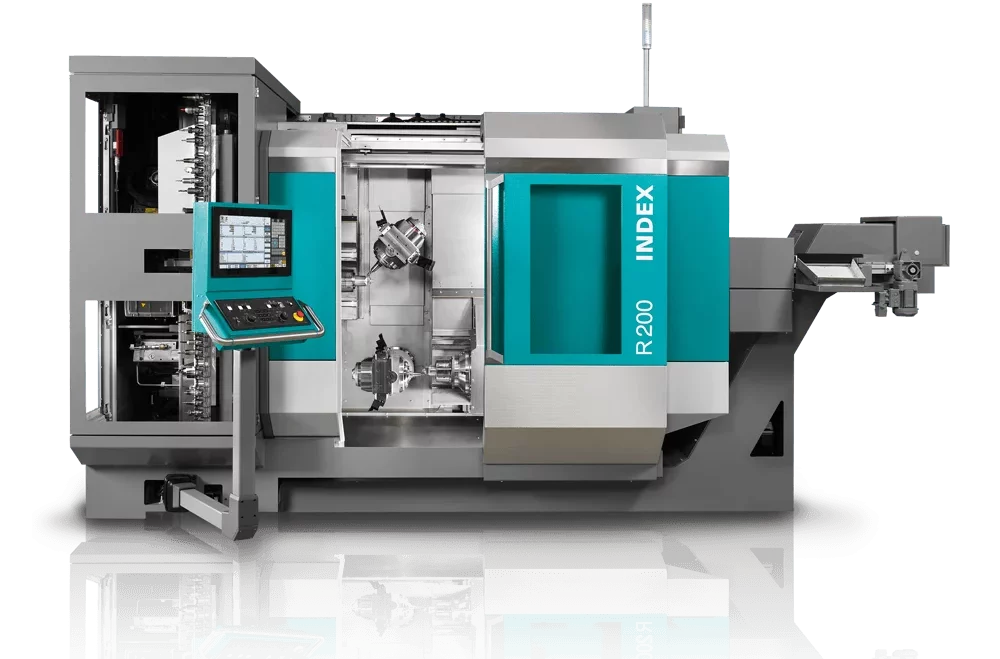

Index R200
65 mm bar diameter | 5,000 rpm speed | 24 kW max. power | 190 Nm max. toque
SHW PowerSpeed Cube
Index R300
102 mm bar diameter | 3,500 rpm max. speed | 52 kW max. power | 690 Nm max. toque
Hermle C 22
Traverse paths:
450 x 600 x 330 mm
Body: dia. 450 / H 370
Traub TNX65
65 mm max. spindle clearance | 175 mm max. chuck diameter | 650 mm turning length | Milling unit or turret selectable
Hermle C 32
Traverse path:
650 x 650 x 500 mm
Body: dia. 650 / H 420
Hermle C 42
Traverse path: 800 x 800 x 550 mm
Body: dia. 800 / H 560
Hermle C 42 uMT
Traverse path: 800 x 800 x 550 mm
Body: dia. 800 / H 560
INDEX ABC
65 mm spindle clearance | 6,000 rpm max. speed | 27 kW max. power | 145 Nm max. toque
